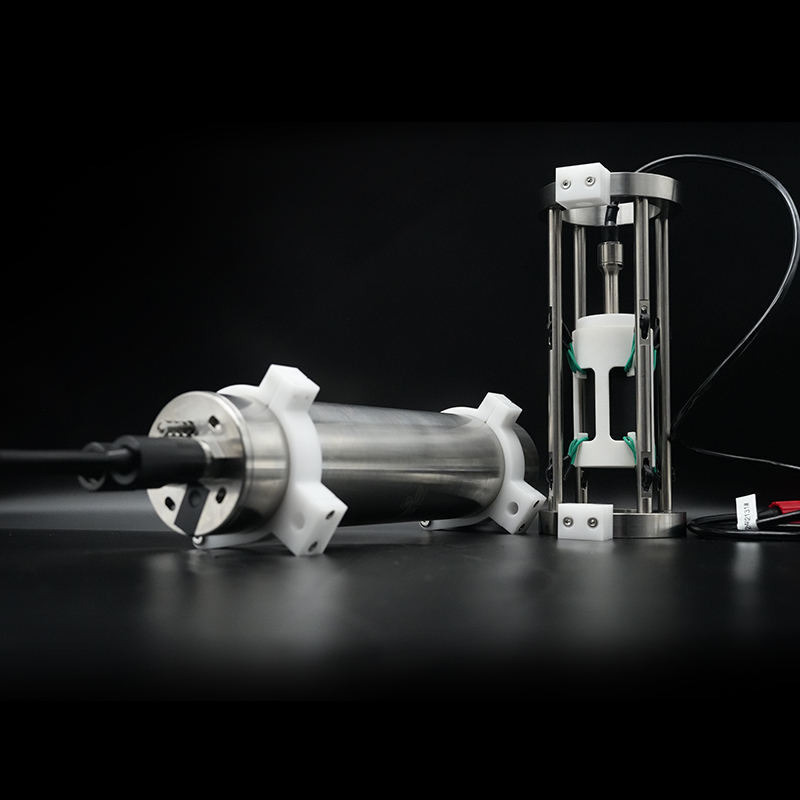

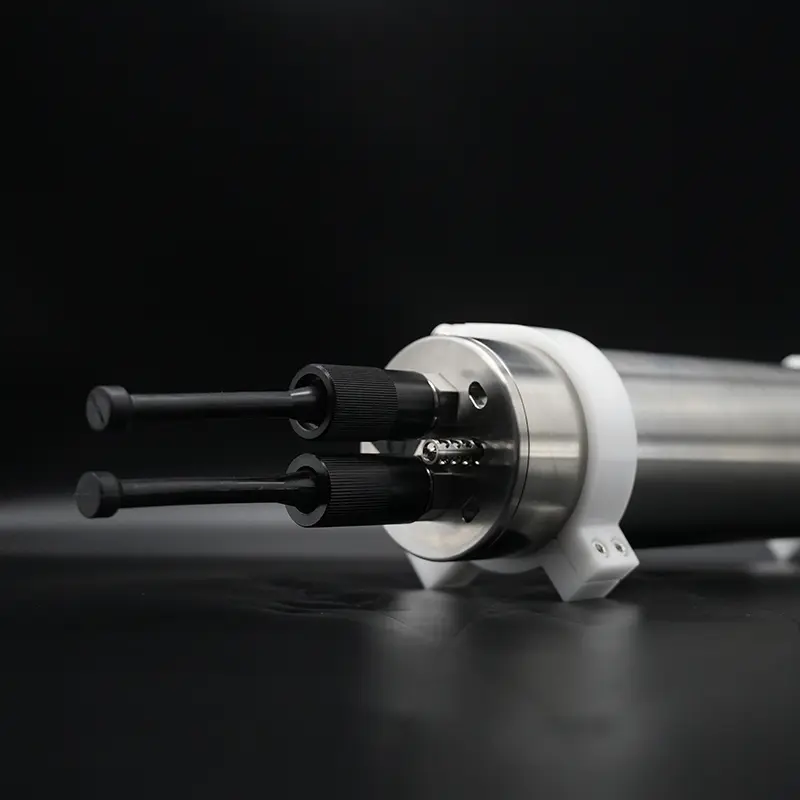

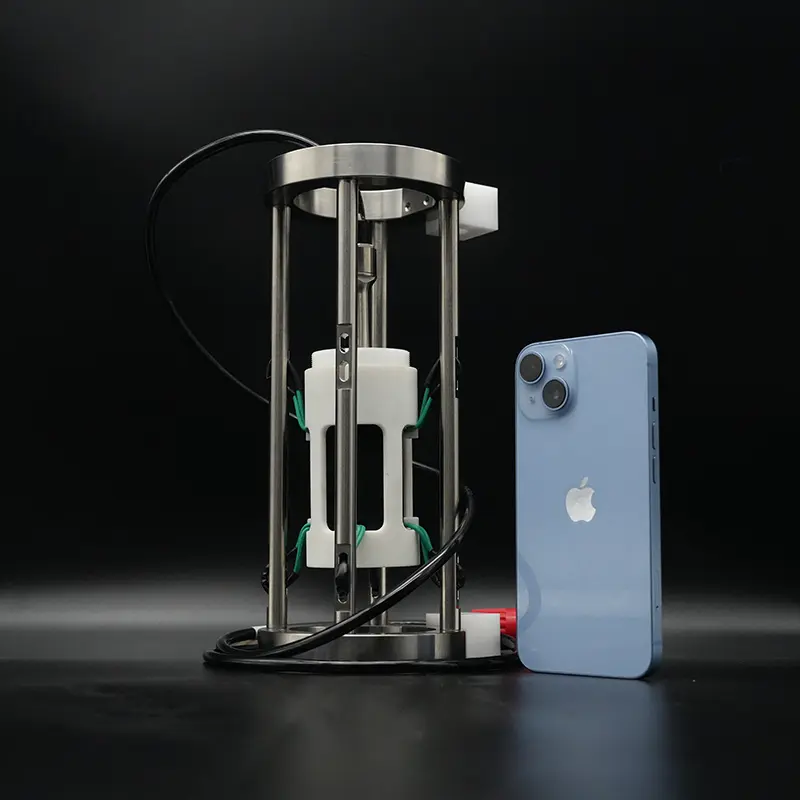

H3-OCEAN-6000 Hydrophone
H3 - OCEAN - 6000 is a low - power consumption, self - contained underwater acoustic data acquisition and recording system suitable for all sea areas.
1. Wide operating frequency band 2. High quantization accuracy 3. Long continuous working time 4. High reliability 5. Strong environmental adaptability 6. Compact size and flexible installation 7. Titanium alloy watertight cabin, capable of operating in deep sea 8. Low self - noise, able to collect noise below sea state 0 9. Equipped with an atomic clock module, enabling synchronous acquisition of multiple units
| Depth Rating: 6000m |
| Working Frequence: 5Hz-20kHz |
| Operating Mode: Self-Contained |
| Working Mode: Continuous working time: ≥1 month |
| Hydrophone Sensitivity: Better than -170dB re 1μPa (including pre-amplifier module) |
| Sampling Rate: Adjustable at 8KHz, 16KHz, 32KHz, 64KHz, 128KHz |
| Interval Sampling: The continuous working time is more than 720 hours. |
| Sampling Quantization Accuracy: 24-bit quantization, dynamic range >100dB |
| Min Noise Spectral Level: <40dB@1kHz |
| Max Gain: 40dB |
| Power Input: 7.2V, 480Wh; <400mW (cont.) |
| Data Download: ≥5MB/s |
| Internal Memory: 512GB SD card |
| Material: Titanium |
| Weight(in air/in water): 4.1 kg (including battery) / 2.1 kg (including battery) |

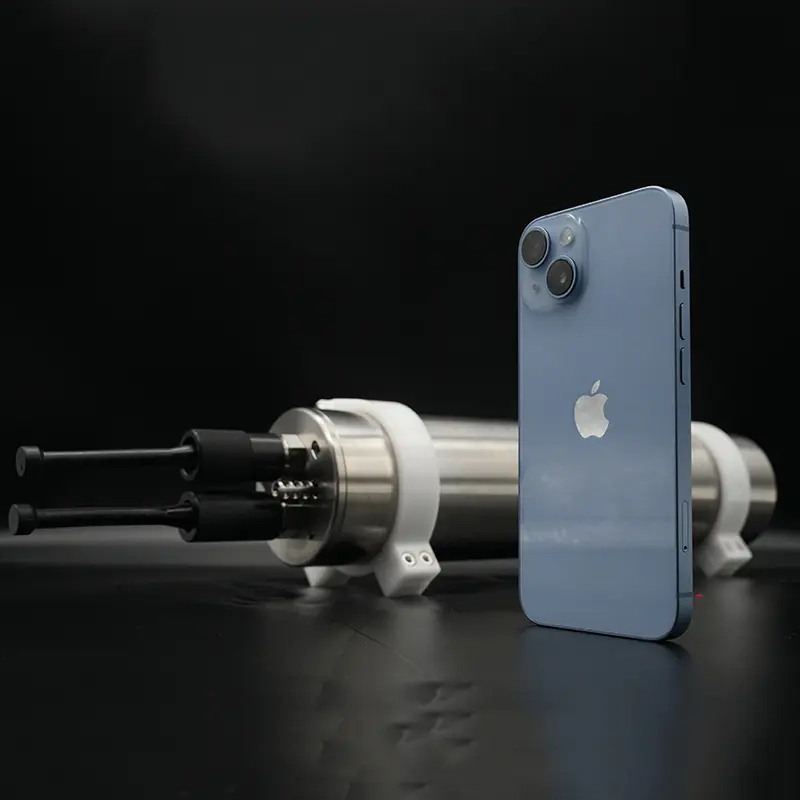

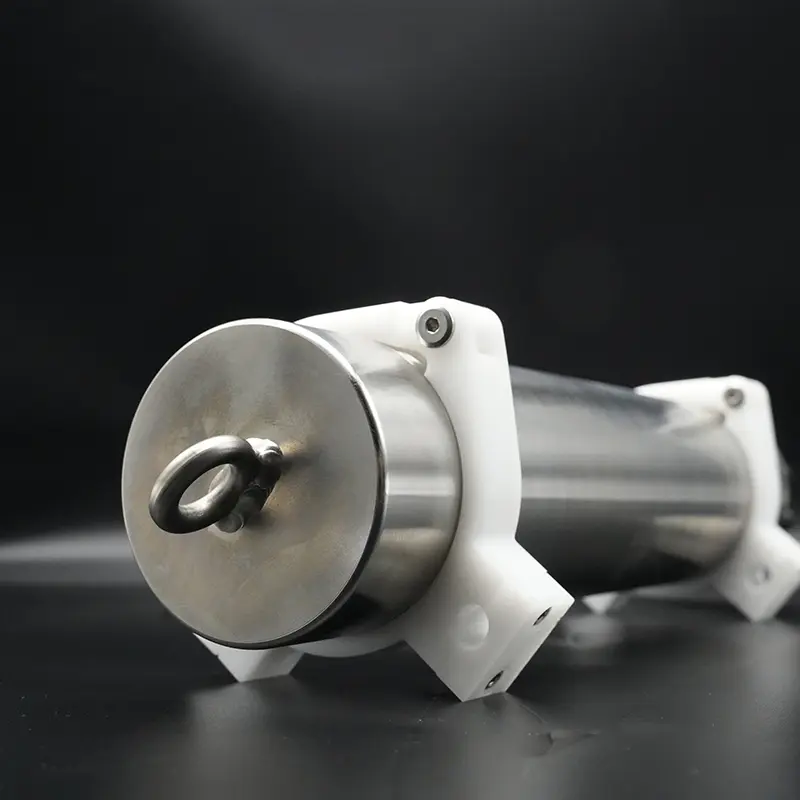

| Dimensions: Hydrophone: Φ40mm×105mm,Main body: Φ74mm×315mm |
H3-OCEAN-6000 SC Hydrophone
Quietly brilliant,Better Price
High-sensitivity deep-sea hydrophones enable underwater acoustic data acquisition/recording. Features: full functionality, superior performance, high reliability, long cycle, wide ocean coverage, flexible modes.
Ultra-low-power signal processing + AD conversion chips balance precision/duration. GJB-compliant QC ensures military-grade quality, meeting marine acoustic data needs.
Light to 4.1 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Port Security
![]()
Fish School Localization
Seismic Exploration
Marine Biology Research
Deepwater oil and gas
Re![]()
newable Energy
Leak Detection
Fisheries andAquaculture
Coastal and Ocean Engineering
Deep-sea Mining
Volcanic Activity Monitoring
En![]()
vironmental Management
