H-ADCP-600K

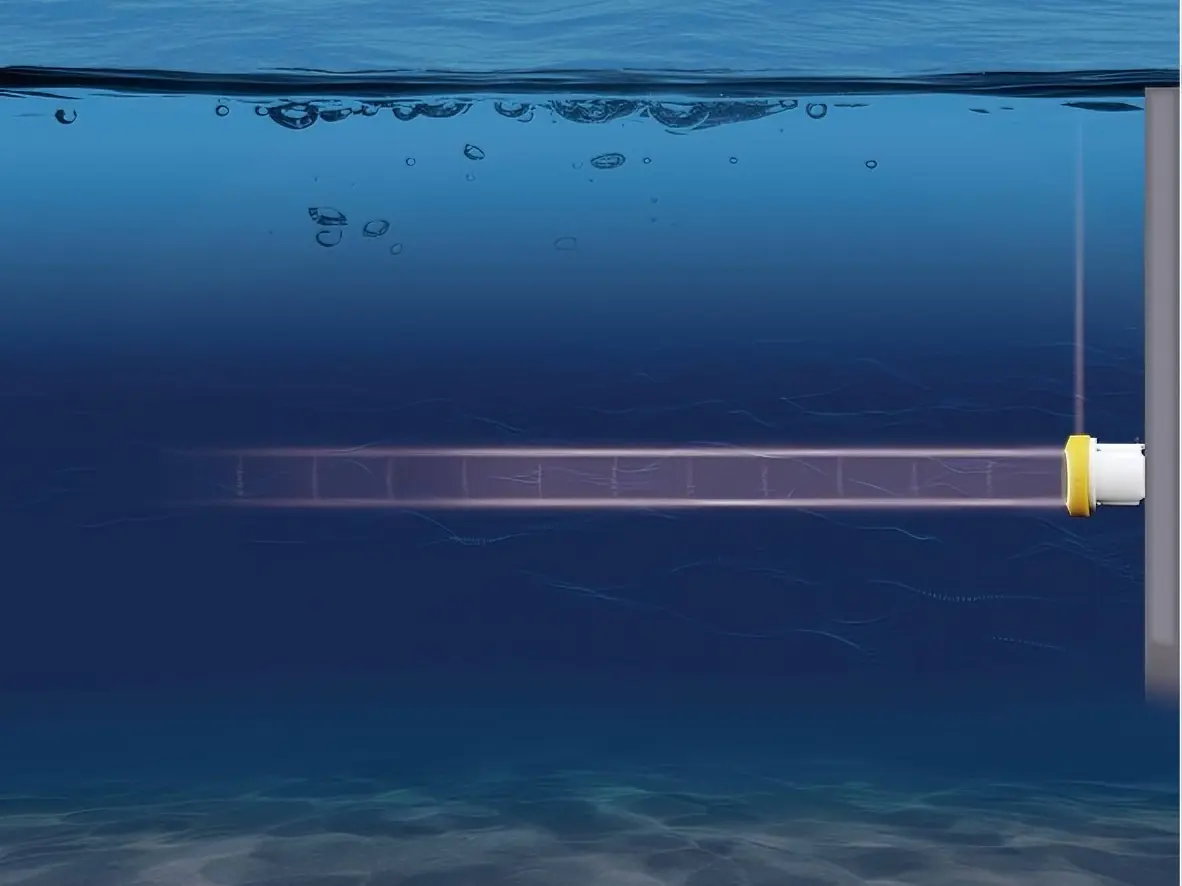

The H-ADCP-600K delivers long-range, high-accuracy horizontal acoustic doppler current profiler.
- Large Range：In broadband working mode, the H-ADCP-600K boasts a maximum horizontal profiling range of up to 120 m.
- High Accuracy：Its velocity measurement accuracy reaches ±0.25% ± 0.2 cm/s.
- Low Power Consumption：Equipped with advanced system power management technology, its sleep power consumption is reduced to the microwatt level.
- High Reliability：The instrument features mature hardware design, ensuring stable and dependable performance.
- WIFI Transmission：It supports RS232, RS422, and WIFI data transmission methods, allowing wireless device connection and data transfer.
| Depth Rating: 50 m (standard) |
| Working Frequence: 600 kHz horizontal beam / 600 kHz central vertical beam |
| Beam Configuration: 3 beams (2×20° horizontal beams / 1×0° central beam) |
| Water Profiling Range: 1~120m |
| Velocity Accuracy: 0.25% ±2mm/s |
| Velocity Resolution: 1mm/s |
| Velocity Range: ±5.0 m/s (Default); ±20.0 m/s (Maximum) |
| Number of Depth Cells: 1 - 260 |
| Depth Cell Size: 0.25-4m |
| Ping Rate: Max 20Hz |
| Sensor: Temperature,Pressure,Attitude |
| Internal Memory: 16 GB Micro SD Card |
| Communications: RS-232、RS-422、WIFI; Baud Rate: 9600-115200 |
| Power Input: 9~18VDC (standard 12V) |
| Power Comsumption: 3.5W (average) |
| Dimensions: Φ300mm×150mm |
| Weight: 5kg (In Air) |
Documents
Applications
- Water Resources & Hydrology
- Marine Engineering
- Environmental Monitoring Systems
- Research Institutes & Laboratories
- Channel and River Measurements
- Ocean Observation Systems
