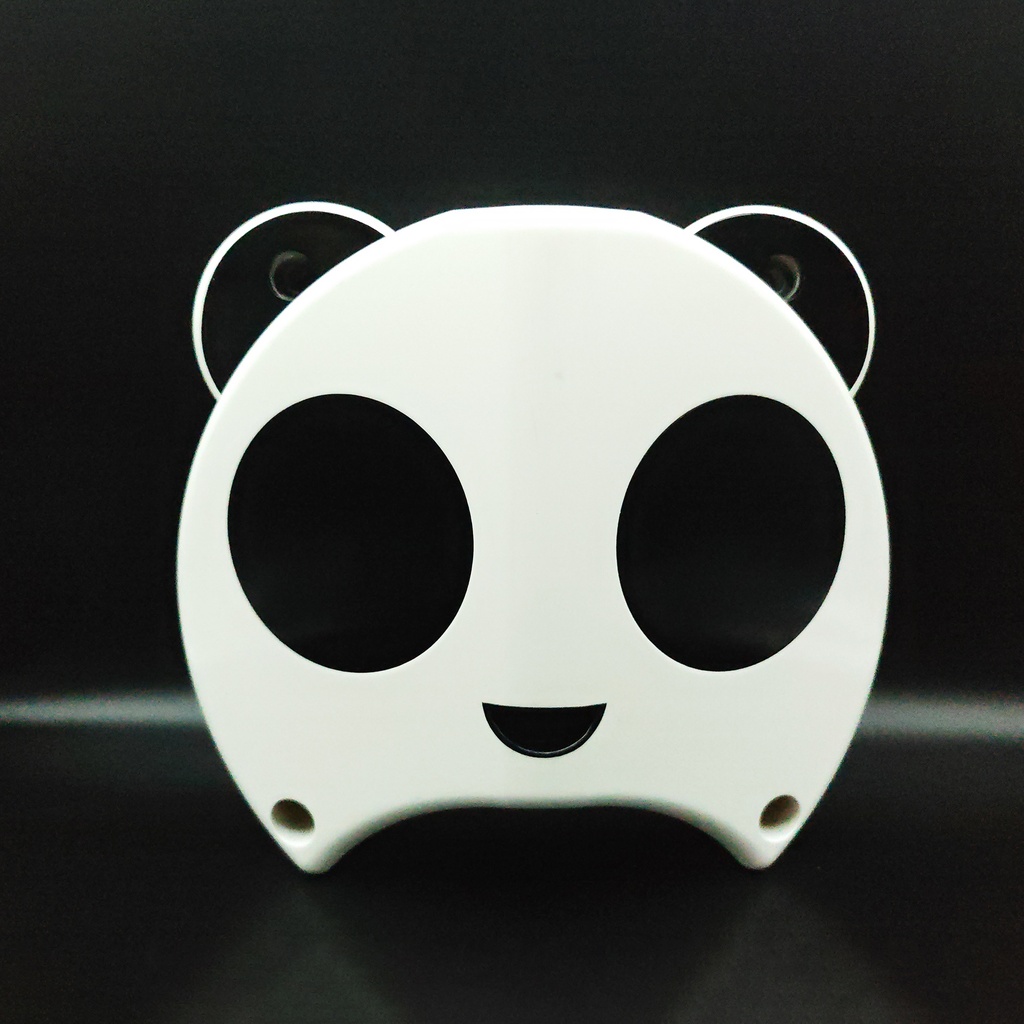

PandaADCP-RM-600K (H-ADCP)
The PandaADCP-RM-600K series ADCPs are HADCP specifically designed for applications of real-time horizontal current profiling in rivers.
The whole series comes standard with POM material.
Smaller,lighter and more reliable.
Smaller,lighter and more reliable.
| Depth Rating: 200m |
| Brand: PandaADCP |
| Working Frequence: 600kHz |
| Operating Mode: Direct-Reading |
| Batteries: No Batteries |
| Max Profiling Range: 90m |
| Velocity Accuracy: ±0.3%±3mm/s |
| Velocity Resolution: 1mm/s |
| Velocity Range: ±5.0 m/s (Default); ±20.0 m/s (Maximum) |
| Number of Depth Cells: 1-255 |
| Ping Rate: 2Hz(typical) |
| Depth Cell Size(High Pricision Mode): 0.5-4m |
| Depth Cell Size(Long Range Mode): 4m |
| Echo Intensity Dynamic Range: 100dB |
| Echo Intensity Precision: ±1.5dB |
| Standard Profiling Modes: High resolution water profiling,Fast sampling |
| Beam Angle: 20° |
| Beam Width: 1.4°Horizontal，5°Vertical |
| Beam Configuration: 2-horizontal beams, 1-vertical beam |
| Internal Memory: 64 GB Micro SD Card |
| Communications: RS-232 or RS-422 |
| Sensor（Water Temperature ）: Range: -5° - 45°C, Accuracy: ±0.1°C |
| Sensor (Pressure): Range: acording to depth rate, Accuracy: ±0.25% Range |
| Sensor (Tilt）: Range: Roll ±180° | Pitch ±90°, Accuracy: < 0.1° RMS, Resolution: 0.01° |
| Operating Temperature: -5° to 45° C |
| Storage Temperature (without batteries): -30° to 60° C |
| Power Input: 20V~50V, 5A |
| Power Comsumption: ≤10W |
| Weight(in air/in water): 6.5 kg |
| Weight (in water): 3 kg |
| Dimensions: Φ300mm×150mm |
OCEAN - RM - 600K（H-ADCP）
Quietly brilliant
Better Price
Real-time River Horizontal Current Profiling
Engineered with standard POM material for compact, lightweight reliability.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Original Manufactor
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
River Discharge Measurement
Flood Monitoring and Early Warning
Water Conservancy Project Construction and Management
Agricultural Irrigation
Water Environment Monitoring
River Navigation
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Automated Electronic PCBA
Automated Precise
Sufficient Maritime Tests
Ample Laboratory Verification
