ADCP-300K

Acoustic Doppler Current Profiler 300kHz

Overview

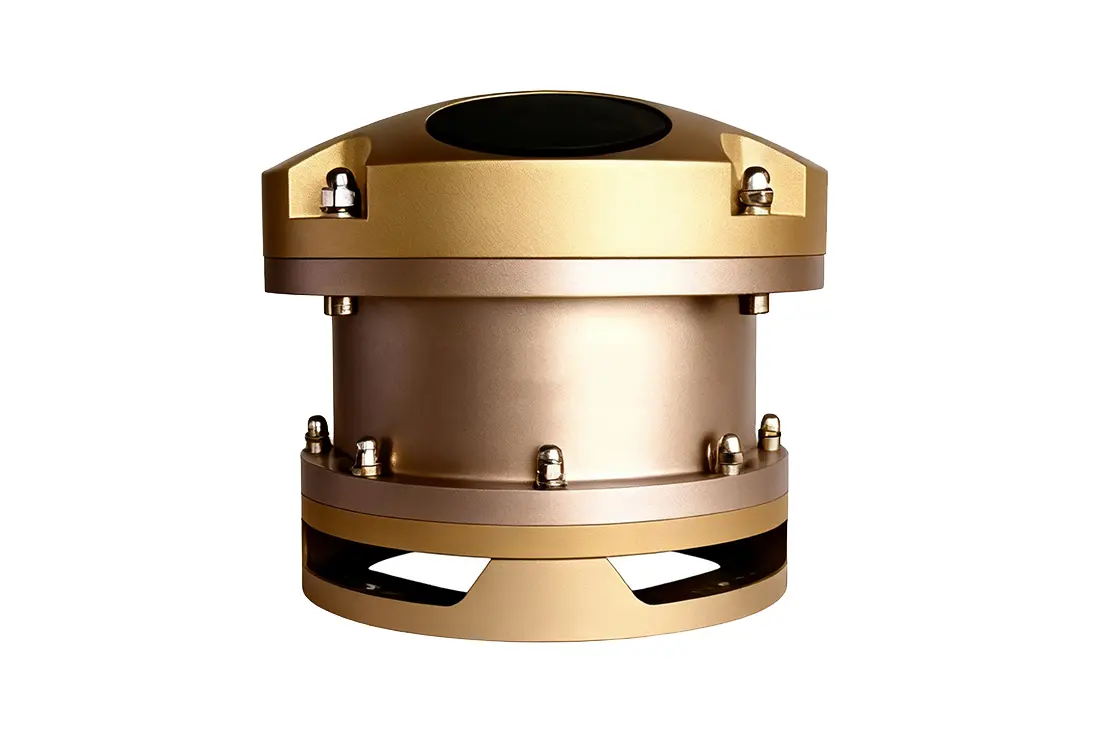

ADCP-300K

Key Features

  • Long Range
    In wide-beam working mode, the ADCP-300K can measure flow velocity up to 160 meters.
  • High Accuracy
    Velocity measurement accuracy: 0.5% ± 0.5 cm/s.
    ADCP ensures stable long-term operation with reliable data output.
  • Low Power Consumption
    Utilizes low-power technology with an average power consumption of only 3.2 W.
  • High Reliability
    Built with mature hardware design, ensuring stable and reliable performance.
  • Wi-Fi Data Transmission
    Supports RS232, RS485, and Wi-Fi transmission. Enables wireless device connection and data transfer with a range of up to 20 m.
  • Multiple Working Modes
    Supports navigation mode, flow measurement mode, self-adaptive mode, and bottom tracking mode .
  • Customizable Software
    Fully independently developed current measurement software, customizable according to user requirements.

▶ Request a quote

Specifications

Specification Parameter
Working Frequency300 kHz
Transducer TypePiston
Beam Configuration4 Beams
Velocity Accuracy0.5% ±0.5 cm/s
Velocity Range±5.0 m/s (Typical), ±20.0 m/s (Maximum)
Velocity Resolution1 mm/s
Water Profiling Range2 – 160 m
Bottom Tracking Range1.5 – 200 m
Number of Depth Cells1 – 260
Depth Cell Size1 – 8 m
Ping Rate10 Hz (Max)
Working ModesBroadband
Pressure Rating200 m (Standard); 1000 m (Optional); 3000 m (Optional)
SensorTemperature, Compass, Motion, Pressure
Power Input9 – 18 V DC (standard 12 V)
Power Consumption3.2 W (average), 0.5 W (sleep), 30 W (peak)
CommunicationsRS-232, RS-422, Wi-Fi; Baud rate: 4800 – 115200
Internal Memory16 GB
MaterialEngineering plastic, aluminum alloy, titanium alloy
Dimension (excluding connector)Φ230 mm × 195 mm
AccessoriesADCP with Transducer Cables, Charger, Processing software

Applications


  • Water Conservancy and Hydrology
  • Marine Engineering
  • Waterway Systems
  • Environmental Protection Systems
  • Marine Systems
  • Scientific Research Institutes
  • Underwater Navigation

Wind Farm

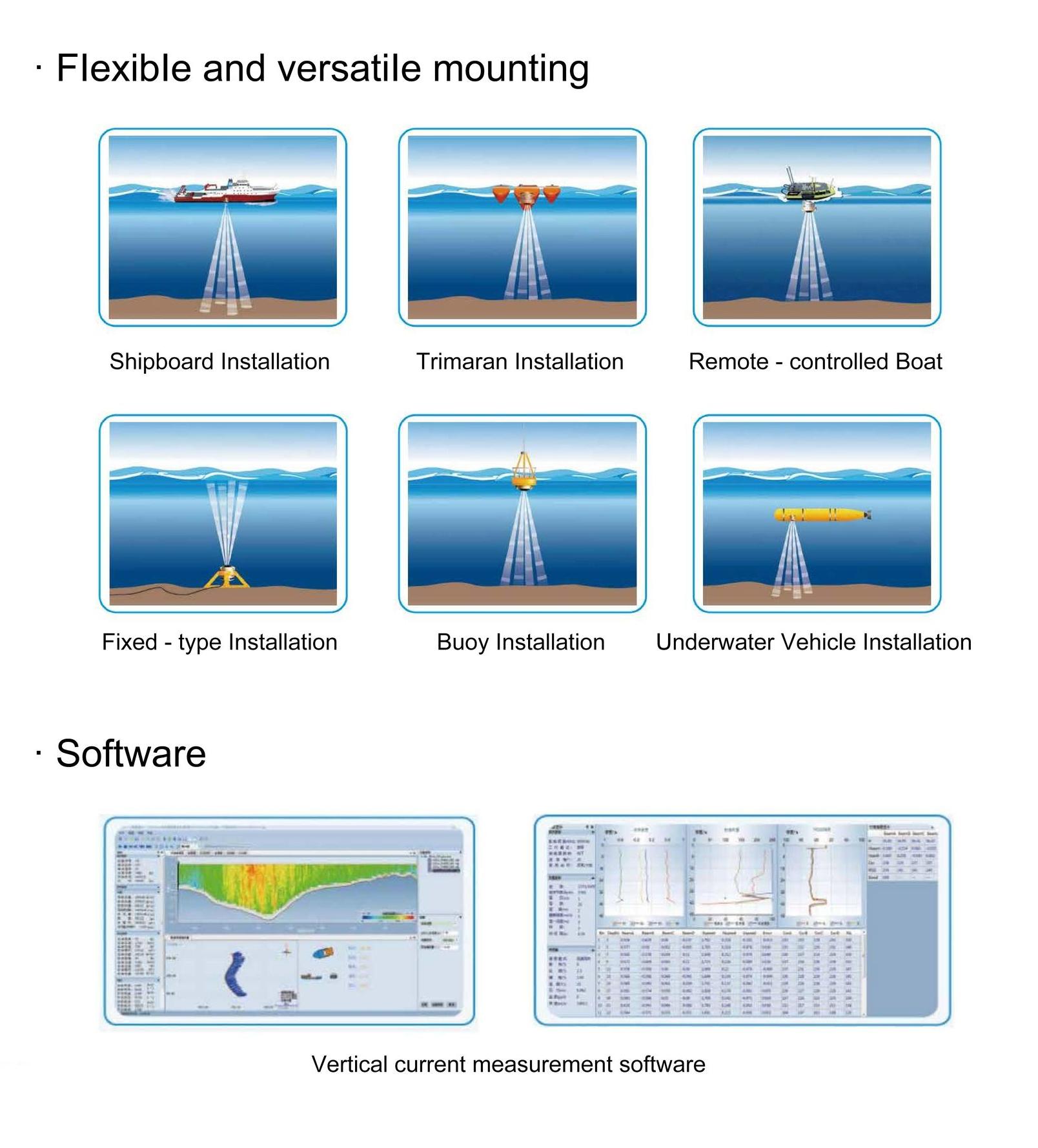

Installation Methods

Installation Modes of ADCP-300K , Including Moving-Vessel Type and Vertical Type

Introduction to ADCP-300K


The ADCP-300K Direct-Reading Acoustic Doppler Current Profiler (ADCP) is a high-precision, low-power, and easy-to-operate water current measurement system, specially designed for hydrology, marine engineering, and environmental monitoring. It has a measurement range of up to 160 meters and supports RS232, RS485, and Wi-Fi wireless data transmission, making it suitable for deployment on a variety of platforms such as buoys, moorings, and Unmanned Surface Vehicles (USVs).

The ADCP-300K provides accurate water velocity profile data and is widely used for river flow monitoring, coastal current measurement, ocean observation, marine engineering, and environmental management.


Principle of ADCP 300kHz


The ADCP-300K operates based on the Doppler effect. It emits acoustic pulses into the water, which are scattered back by suspended particles. By analyzing the frequency shift of the returned echoes, the instrument calculates the water velocity at different depths. Using multiple acoustic beams, the ADCP generates a complete water column velocity profile, enabling high-precision flow monitoring in rivers, canals, and coastal waters.
