ADCP-600K

Acoustic Doppler Current Profiler 600kHz

Overview

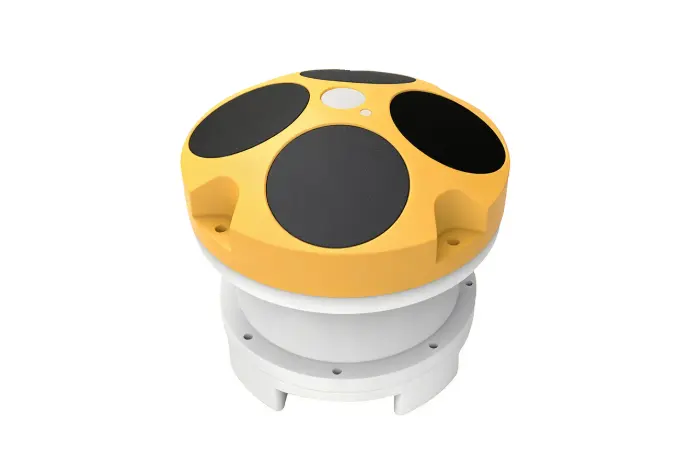

ADCP-600K

ADCP-600K

Key Feature​s

  • Wide Range
    In broadband working mode, the ADCP-600K can measure velocity profiles up to 90 m.
  • High Accuracy
    With long-term ADCP observation, the data is stable and reliable, and the measurement accuracy fully meets flow measurement requirements.
  • Low Power Consumption
    Adopts low-power technology with an average power consumption of ≤ 3.2 W.
  • High Reliability
    Designed with mature hardware, ensuring stable and reliable instrument performance.
  • Wi-Fi Transmission
    Supports RS232, RS422, and Wi-Fi transmission interfaces. Enables wireless device connection and data transfer with an effective distance of up to 20 m.
  • Multiple Working Modes
    Supports navigation mode, fixed-point current measurement, self-contained mode, and bottom tracking mode .
  • Customizable Software
    Fully independently developed current measurement software, customizable according to user requirements.

▶ Request a quote

Specifications

Specification Parameter
Working Frequency600 kHz
Beam Configuration4 Beams Janus, 20°
Working ModesBroadband, Narrowband, Pulse Coherent
Transducer TypePiston
Water Profiling Range0.3 – 90 m
Bottom Tracking Range0.4 – 120 m
Velocity Accuracy±0.25% ±0.2 cm/s
Velocity Resolution1 mm/s
Velocity Range±5.0 m/s (Default); ±20.0 m/s (Maximum)
Number of Depth Cells1 – 260
Ping RateMax 20 Hz
Depth Cell Size0.05 – 4 m
Internal Memory16 GB Micro SD Card
CommunicationsRS-232 (typical), RS-422 (optional), Wi-Fi (optional); Baud rate: 4800 – 115200
SensorTemperature, Compass, Motion, Pressure
Power Input9 – 18 V DC (standard 12 V)
Power Consumption3.5 W (average)
MaterialEngineering plastic, aluminum alloy, or titanium alloy (selectable)
Dimension (excluding connector)Φ230 mm × 210 mm
Float ConfigurationThree hulls (Trimaran), USV; Material: Polyethylene (Trimaran), Carbon Fiber (USV)
Available OptionsExternal battery case, Bottom tracking, AC/DC power converter

Applications


  • Water Conservancy and Hydrology
  • Marine Engineering
  • Waterway Systems
  • Environmental Protection Systems
  • Marine Systems
  • Scientific Research Institutes
  • Underwater Navigation

Recovery of Buoys Equipped with ADCP

Installation Methods


Installation Modes of ADCP, Including Moving-Vessel Type and Vertical Type

Introduction to ADCP-600K


The ADCP-600K Direct-Reading Acoustic Doppler Current Profiler (ADCP) is a high-precision, low-power, and easy-to-operate water current measurement system, specially designed for hydrology, marine engineering, and environmental monitoring. It has a measurement range of up to 90 meters and supports RS232, RS422, and Wi-Fi wireless data transmission, making it suitable for deployment on various platforms such as buoys, moorings, and Unmanned Surface Vehicles (USVs).

The ADCP-600K provides highly accurate water velocity profile data and is widely used for river flow monitoring, coastal current measurement, ocean observation, marine engineering, and environmental management.


Principle of ADCP 600kHz


The ADCP-600K operates based on the Doppler effect. It emits acoustic pulses into the water, which are scattered back by suspended particles. By analyzing the frequency shift of the returned echoes, the instrument calculates water velocity at different depths. Using multiple acoustic beams, the ADCP generates a complete water column velocity profile, enabling high-precision flow monitoring in rivers, canals, and coastal waters.
