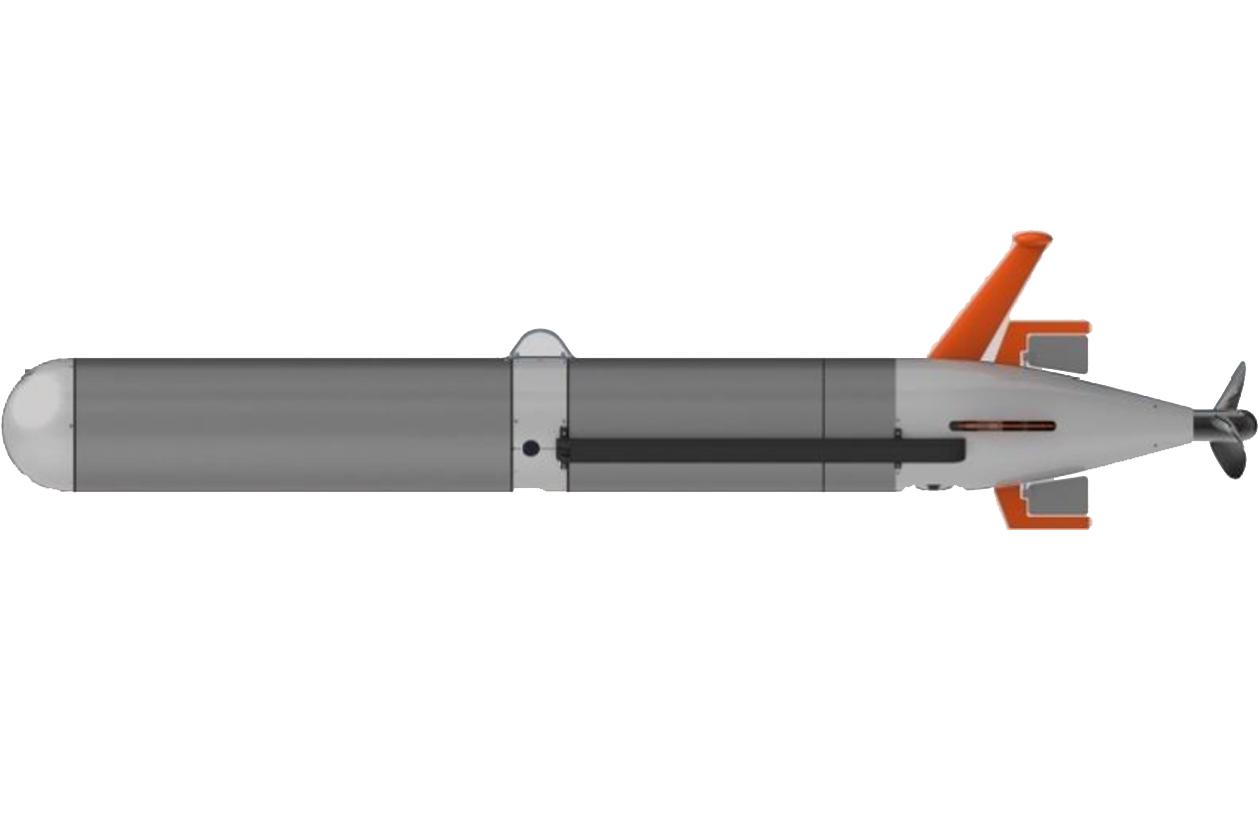

AUV-HJ300M
Autonomous Underwater Vehicle (AUV)
The AUV-HJ300M is a compact and portable Autonomous Underwater Vehicle (AUV) designed for versatile marine applications. With its lightweight structure and flexible payload capacity, it supports the integration of multiple sensors, enabling missions such as underwater exploration, marine environment monitoring, seabed mapping, resource surveys, and scientific research.
Equipped with advanced autonomous navigation and control systems, the AUV-HJ300M operates reliably and efficiently in complex underwater environments, ensuring high-precision data collection and mapping. Its adaptability makes it an ideal solution for research institutions, engineering applications, and commercial marine surveys.
AUV-HJ300M
Key Features
- Compact and portable AUV
- Maximum Operating Depth: 300 meters
- Customizable energy capacity
- Modular Design
- Flexible sensor integration: acoustic, optical, magnetic
- Maximum speed: up to 4 knots (customizable)
- Extended endurance: 24-60 hour
Overview
Applications
Marine Scientific Research
- Monitoring key water parameters: temperature, salinity, chlorophyll, and turbidity
- Monitoring of biological community distribution
- Seafloor topography and geomorphology mapping
- Acquisition of ocean ambient noise data
Underwater Inspection
- Inspection of subsea infrastructure: pipelines and cables
- Inspection of wind turbine and offshore platform pile foundations

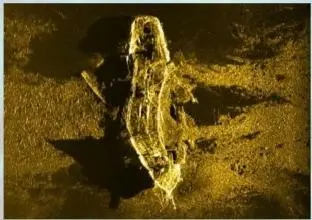

Marine Exploration
- Exploration of underwater structures, shipwrecks.
- Detection of underwater suspicious objects and targets
- Exploration of marine mineral resources
Specifications
Vehicle Specification | |
Diameter | 300mm |
Length | 2000-3000mm |
Weight | 80-300kg |
Estimated Endurance | 24-60h |
Maximum Range | 360km |
Standard Specifications,Sensors and Payloads | |
Depth Rating | 300m |
Speed | 0-4kn |
Propulsion and Control | Three-blade propeller with cruciform rudder control for pitch and yaw |
Buoyancy control | Precision buoyancy control system enables hovering at any underwater depth. |
Operating modes | Constant-depth cruising,Constant-altitude cruising,Depth-hold hovering, Sawtooth profiling |
Communications | UHF wireless,BeiDou(SMS)module/Tiantong, High-frequency acoustic communication,4G,WiFi |
Surface positioning | GPS,BeiDou GNSS positioning |
Navigation | Dead reckoning:FOG INS+DVL,Electronic compass+DVL(Low power mode) Acoustic positioning:SSBL beacon/LBL beacon(Optional) |
Doppler Velocity Log | DeepNavi-S500 DVL |
Side Scan Sonar | ES4590(450kHz-150m/900kHz-75m) |
Other Sensors | KELLER Series 10LX Depth-altitude gauge,XSENS MTi-630 Attitude sensor |
Warranty | 1-year warranty with additional warranty options available |
External Connections | Charging port,WiFi |
Safety Features | Ground fault monitoring,Leak detection,Emergency jettison system |
Auxiliary Equipment | Shockproof transport case,Rugged laptop,Hub box,Maintenance tools |
Optional Payloads,Equipment | |
Optical survey | HD camera··· |
Water monitoring | CTD,Turbidity,Chlorophyll,Nitrate,CO2··· |
Acoustic inspection | Dual-frequency side-scan sonar,High-frequency SAS, Forward-looking imaging sonar··· |
Acoustic-magnetic survey | Hydrophone,Magnetometer,Towed array sona··· |
