AUV-HJ Series

Autonomous Underwater Vehicles (AUVs)

The AUV-HJ Series, including the AUV-HJ300M and AUV-HJ1000M, represents a new generation of compact, reliable, and versatile Autonomous Underwater Vehicles (AUVs) for diverse marine applications.

Overview

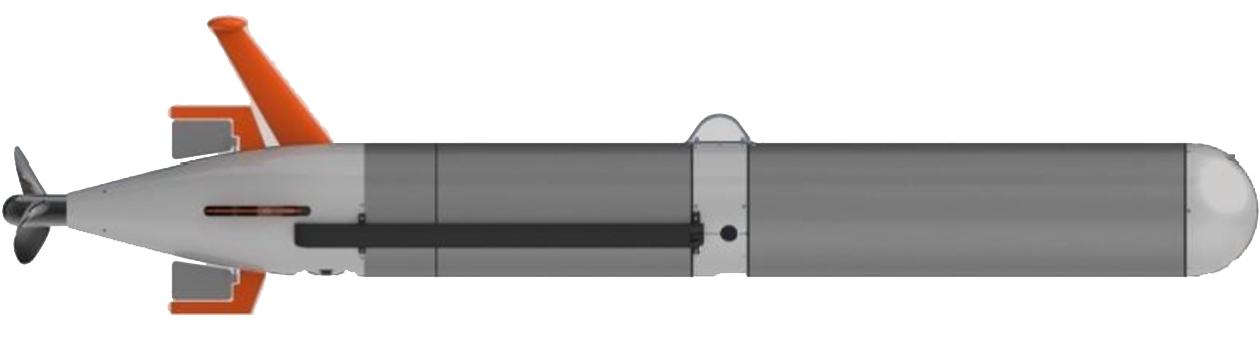

AUV-HJ1000M

A long-range AUV with extended endurance and exceptional payload capacity, designed for large-scale and deep-sea operations. It is well-suited for long-duration underwater exploration, marine monitoring, hydrographic surveys, resource assessment, and deep-sea research.

Key Features

  • Long-range AUV
  • Modular Design
  • Flexible sensor integration: acoustic, optical, magnetic
  • Maximum Operating Depth: 1000 meters
  • Long endurance range (4,000 km)
  • Maximum speed: up to 3 knots (customizable)
  • Customizable energy capacity


View more

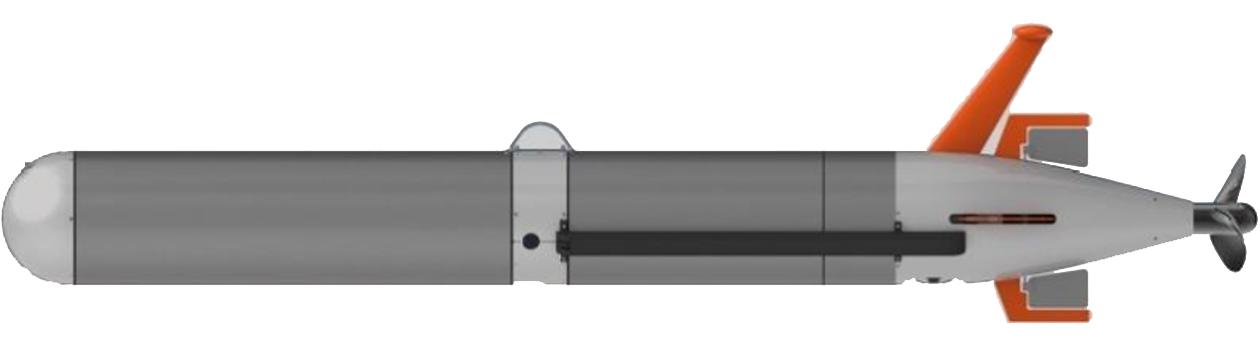

AUV-HJ300​M

A portable and flexible AUV with a lightweight design and superior payload adaptability. Ideal for underwater exploration, marine monitoring, seabed mapping, and scientific research, the HJ300M is optimized for dynamic and short-to-medium range missions.

Key Features

  • Compact and portable AUV
  • Maximum Operating Depth: 300 meters
  • Customizable energy capacity
  • Modular Design
  • Flexible sensor integration: acoustic, optical, magnetic
  • Maximum speed: up to 4 knots (customizable)
  • Extended endurance: 24-60 hour


View more

Specifications

​

Vehicle Specification

AUV-HJ30​0M

AUV-HJ100​0M

Diameter

300mm

350mm

Length

2000-3000mm

3500mm

Weight

80-300kg

300kg

Estimated Endurance

24-60h

150h@3kn

Maximum Range

360km

4000km

Depth Rating

300m

1000m

Speed

0-4kn

0-3kn

Doppler Velocity Log

DeepNavi-S500 DVL

Nortek DVL1000

Side Scan Sonar

ES4590(450kHz-150m/900kHz-75m)

Applications

Marine Scientific Research

  • Monitoring key water parameters: temperature, salinity, chlorophyll, and turbidity
  • Monitoring of biological community distribution
  • Seafloor topography and geomorphology mapping
  • Acquisition of ocean ambient noise data

Underwater Inspection

  • Inspection of subsea infrastructure: pipelines and cables
  • Inspection of wind turbine and offshore platform pile foundations

Marine Exploration

  • Exploration of underwater structures, shipwrecks.
  • Detection of underwater suspicious objects and targets
  • Exploration of marine mineral resources
