Commercial Fishing Sonar Systems | Fish‑Finding Sonar & Scientific Echo Sounder
3D Omnidirectional & Split‑Beam Scientific Echosounders for Fishing Vessels & Fishery Resource Survey


Our full‑range fishery sonar portfolio covers deep‑sea pelagic fishing, offshore fishing, near‑shore & shallow‑water scientific investigation. Cost‑effective domestic alternative to high‑end imported fish‑finding sonar, echo sounder and commercial fish finder solutions.

→ VIEW COMPARISON TABLE → Request a quote



EV200

Fishery Biomass Scientific Survey | Split‑Beam Echo Sounder



EVL200

Shallow‑water 360° Scan + TS Measurement | Dual‑mode  Echo Sounder



FSC60

Offshore Commercial Fishing | Compact Fish‑Finding Sonar



FSC25

Deep‑Sea Pelagic Fishing | Long‑Range Fish‑Finding Sonar

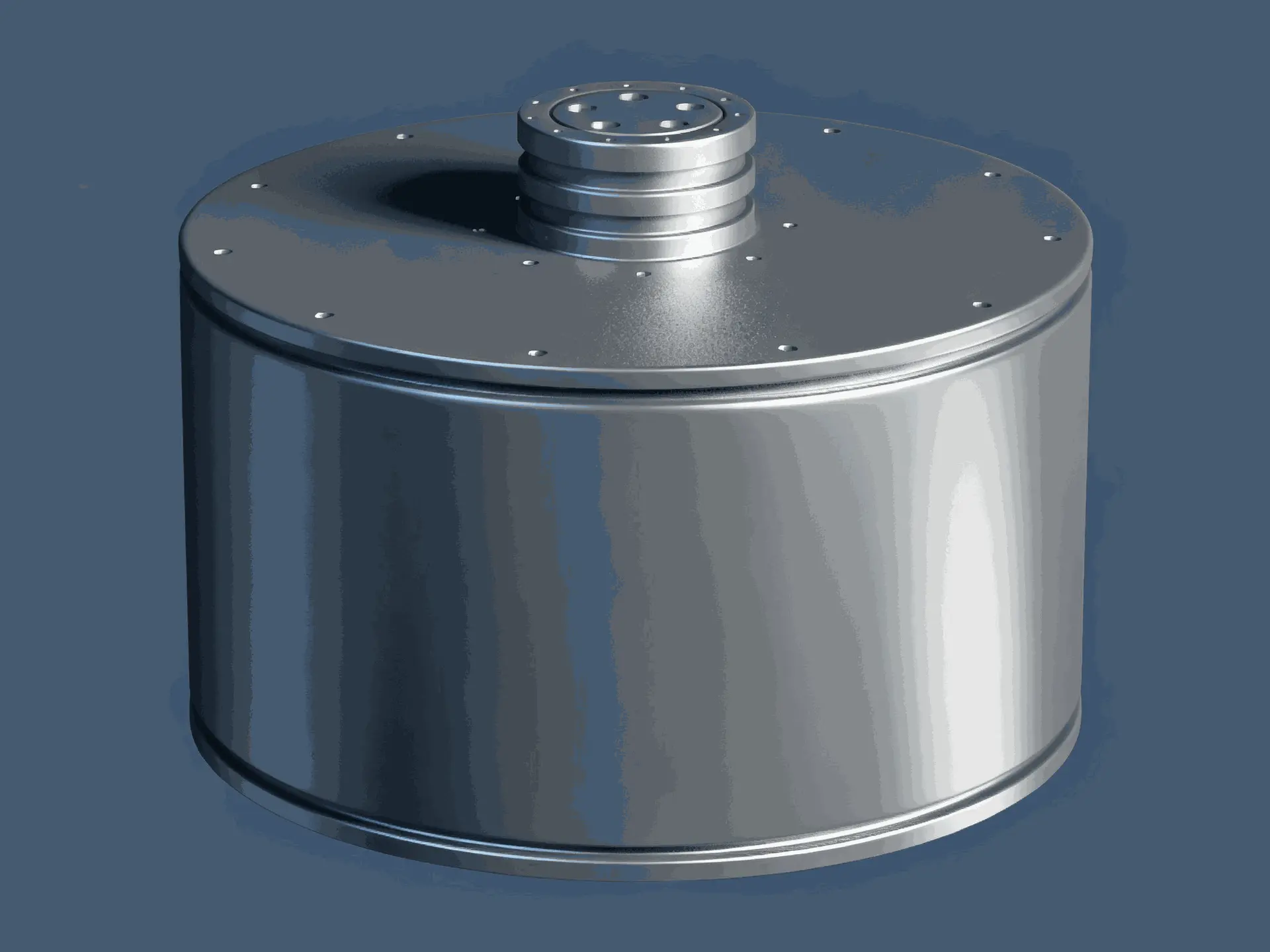

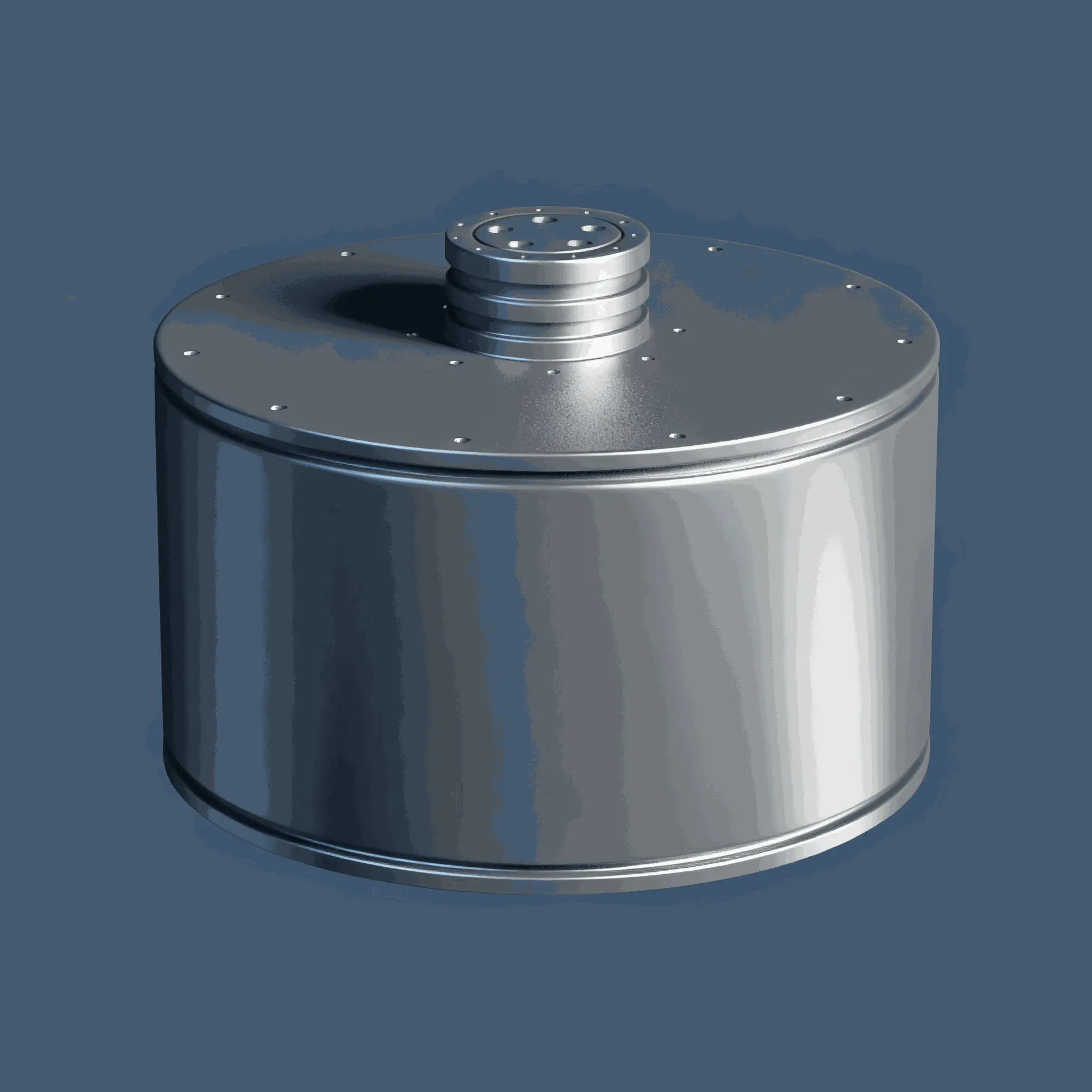

FSC25 3D Fishing Sonar

3D Omnidirectional｜Max Range 5km｜1024 Array Elements | Premium Fish‑Finding Sonar

High‑end deep‑sea 360° electronic scanning fish‑finding sonar for pelagic fishing vessels & large‑scale fishery resource investigation.

Application： Deep‑sea pelagic fishing, large purse‑seiners, marine fishery resource assessment, commercial fish finder onboard deployment

VIEW DETAILS

FSC25 3D Fishing Sonar

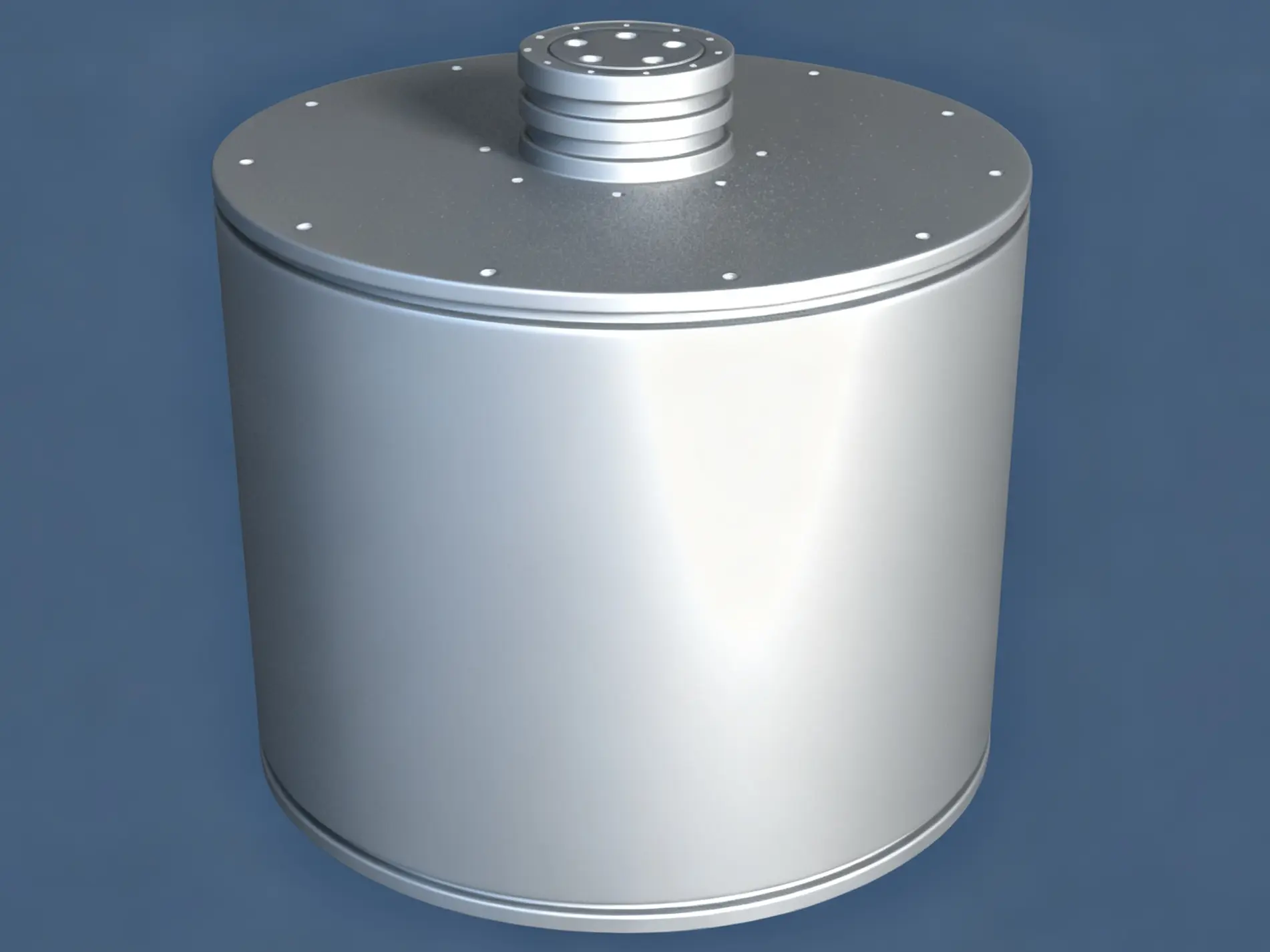

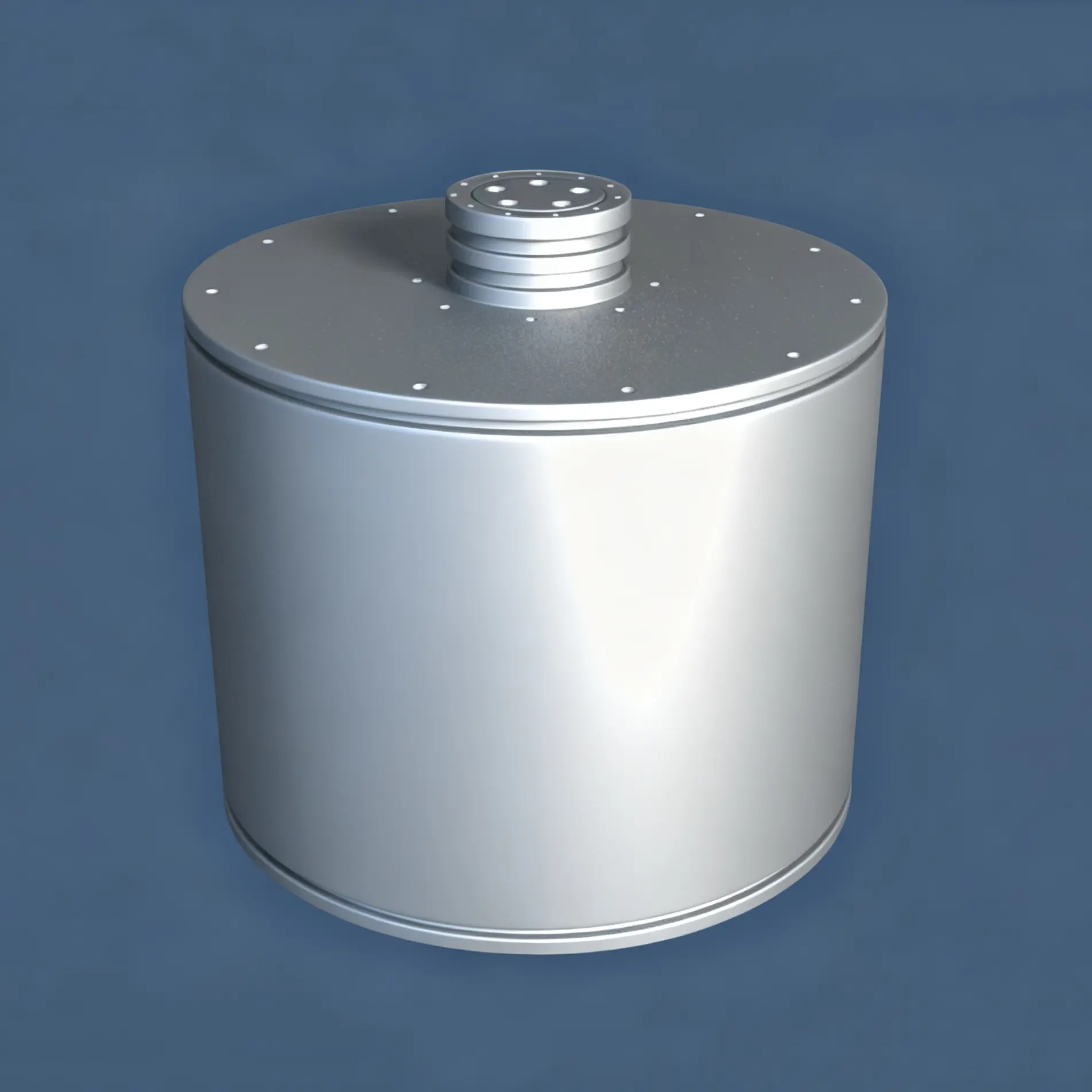

FSC60 3D Fishing Sonar

3D Omnidirectional｜Max Range 2km｜512 Array Elements | Cost‑Efficient Fish‑Finding Sonar

FSC60 3D Fishing Sonar

Compact cost‑effective 360° scanning fish‑finding sonar for medium & small offshore fishing crafts.Application： Offshore commercial fishing, near‑shore fishery survey, vessel‑mounted fish finder system

Application： Offshore commercial fishing, near‑shore fishery survey, vessel‑mounted fish finder system

VIEW DETAILS

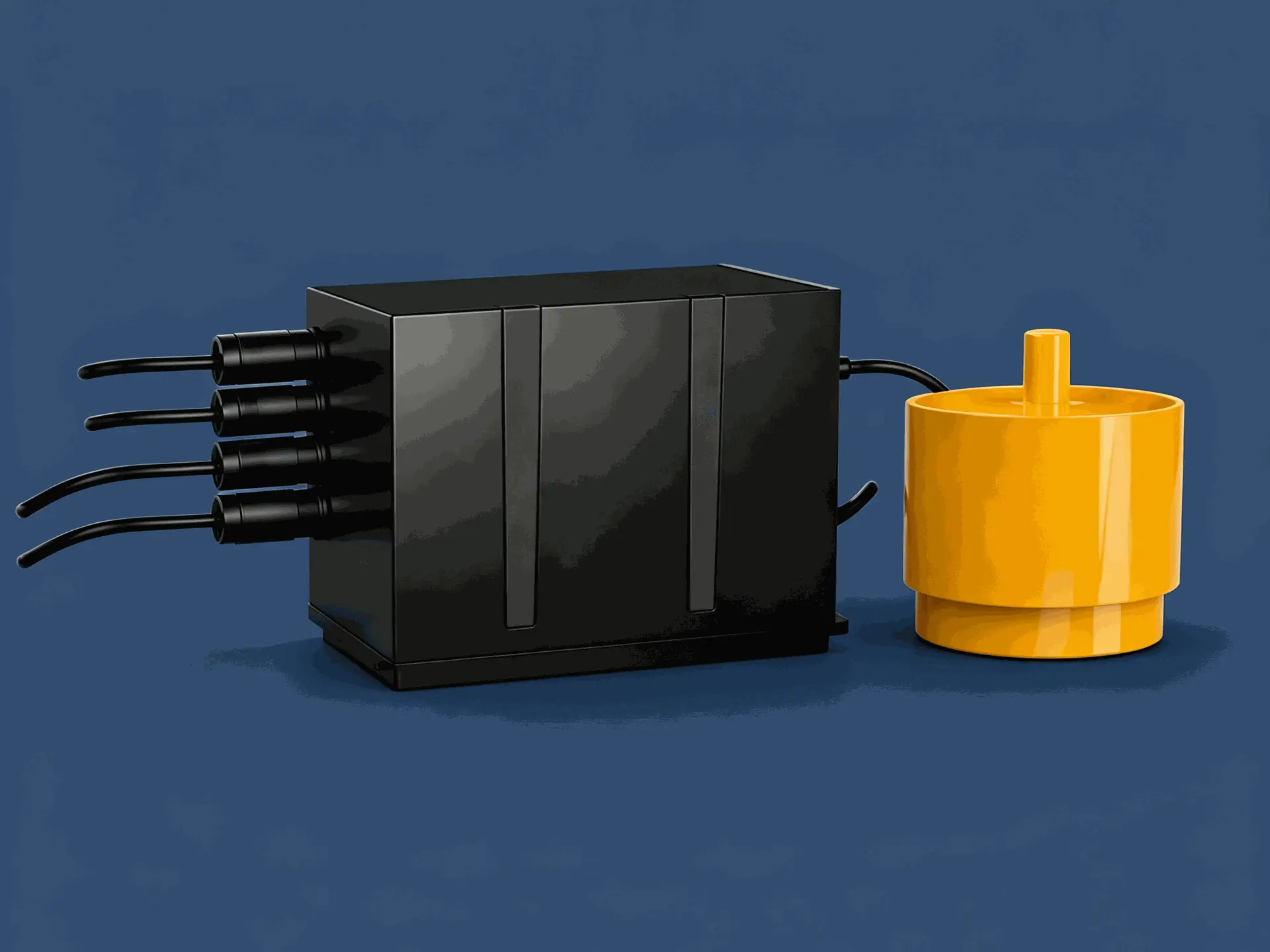

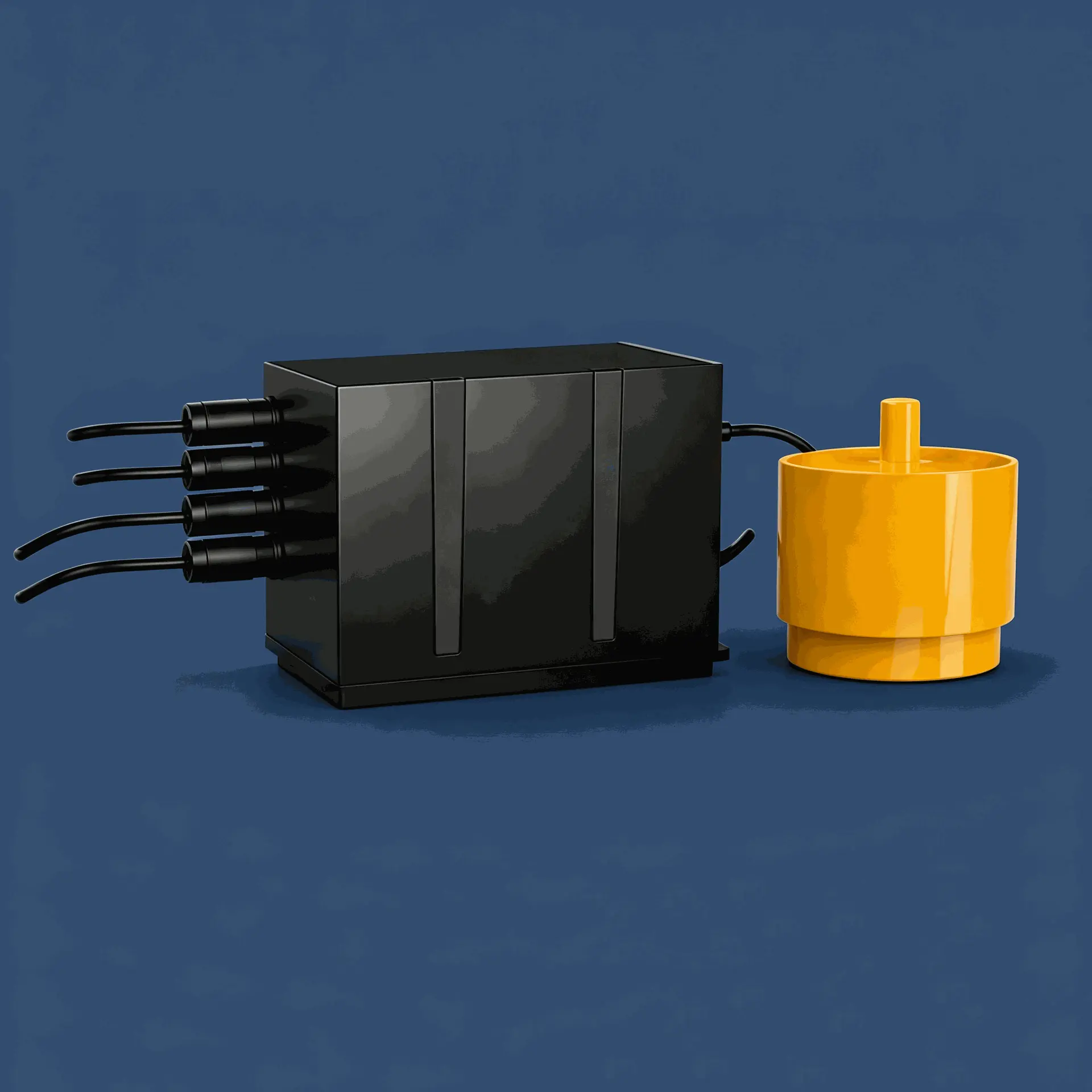

EV200 Split‑Beam Fishing Sonar

Split‑Beam｜Max Depth 100m｜TS Quantitative Measurement | Research‑Grade Echo Sounder ​

EV200 Split‑Beam Fishing Sonar

Professional scientific echo sounder (echosounder) for accurate target‑strength measurement & fishery biomass assessment, equivalent performance to mainstream research fish finder instruments.

Application：  Fishery resource stock assessment, aquatic ecological monitoring, research vessel survey

VIEW DETAILS

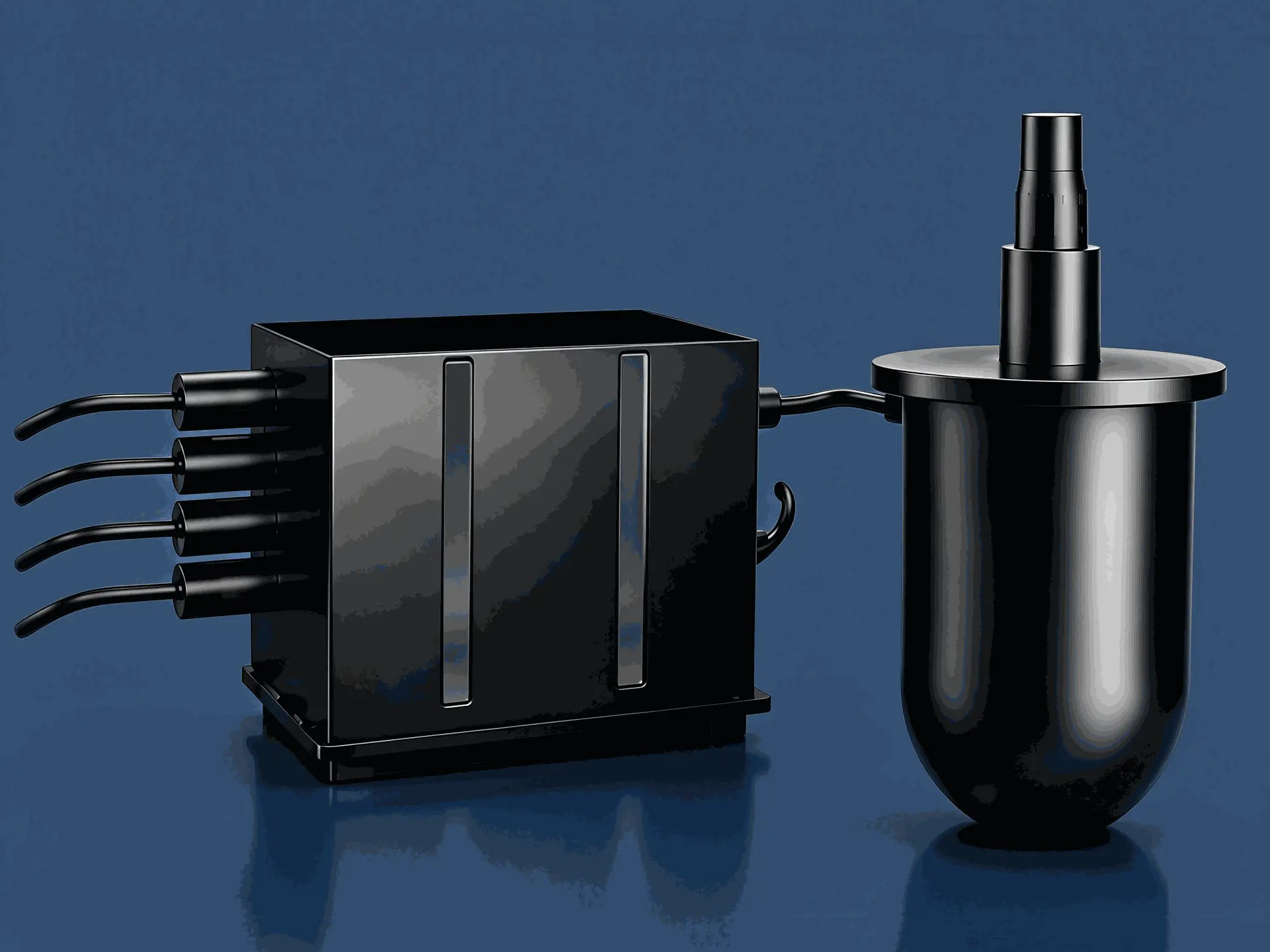

EVL200 Spotlight Split‑Beam Fishing Sonar

Spotlight 360° Scan｜Max Depth 100m｜Imaging + TS Dual‑function | Hybrid Fish‑Finding & Echo Sounder Platform

EVL200 Spotlight Split‑Beam Fishing Sonar

Unique dual‑function acoustic system: panoramic fish‑finding scanning plus split‑beam quantitative echo sounder measurement for shallow‑water fishery research.

Application：Shallow‑water rapid survey, inshore fast‑scan investigation, scientific missions

VIEW DETAILS

Specification Comparison ​

Parameter FSC25 FSC60 EV200 EVL200
Sonar Type 3D Omnidirectional Fishing Sonar 3D Omnidirectional Fishing Sonar Split‑Beam Scientific Echosounder Spotlight Split‑Beam Sonar
Operating Frequency 25 kHz 60 kHz 200 kHz 200 kHz
Array / Beam Info 1024 elements 512 elements Beam 7°×7° 360°H, ±90°V
Max Detection Range / Depth 5 km 2 km 100 m 100 m
Vertical Coverage ‑10° ~ +60° ‑10° ~ +60° — ±90°
Scan Capability 360° full‑azimuth electronic scan 360° full‑azimuth electronic scan Single‑beam split‑beam 360° spotlight scan, 30s/full scan
Core Function Real‑time 3D fish‑group visualization Real‑time 3D imaging TS measurement, biomass calculation Panoramic imaging + TS quantitative measurement
Power Supply AC220V AC220V DC24V DC24V
Typical Application Deep‑sea / Pelagic Offshore fishing Scientific biomass survey Shallow‑water survey

Imaging Video Demo

​



How to Choose the Right Fishery Sonar

  1. For deep‑sea pelagic fishing & long‑range fish‑finding detection
    → Choose FSC25. Max detection over 5 km, 1024‑element large array for large ocean‑going fishing vessels.
  2. For offshore & coastal medium‑small fishing boats needing reliable fish‑finding sonar / fish finder system
    → Choose FSC60. Compact structure, AC220V power supply, ideal for near‑shore fishery operation.
  3. If you need pure scientific quantitative biomass & TS measurement with professional echo sounder performance
    → Choose EV200. Standard split‑beam technology for fishery research and ecological monitoring.
  4. If you need both panoramic echo sounder  imaging AND quantitative TS measurement via echo sounder in shallow water
    → Choose EVL200. Unique dual‑function spotlight scanning solution.

Why Our Fishery Sonar & Acoustic Detection Systems

China's Leading Fishing Sonar Innovator

We specialize in the research and application of underwater acoustic detection technology, delivering mature commercial fishery sonar solutions that serve as a cost-effective alternative to premium imported fish-finding sonar, scientific echosounders and commercial fish finders.

Our systems are engineered to perform reliably in harsh offshore marine environments. We provide complete datasheets and technical documentation, alongside custom technical support for seamless vessel integration.

 OUR ADVANTAGES

  • Independent R&D: Self-controllable core technology
  • Continuous Innovation: Rigorous testing & quality control
  • Stable Performance: Senior R&D & engineering experts
  • Full Service: Pre-sales consultation, in-project & after-sales support


Core Functions

  • Fish School Detection | Accurate & Efficient Identification
  • Fishery Survey | Scientific Investigation & Data Support
  • Fishery Resource Assessment | Quantitative Analysis
  • Cloud Analysis | Cloud Processing & Intelligent Sharing
