EVL200 Spotlight Split-Beam Fishing Sonar
360° Panoramic Scanning with Quantitative TS Measurement for Shallow‑Water Fishery Investigation
EVL200 integrates spotlight scanning architecture and split‑beam quantitative measurement capability. It achieves full 360° horizontal scanning and ±90° vertical coverage; a full‑field scan can be completed within 30 seconds. While delivering panoramic underwater imaging, it retains split‑beam‑based Target‑Strength quantitative measurement function, max detection depth 100 m. This unique dual‑function design fills the gap between panoramic imaging and quantitative acoustic survey for shallow‑water fishery research.
EVL200 Spotlight‑Scanning Split‑Beam Sonar
Key Features:
- Spotlight scanning architecture, 360° horizontal full‑azimuth scan, vertical coverage ±90°
- Complete full‑field scan within 30 seconds for fast situational awareness
- Combines panoramic imaging and split‑beam TS quantitative measurement (unique dual‑function capability)
- Maximum detection depth:100 m for shallow‑water fishery & aquatic investigation
- Output both visual imaging data and quantitative scientific survey data
- Compact structure, suitable for ship‑borne rapid deployment
Overview
Specifications
Applications
- Shallow‑water fishery resource rapid survey
- Aquatic habitat observation & biological target quantitative statistics
- Inshore water area fast‑scan investigation
- Scientific research missions requiring both imaging and acoustic quantitative data

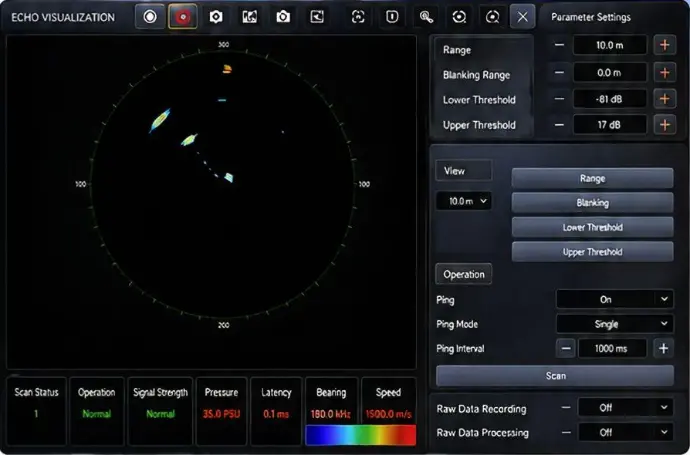

Imaging Example
