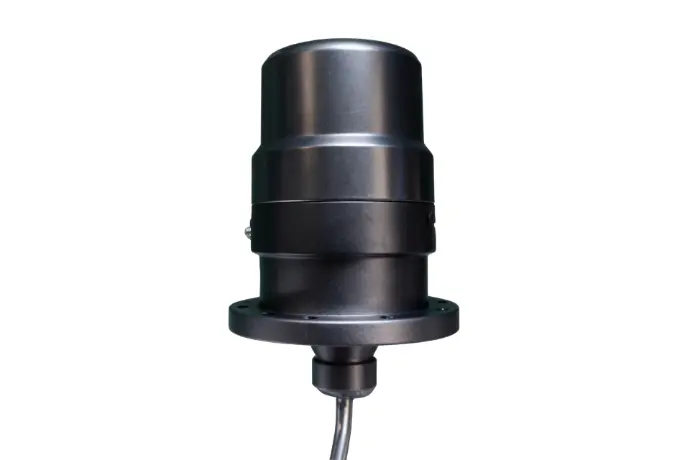

MiniUAC-700M

Mechanical Scanning Sonar 700kHz

Underwater Acoustic Camera 360° Omnidirectional Imaging Sonar

The MiniUAC-700M mechanically scanned sonar is mainly used for detecting underwater targets. It can acquire target information within a 360° field of view and display data in real time for target recognition and other applications.


This sonar model is specially designed to be mounted on Unmanned Surface Vehicles (USVs), underwater robots (ROVs, AUVs, UUVs) and various other embedded carriers. It is applicable to underwater engineering inspection, emergency search & rescue, salvage and other fields.


It adopts fully domestic hardware and software, and is compatible with Tritech sonar display & control software. In addition, an SDK package is available for deep integration scenarios to support user secondary development.

UAC-700M     Mechanical Scanning Sonar 700kHz

MiniUAC-700M  Imaging Sonar

Key Features:

  • 360° configurable mechanical scanning (45°/90°/135°/180°/360° sector options)
  • 675–725 kHz operating frequency, 3.3° horizontal /25° vertical beam width
  • 60m effective detection range, 2–100m configurable measurement range, 1.25cm min range resolution
  • 300m depth rating, compact design for USV / ROV / AUV integration
  • Tritech protocol compatible, RS-422 @115200, SDK available for secondary development
  • 20–28 VDC wide voltage input, fully domestic hardware & software

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating Frequency675–725 kHz
Scanning AngleMaximum 360° (Scanning sector configurable: 45°, 90°, 135°, 180°, 360°)
Maximum Scanning Speed10 s (5 m)
Effective Detection Range60 m (-20 dB target, good hydrological conditions)
Beam AngleHorizontal 3.3°±0.5°, Vertical 25°±1.5°
Step Angle0.9°, 1.8°, 3.6°
Scan Rate3 levels: Slow, Medium, Fast
Range ResolutionMin. 1.25 cm
Measurement Range2–100 m
Maximum Operating Depth300 m (customizable as required)
Points per Frame400 points
Communication InterfaceRS422; Baud rate: 115200
Power Supply / Power Consumption24VDC, typical power 7W, max power 12W, wide voltage input 20~28VDC supported
DimensionΦ70 mm × 90 mm (cable-out version available)
Weight400 g(in air)
Software DevelopmentProvide display and control software or SDK, support secondary development

Scanning Time

The scanning time listed in the table represents the duration for a full 360° scan. The complete 360° scanning time for different angular steps is shown below:

Distance 0.9° Step (s) 1.8° Step (s) 3.6° Step (s)
5 m502611
30 m733614
80 m1206020


Imaging Example

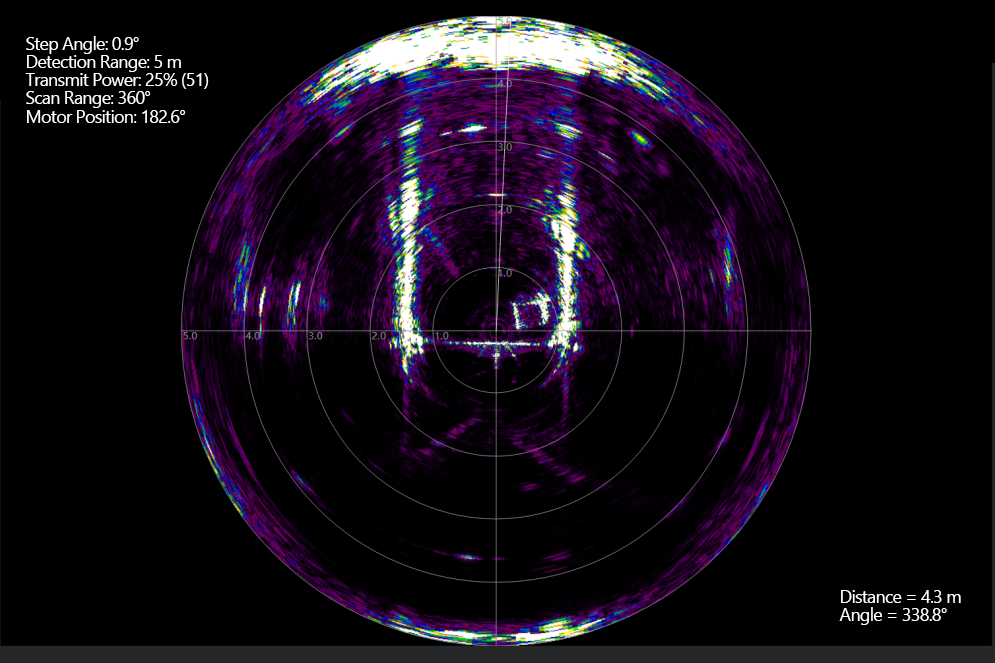

Imaging Example-MiniUAC-700M    Mechanical Scanning Sonar 700kHz

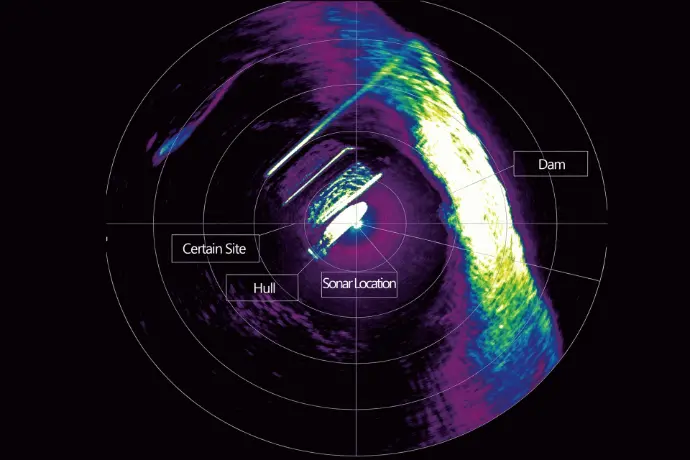

Imaging of Unspecified Test Platform Area-MiniUAC-700M    Mechanical Scanning Sonar 700kHz

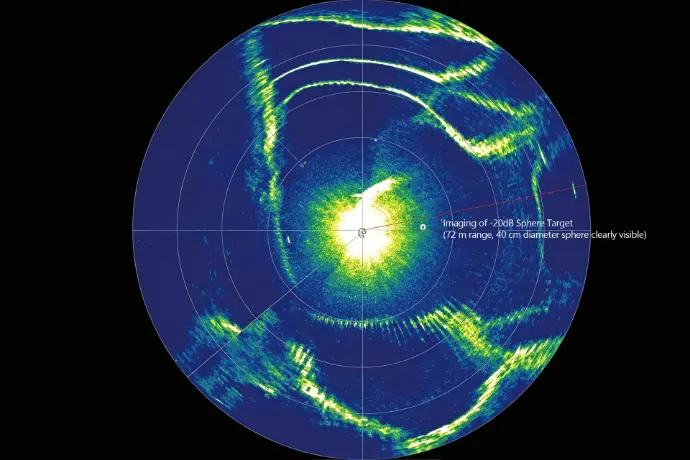

Imaging of -20dB Sphere Target (72 m range, 40 cm diameter sphere clearly visible)-MiniUAC-700M    Mechanical Scanning Sonar 700kHz

Applications


  • Subsurface pipeline inspection – Detect and monitor buried or submerged pipelines.
  • Harbor and river imaging – Conduct surveys and imaging in ports, rivers, and other confined waterways.
  • Search and rescue operations – Support underwater search, rescue, and recovery missions.
  • Navigation assistance – Aid small autonomous vehicles (AUVs) or diver-held platforms in underwater navigation.

Applications UAC-700M     Mechanical Scanning Sonar 700kHz

Documents


MiniUAC-700M DATASHEET
