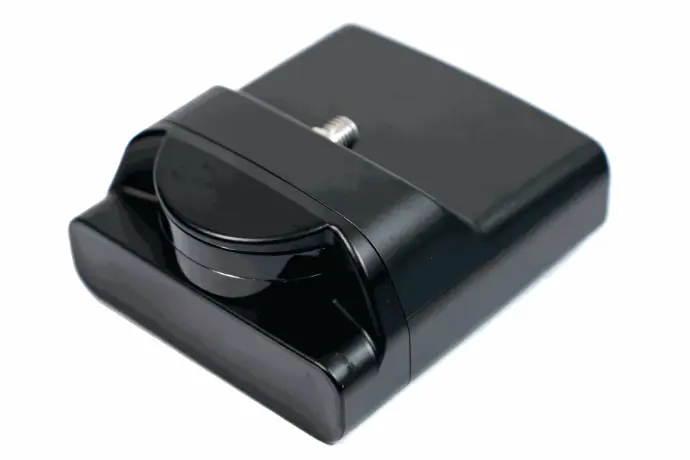

UAC-7512F   Underwater Acoustic Camera

Portable Dual-Frequency Forward-Looking Sonar 750kHz/1200kHz

UAC7512 is a Portable Dual-Frequency Forward-Looking Sonar designed for underwater real-time imaging in complex environments like rivers, streams, lakes, and oceans. It can be integrated with various platforms, including ROVs, AUVs, UUVs, and diver systems, to support diverse underwater detection, collision avoidance, and construction operations.

UAC-7512F

Key Features:

  • Dual-frequency imaging (750 kHz /1200 kHz) — Combines long-range coverage with high-resolution detail

  • Wide field of view — 130°/80° horizontal and 20°/12° vertical for broad situational awareness

  • Low power consumption — Typical power use ≤ 32 W, optimized for long-duration missions

  • Compact and lightweight — Easy integration with AUVs, ROVs, and portable systems

  • Rugged, field-proven design — Pressure-rated, corrosion-resistant, and built for harsh marine conditions

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating Frequency750 kHz / 1.2 MHz
Maximum Range120 m / 40 m
Minimum Range0.1 m
Maximum Number of Beams512
Range Resolution4 mm / 2.5 mm
Angular Resolution1° / 0.6°
Horizontal Aperture130° / 80°
Vertical Aperture20° / 12°
Dimensions124 mm (L) × 113 mm (W) × 62 mm (H)
Weight1.1 kg (air) / 0.48 kg (in water)
Depth Rating500 m
Continuous Working Time≥ 24 h
Update RateUp to 40 Hz
Supply VoltageDC 18 V – 48 V (≥ 48 W power supply)
Typical Power Consumption32 W @ 40 m
Built-in SensorsTemperature and humidity,electronic compass,attitude,depth

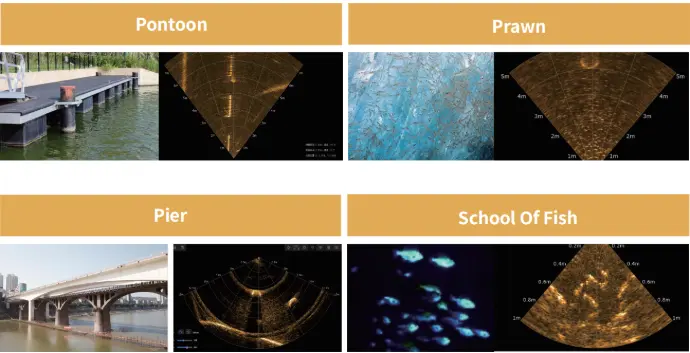

Applications


  • ROV navigation and operations monitoring
  • Equipment/tool placement
  • Search and recovery / water rescue
  • Object detection and tracking
  • Close-range high-resolution object identification
  • Obstacle avoidance
  • Area survey and environmental monitoring (marine ranching)
  • Marine engineering support
  • Nuclear power cooling system monitoring

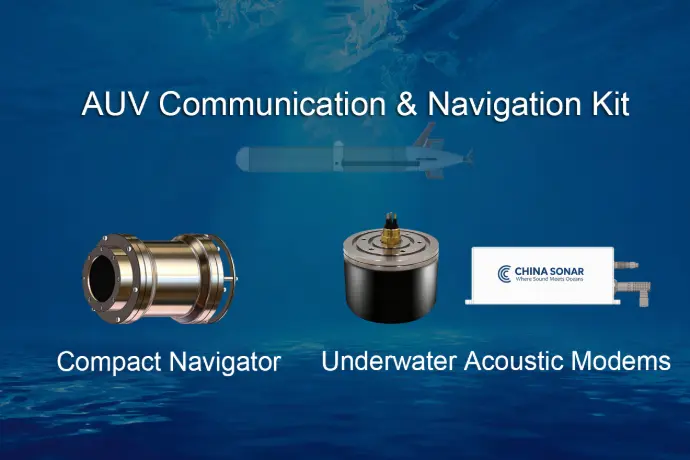

AUV Communication & Navigation Kit

Compact Navigator & Underwater Acoustic Modem

Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.

  • NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
  • UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.

Discover more
