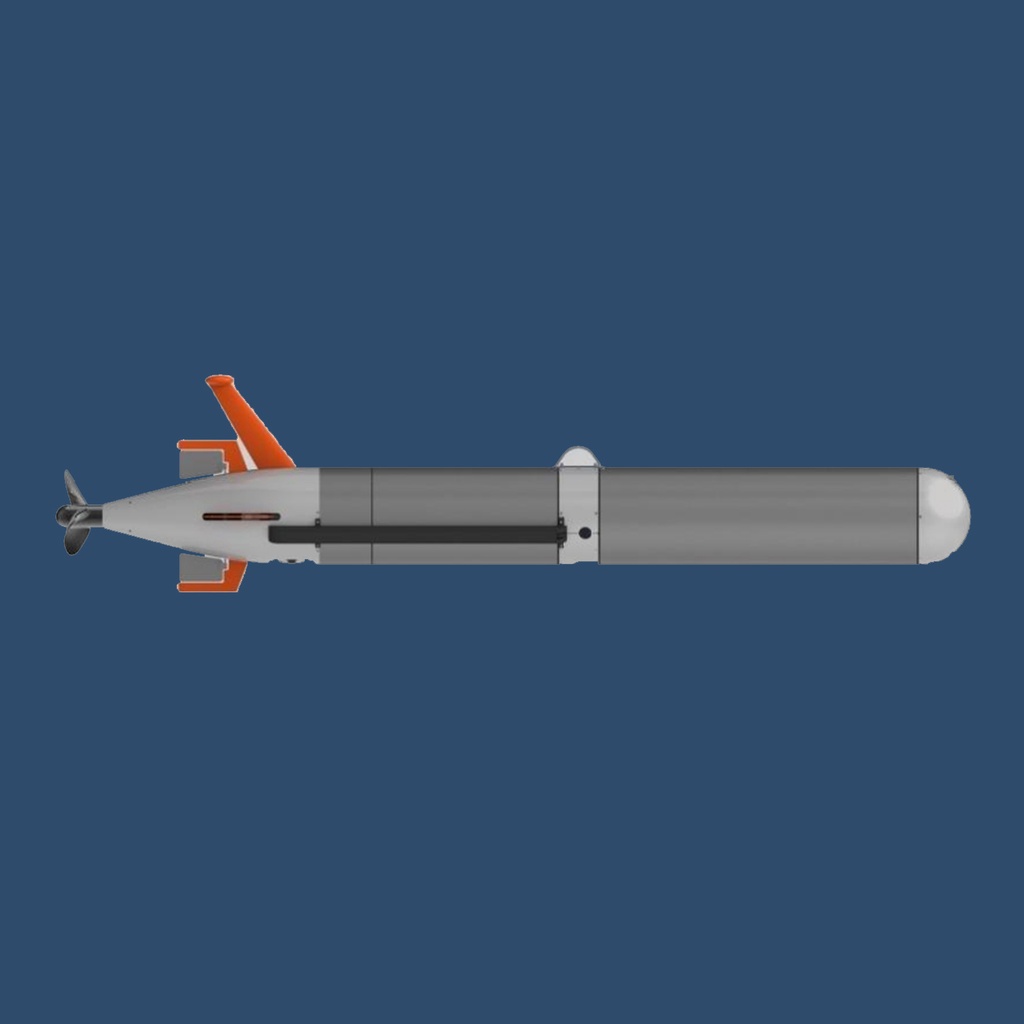

AUV-HJ1000M
Autonomous Underwater Vehicle (AUV)
Key Features
- Long-range AUV
- Modular Design
- Flexible sensor integration: acoustic, optical, magnetic
- Maximum Operating Depth: 1000 meters
- Long endurance range (4,000 km)
- Maximum speed: up to 3 knots (customizable)
- Customizable energy capacity
| Diameter: 350mm |
| Length: 3500mm |
| Weight: 300kg |
| Estimated Endurance: 150h@3kn |
| Maximum Range: 4000km |
| Speed: 0-3kn |
| Doppler Velocity Log: Nortek DVL1000 |
| Side Scan Sonar: ES4590(450kHz-150m/900kHz-75m) |
AUV-HJ300M
Autonomous Underwater Vehicle (AUV)
The AUV-HJ1000M is a long-range Autonomous Underwater Vehicle (AUV) engineered for extended missions and advanced ocean exploration. Designed with a larger payload capacity and superior endurance, it supports the integration of diverse high-performance sensors and equipment, enabling complex and large-scale underwater operations.
With its powerful navigation and control system, the AUV-HJ1000M delivers stable performance in challenging marine environments. Its extended range and exceptional payload capability make it an ideal choice for deep-sea exploration, environmental monitoring, hydrographic surveys, resource assessment, and scientific research.
Applications

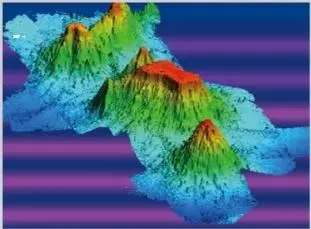

Marine Scientific Research
- Monitoring key water parameters: temperature, salinity, chlorophyll, and turbidity
- Monitoring of biological community distribution
- Seafloor topography and geomorphology mapping
- Acquisition of ocean ambient noise data

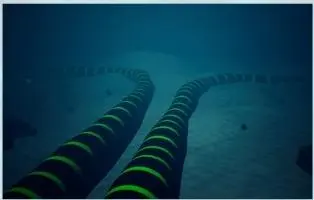

Underwater Inspection
- Inspection of subsea infrastructure: pipelines and cables
- Inspection of wind turbine and offshore platform pile foundations

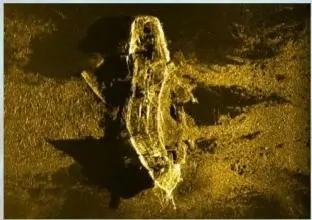

Marine Exploration
- Exploration of underwater structures, shipwrecks.
- Detection of underwater suspicious objects and targets
- Exploration of marine mineral resources
Specifications
Vehicle Specification | |
Diameter | 350mm |
Length | 3500mm |
Weight | 300kg |
Estimated Endurance | 150h@3kn |
Maximum Range | 4000km |
Standard Specifications,Sensors and Payloads | |
Depth Rating | 1000m |
Speed | 0-3kn |
Propulsion and Control | Three-blade propeller with cruciform rudder control for pitch and yaw |
Buoyancy control | Precision buoyancy control system enables hovering at any underwater depth. |
Operating modes | Constant-depth cruising,Constant-altitude cruising,Depth-hold hovering, Sawtooth profiling |
Communications | UHF wireless,BeiDou(SMS)module/Tiantong, High-frequency acoustic communication,4G,WiFi |
Surface positioning | GPS,BeiDou GNSS positioning |
Navigation | Dead reckoning:FOG INS+DVL,Electronic compass+DVL(Low power mode) Acoustic positioning:SSBL beacon/LBL beacon(Optional) |
Doppler Velocity Log | Nortek DVL1000 |
Side Scan Sonar | ES4590(450kHz-150m/900kHz-75m) |
Other Sensors | MinilPS Depth-altitude gauge,XSENS MTi-630 Attitude sensor |
Warranty | 1-year warranty with additional warranty options available |
External Connections | Charging port,WiFi |
Safety Features | Ground fault monitoring,Leak detection,Emergency jettison system |
Auxiliary Equipment | Shockproof transport case,Rugged laptop,Hub box,Maintenance tools |
Optional Payloads,Equipment | |
Optical survey | HD camera··· |
Water monitoring | CTD,Turbidity,Chlorophyll,Nitrate,CO2··· |
Acoustic inspection | Dual-frequency side-scan sonar, High-frequency SAS, Forward-looking imaging sonar··· |
Acoustic-magnetic survey | Hydrophone,Magnetometer,Towed array sona··· |
Related Products

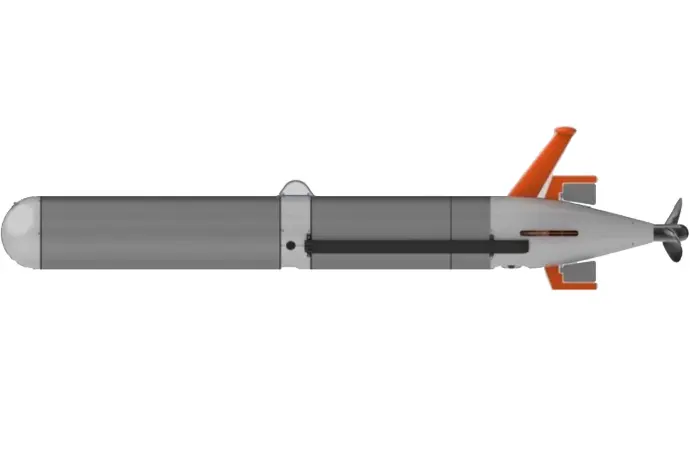

AUV-HJ300M
A portable and flexible AUV with a lightweight design and superior payload adaptability.

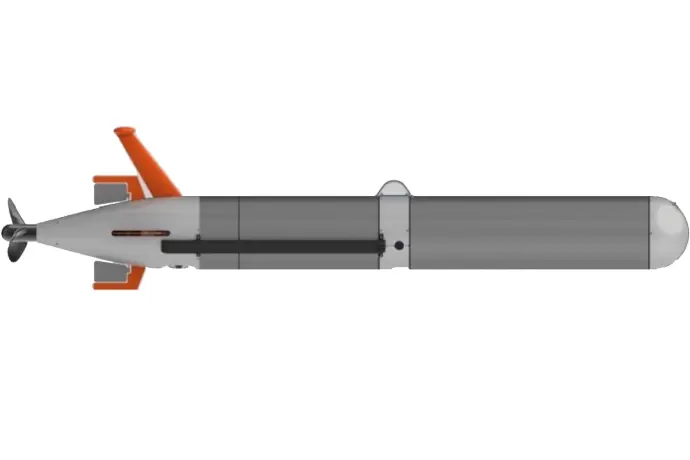

AUV-HJ1000M
