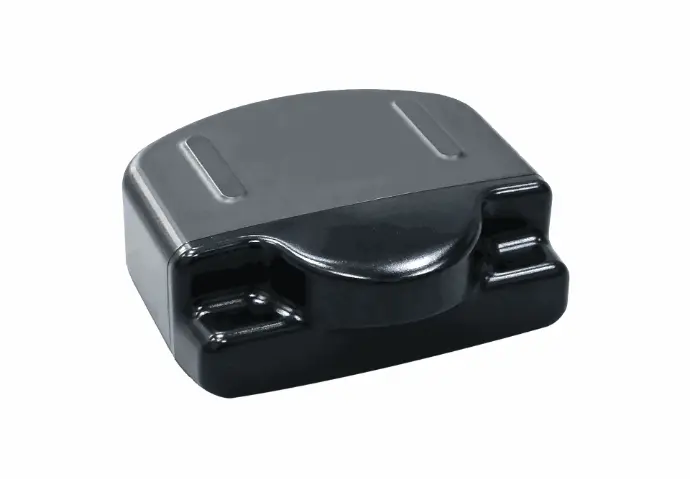

MiniUAC-1203 Small Forward-Looking Sonar
Most Balanced Performance Multibeam Forward-Looking Sonar (FLS)
The MiniUAC-1203 series miniature forward-looking sonar is a two-dimensional forward-looking multibeam imaging sonar. It provides forward acoustic vision for platforms operating in both clear and turbid waters, enabling target detection and identification, collision avoidance, and obstacle detection.
Compared with similar products available both domestically and internationally, this sonar offers superior performance, a wider range of operating frequencies and functions, smaller size, lower power consumption, and a competitive price. In addition, most configurations are available from stock for long-term supply. For configurations not currently in stock, the typical delivery time is within one month.
The MiniUAC-1203EL, currently on sale, represents the latest generation of the MiniUAC-1203 series. Compared with the previous generation, it features a higher frame rate, upgraded connectors with improved pressure resistance, and reduced size and weight. The MiniUAC-1203EL also supports an optional passive direction-finding function, allowing the sonar to rapidly scan sound sources within a specified frequency band and estimate their bearing.
The currently available operating frequencies include single-frequency configurations at 375 kHz, 700 kHz (collision avoidance), and 900 kHz, as well as dual-frequency configurations of 400 kHz / 700 kHz, 750 kHz / 1.2 MHz, 1.2 MHz / 1.8 MHz, and 1.2 MHz / 2.1 MHz.
MiniUAC-1203 Imaging Sonar
Key Features:
- High-Resolution Imaging: Multi-beam forward-looking sonar with fine angular resolution, delivering clear and stable target imaging.
- Wide Field of View: Up to 140° horizontal FOV enables broad-area forward detection and enhanced situational awareness.
- Reliable Detection Range: Effective detection range up to 80–200 m (frequency dependent), supporting safe navigation and obstacle avoidance.
- Compact & Lightweight Design: Miniature form factor with low power consumption, optimized for integration on small UUVs, ROVs, and USVs.
- Flexible Operating Modes: Supports CW and CHIRP transmission, with optional collision avoidance and passive direction-finding functions.
- Robust & Depth-Rated Housing: Rugged aluminum or titanium housing options, rated for 300 m to 1.5 km operating depth.
Overview
Specifications
Applications
- Collision Avoidance & Navigation:
Real-time forward acoustic imaging for safe navigation and obstacle avoidance in turbid or low-visibility waters. -
ROV / UUV Operations:
Enhances situational awareness during autonomous and remotely operated underwater missions. -
Underwater Inspection:
Supports close-range inspection of subsea structures, docks, piles, and confined spaces. -
Search & Target Detection:
Effective for detecting submerged objects, debris, and potential hazards ahead of the platform. -
Harbor & Confined Water Operations:
Ideal for operations in ports, harbors, and narrow waterways where visual sensors are limited.

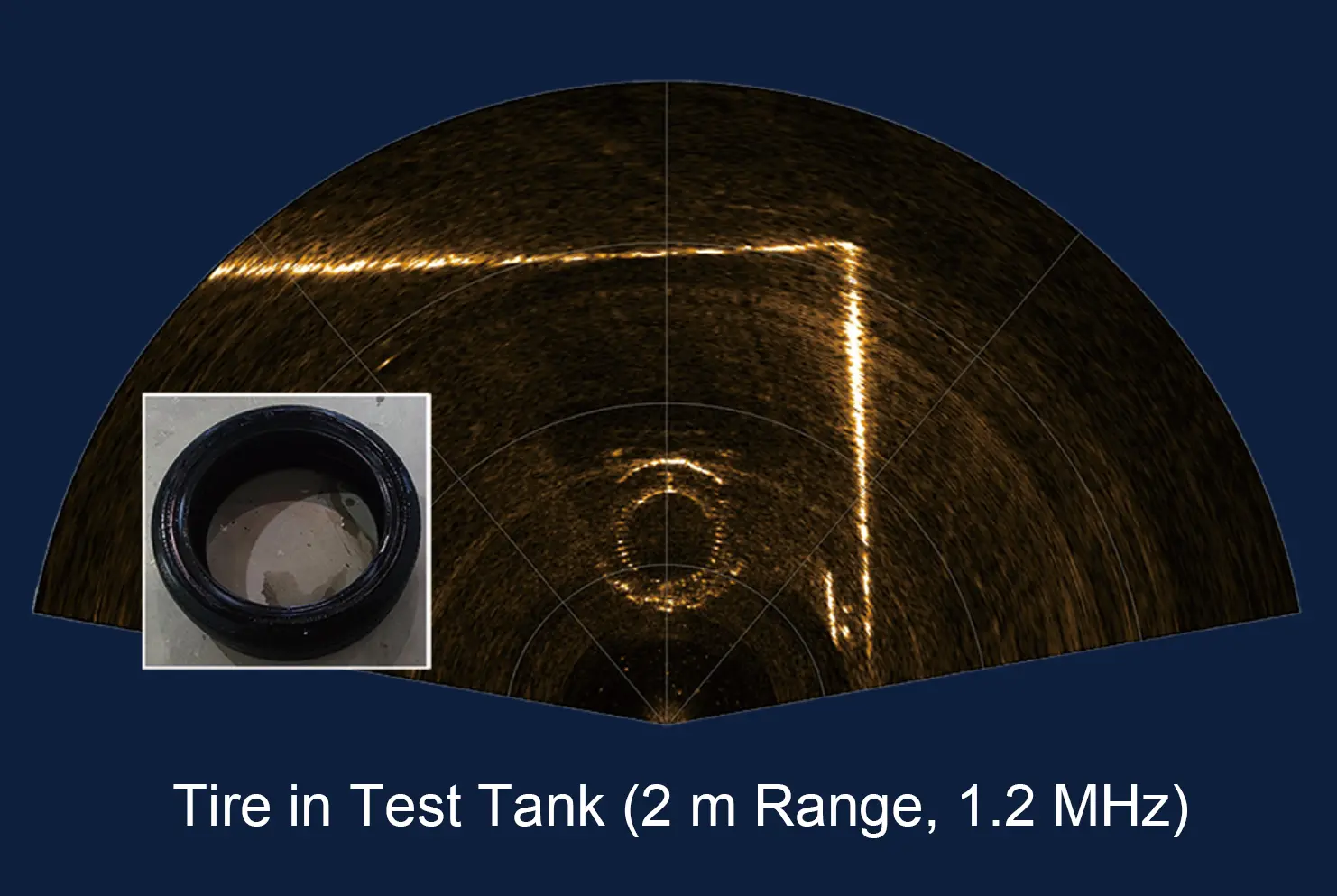

Imaging Examples

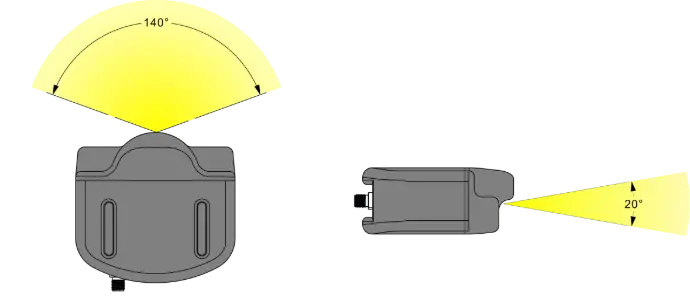

Horizontal/Vertical Beamwidth Diagram
AUV Communication & Navigation Kit
Compact Navigator & Underwater Acoustic Modem
Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.
- NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
-
UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.
