MiniUAC-1206   Forward-looking Sonar

2D forward-looking multibeam imaging sonar

For users with more stringent requirements on size, weight, and cost, the MiniUAC-1206 is a better choice. Compared with other forward-looking sonar models in the same product family, the MiniUAC-1206 features a smaller size, lower weight, and a highly competitive price, while maintaining uncompromised performance.

The MiniUAC-1206 supports dual-frequency operation, offers a maximum detection range exceeding 100 m, and provides selectable operating frequencies from 700 kHz to 1.8 MHz. An integrated obstacle avoidance algorithm assists users in identifying obstacles ahead.

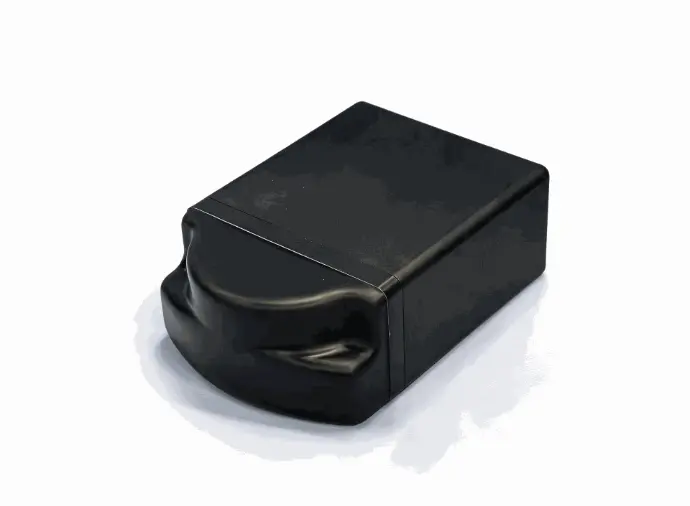

MiniUAC-1206-Forward-looking Sonar-china-sonar

MiniUAC-1206 Imaging Sonar

Key Features:

  • Ultra-Compact & Lightweight
    Designed for size-, weight- and cost-constrained platforms

  • 2D Forward-Looking Multibeam Imaging
    Clear forward acoustic vision in clear or turbid water

  • Dual-Frequency, Software Switchable
    Selectable frequencies from 700 kHz to 1.8 MHz

  • >100 m Detection Range
    Long detection range for a micro forward-looking sonar

  • Integrated Obstacle Avoidance (OAS Option)
    Real-time output of bearing and range to forward obstacles

▶ Request a quote

Overview

Product Description


The MiniUAC-1206 series micro forward-looking sonar is a 2D forward-looking multibeam imaging sonar capable of providing forward acoustic vision in both clear and turbid water environments. It enables target detection and identification, obstacle avoidance, and hazard detection. Key characteristics include compact size, light weight, and low power consumption.

Compared with similar products available both domestically and internationally, this product delivers high performance at a highly competitive price, while offering more frequency options, smaller dimensions, and lower power consumption. In addition, most configurations are available from stock for long-term supply. For non-stock configurations, the typical delivery time is within one month.

The MiniUAC-1206E, currently on sale, is the latest version in the MiniUAC-1206 series. It supports multiple frequency bands, including 700 kHz, 750 kHz, 1.1 MHz, 1.2 MHz, and 1.8 MHz. Other frequencies can be customized upon request. The sonar adopts a dual-frequency design, and the two operating frequencies can be switched via software.

The standard models support maximum operating depths of 300 m and 1.5 km. For deeper operating depths, please contact us.

★ Recommended models, usually available from stock.

Specifications

Specification E0900 E700C
Obstacle Avoidance		 E0712★ E1218
Operating Frequency 900 kHz 700 kHz 750 kHz / 1.2 MHz 1.2 MHz / 1.8 MHz
Horizontal Center Beamwidth 1.2° 1.5° 1.4° / 0.92° 0.92° / 0.65°
Min Horizontal FOV 140° 140° 140° 140° / 70°
Min Vertical FOV 20° 9° 20° 20° / 12°
Max Detection Range 80 m 110 m 100 m / 60 m 55 m / 20 m
Range Resolution 2.5 mm
Refresh Rate Up to 40 Hz (Dependent on range setting and operating mode)
Number of Beams 256 (512 or 768 available upon request)
Transmit Signal CW or CHIRP, automatic or manual selection
Max Operating Depth 300 m / 500 m / 1.5 km (to be specified when ordering)
Max Operating Speed 6 kn (Operation above this speed is possible but may reduce detection range)
Power Consumption 18 – 50 VDC; Average ~9 W, Peak < 20 W
Dimensions (W × H × D) 300 m version: 80(±1) × 43(±1) × 116(±3) mm; 1.5 km version: 86(±1) × 49(±1) × 122(±5) mm;
Excluding connector and cable
Weight (air / water) 300 m version: ~630 g / 280 g; 1.5 km version: ~1.1 kg / 710 g

Applications


  • Forward Obstacle Avoidance
    Real-time detection of obstacles and hazards ahead in low-visibility waters.
  • Underwater Target Detection
    Clear identification of submerged objects and structures using acoustic imaging.
  • ROV / AUV Navigation Support
    Reliable forward-looking vision for autonomous and remotely operated platforms.
  • Harbor & Infrastructure Inspection
    Inspection of docks, piers, and underwater facilities where optical methods fail.
  • Shallow Water Survey & Engineering
    Acoustic visualization support for shallow-water survey and underwater operations.

Imaging Example

​

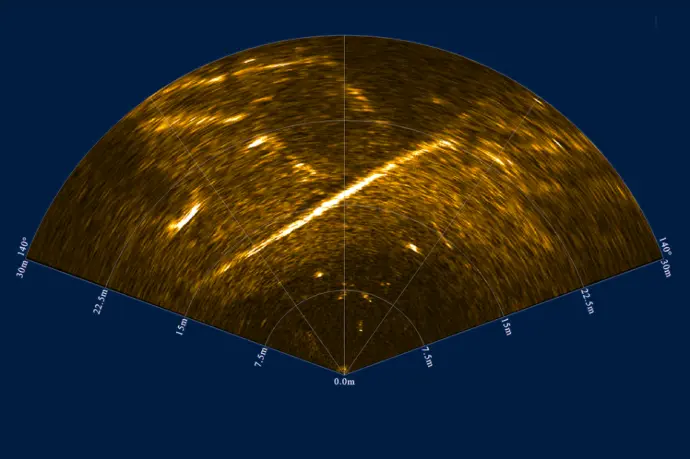

Underwater Topography and Objects (1.2 MHz, 30 m Range)-MiniUAC-1206-Forward-looking SonarUnderwater Topography and Objects
 (1.2 MHz, 30 m Range)

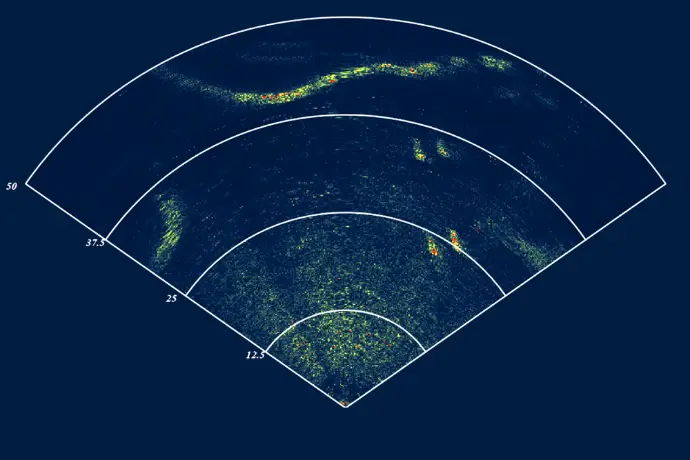

Ponds, Bridge Piers and River Banks (750 kHz, 50 m Range)-MiniUAC-1206-Forward-looking SonarPonds, Bridge Piers and River Banks
(750 kHz, 50 m Range)

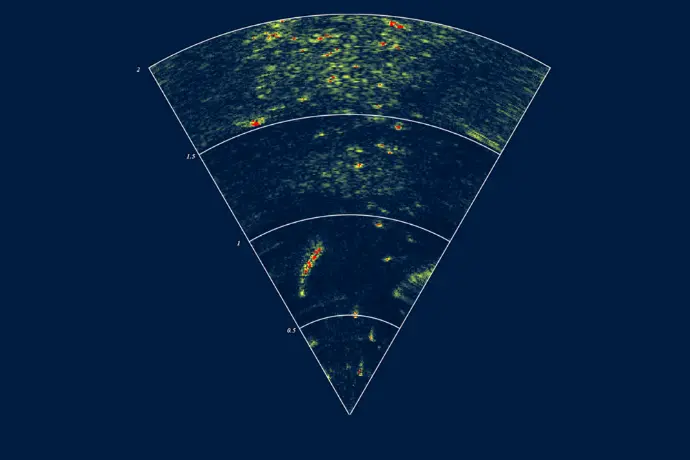

Fish (1.2 MHz, 2 m Range)-MiniUAC-1206-Forward-looking SonarFish (1.2 MHz, 2 m Range)

AUV Communication & Navigation Kit Compact Navigator & Underwater Acoustic Modem

AUV Communication & Navigation Kit

Compact Navigator & Underwater Acoustic Modem

Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.

  • NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
  • UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.

Discover more

Documents


MiniUAC-1206 DATASHEET​
