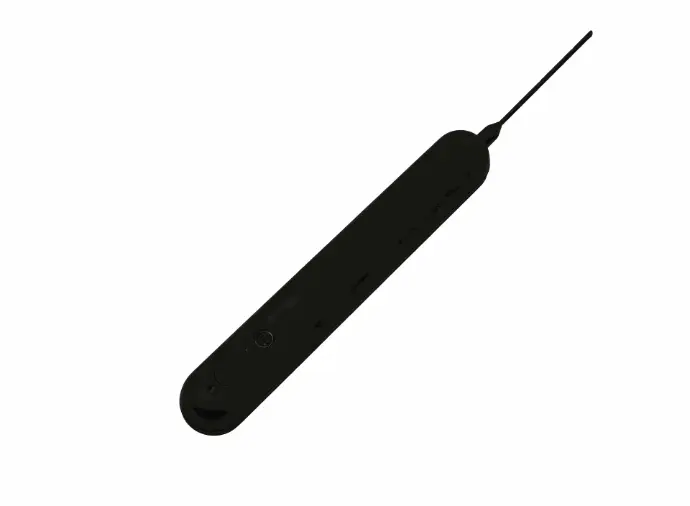

MiniUAC-2003 Small Side Scan Sonar
150 m / 75 m Wide Swath Side Scan Sonar (450 kHz/900 kHz)
MiniUAC-2003 is a multifunctional scanning sonar specifically designed for UUVs, ROVs, USVs, and small surface vessels. Except for the side-scan sonar function, all other functions are optional. The system features an integrated design, combining side-scan sonar, down-scan sonar, depth sounder, and attitude sensor into a streamlined underwater module. It connects to a topside computer via Ethernet, enabling real-time acquisition of scanning data. All functions can operate simultaneously with concurrent data output.
Unlike conventional embedded side-scan sonars, the MiniUAC-2003 integrates all electronic subsystems directly within the underwater module. Users only need to connect power and an Ethernet interface, eliminating the need for a separate electronics housing or reserved space for additional electronic units. This integrated sonar design significantly simplifies system integration and saves valuable space on the host platform.
The side-scan sonar and down-scan sonar operate at 450 kHz or 900 kHz, selectable at the time of ordering. The standard maximum operating depth is 300 m, with optional versions rated for 1500 m and 3000 m available.
Overview
MiniUAC-2003 Imaging Sonar
Key Features:
- Scan Coverage:
Wide swath coverage, with a maximum range of up to 150 m per side (450 kHz) or 75 m per side (900 kHz). - Imaging Principle:
High-resolution side-scan and down-scan imaging, supporting stable operation at survey speeds up to 6 knots. - Physical Characteristics:
Compact integrated design with low power consumption and all electronics housed within the underwater module. - Technical Support:
Compatible with ROVs, UUVs, USVs, and small surface vessels, with Ethernet interface and SDK support for system integration.
Specifications
Applications
- Hydrographic Survey & Seabed Mapping: Provides nearshore mapping and seabed analysis.
- Cable & Pipeline Inspection: Enables accurate detection and tracking of subsea cables and pipelines.
- Search & Recovery: Supports efficient location of wreckage, debris, and lost underwater equipment.
- Underwater Structure & Harbor Inspection: Offers detailed imaging of ports, harbors, docks, and submerged structures.
- Environmental & Archaeological Survey: Assists habitat mapping, sediment studies, and underwater archaeological research.

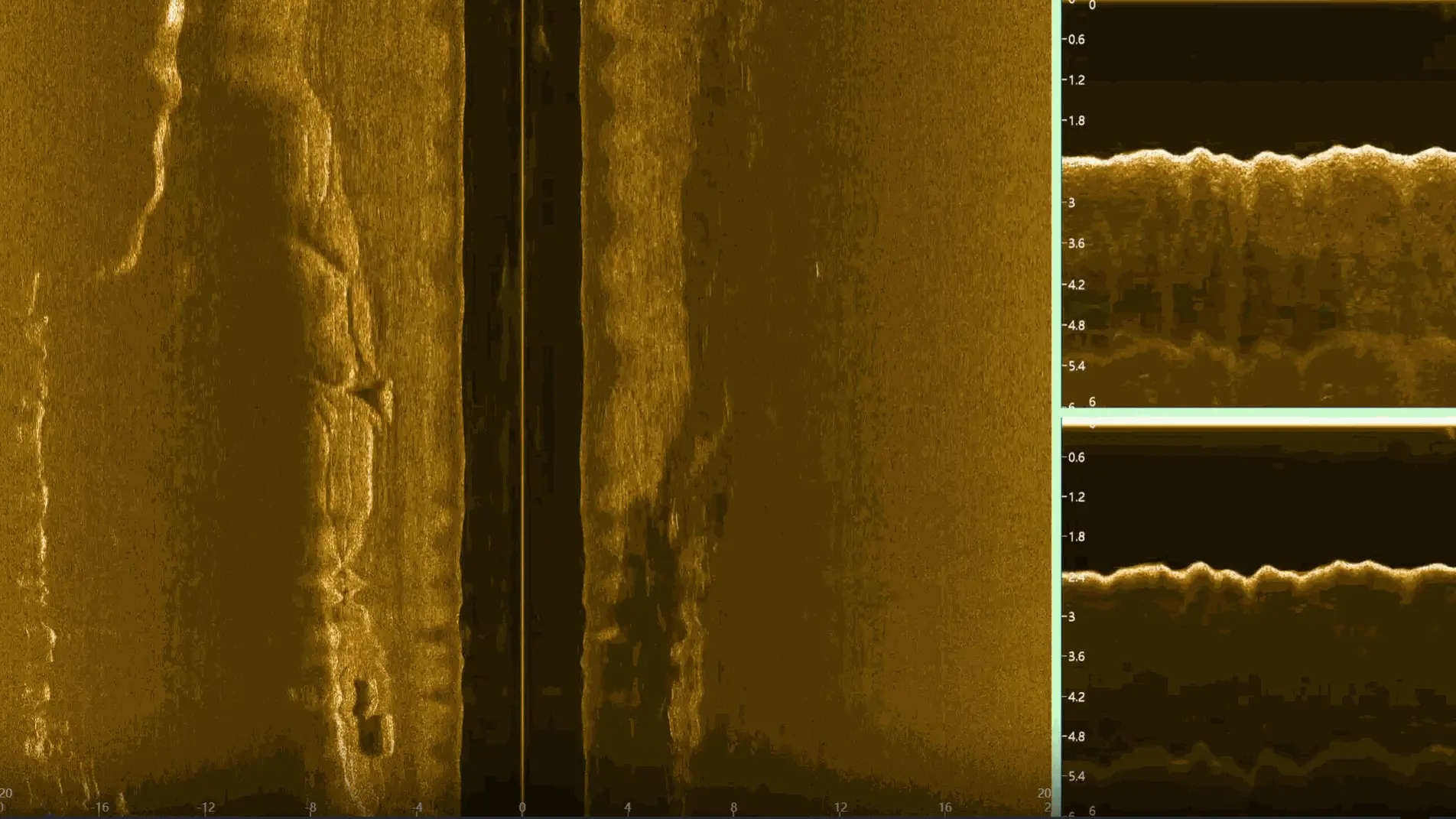

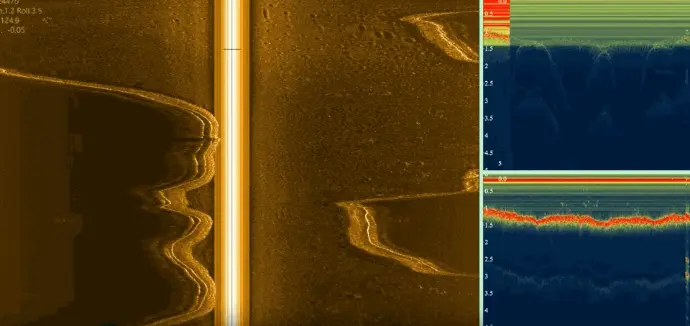

Sonar Image Example
AUV Communication & Navigation Kit
Compact Navigator & Underwater Acoustic Modem
Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.
- NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
-
UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.
