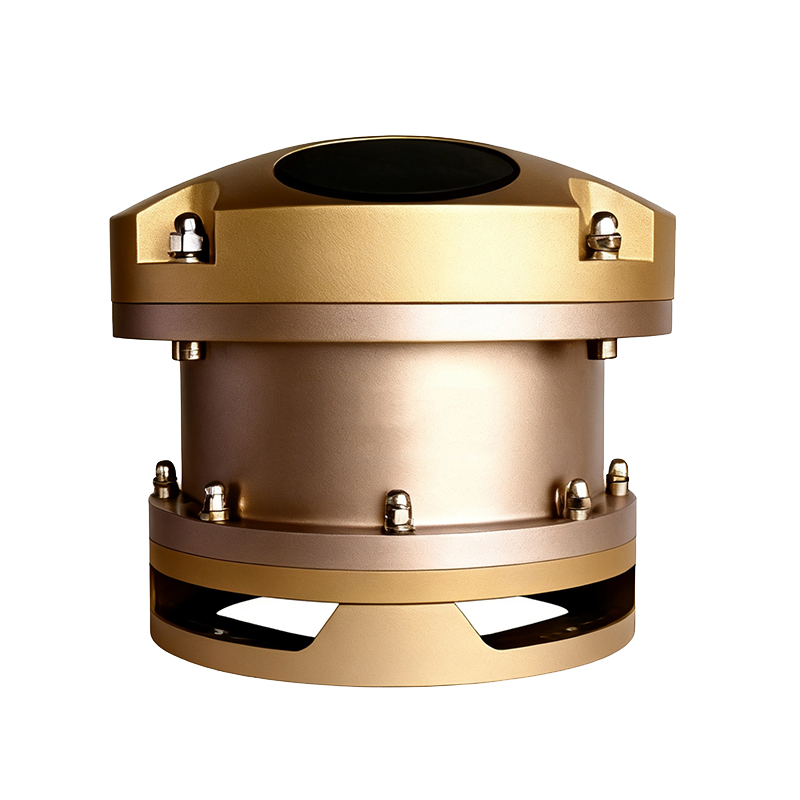

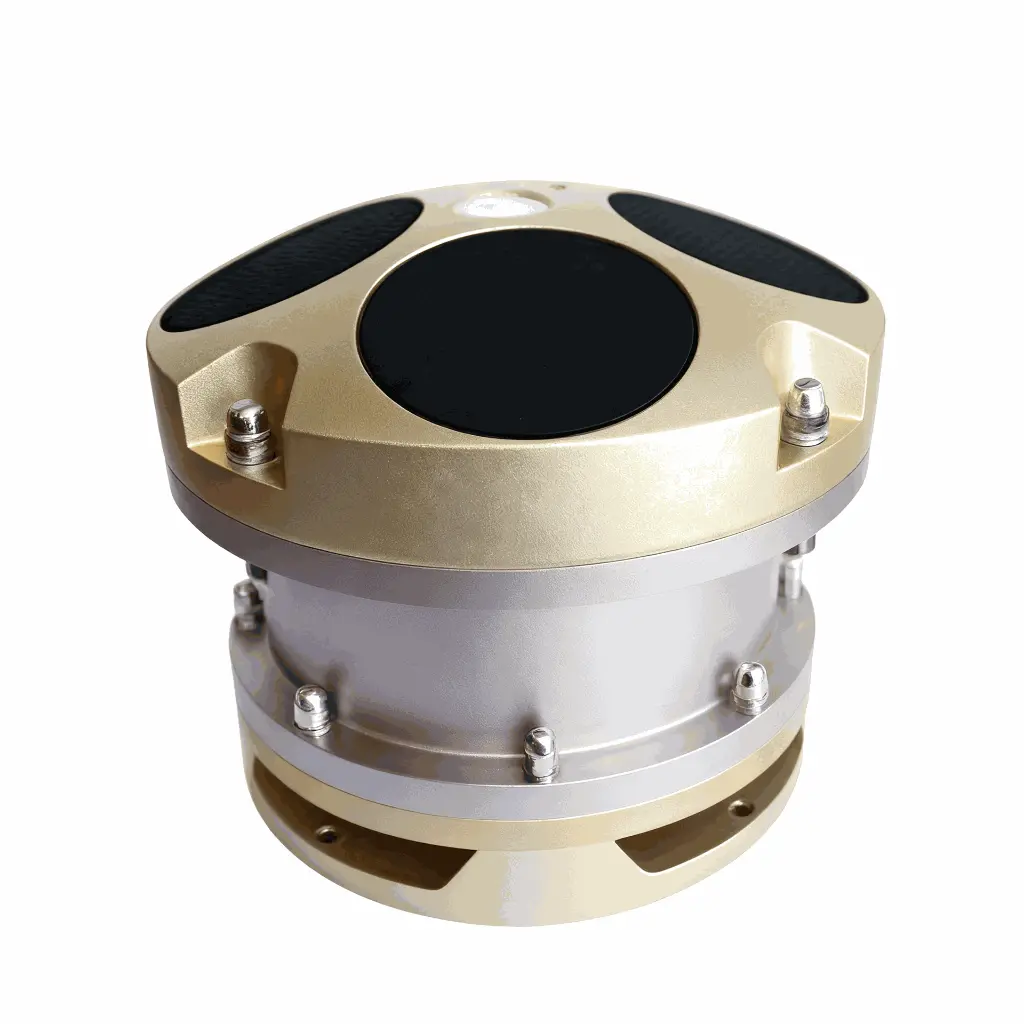

ADCP-300K

https://china-sonar.com/web/image/product.template/23/image_1920?unique=90ad686

Acoustic Doppler Current Profiler 300kHz

Key Features

  • Long Range
    In wide-beam working mode, the ADCP-300K can measure flow velocity up to 160 meters.
  • High Accuracy
    Velocity measurement accuracy: 0.5% ± 0.5 cm/s.
    ADCP ensures stable long-term operation with reliable data output.
  • Low Power Consumption
    Utilizes low-power technology with an average power consumption of only 3.2 W.
  • High Reliability
    Built with mature hardware design, ensuring stable and reliable performance.
  • Wi-Fi Data Transmission
    Supports RS232, RS485, and Wi-Fi transmission. Enables wireless device connection and data transfer with a range of up to 20 m.
  • Multiple Working Modes
    Supports navigation mode, flow measurement mode, self-adaptive mode, and bottom tracking mode .
  • Customizable Software
    Fully independently developed current measurement software, customizable according to user requirements.

0.00 0.0 USD 0.00 VAT Included

0.00 VAT Included

    This combination does not exist.

    Terms and Conditions
    Shipping: 15-30 Business Days

    Specifications

    Specification Parameter
    Working Frequency300 kHz
    Transducer TypePiston
    Beam Configuration4 Beams
    Velocity Accuracy0.5% ±0.5 cm/s
    Velocity Range±5.0 m/s (Typical), ±20.0 m/s (Maximum)
    Velocity Resolution1 mm/s
    Water Profiling Range2 – 160 m
    Bottom Tracking Range1.5 – 200 m
    Number of Depth Cells1 – 260
    Depth Cell Size1 – 8 m
    Ping Rate10 Hz (Max)
    Working ModesBroadband
    Pressure Rating200 m (Standard); 1000 m (Optional); 3000 m (Optional)
    SensorTemperature, Compass, Motion, Pressure
    Power Input9 – 18 V DC (standard 12 V)
    Power Consumption3.2 W (average), 0.5 W (sleep), 30 W (peak)
    CommunicationsRS-232, RS-422, Wi-Fi; Baud rate: 4800 – 115200
    Internal Memory16 GB
    MaterialEngineering plastic, aluminum alloy, titanium alloy

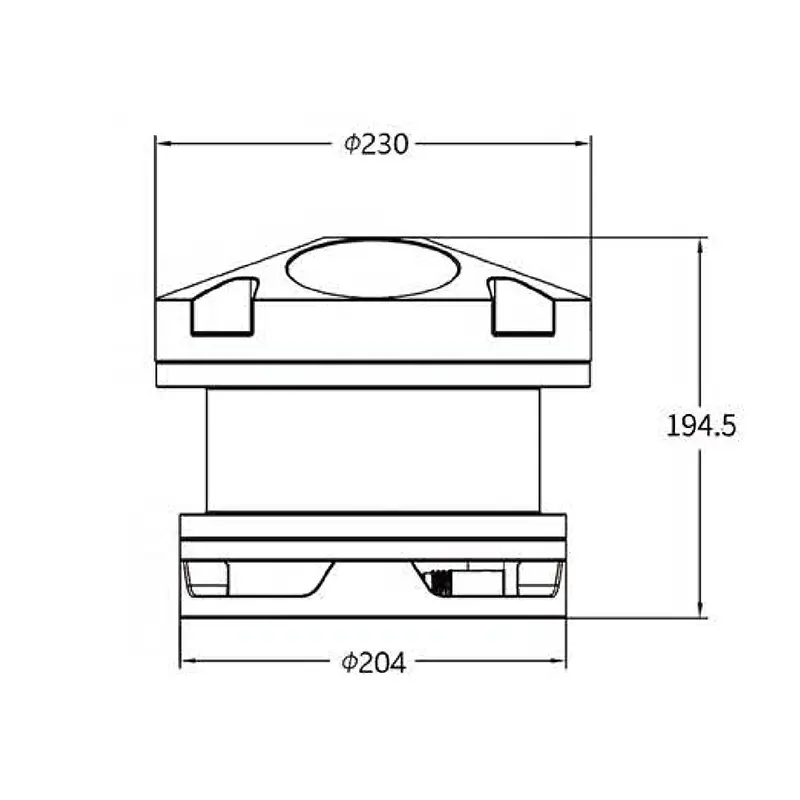

    Dimension (excluding connector)Φ230 mm × 195 mm
    AccessoriesADCP with Transducer Cables, Charger, Processing software

    Applications


    • Water Conservancy and Hydrology
    • Marine Engineering
    • Waterway Systems
    • Environmental Protection Systems
    • Marine Systems
    • Scientific Research Institutes
    • Underwater Navigation

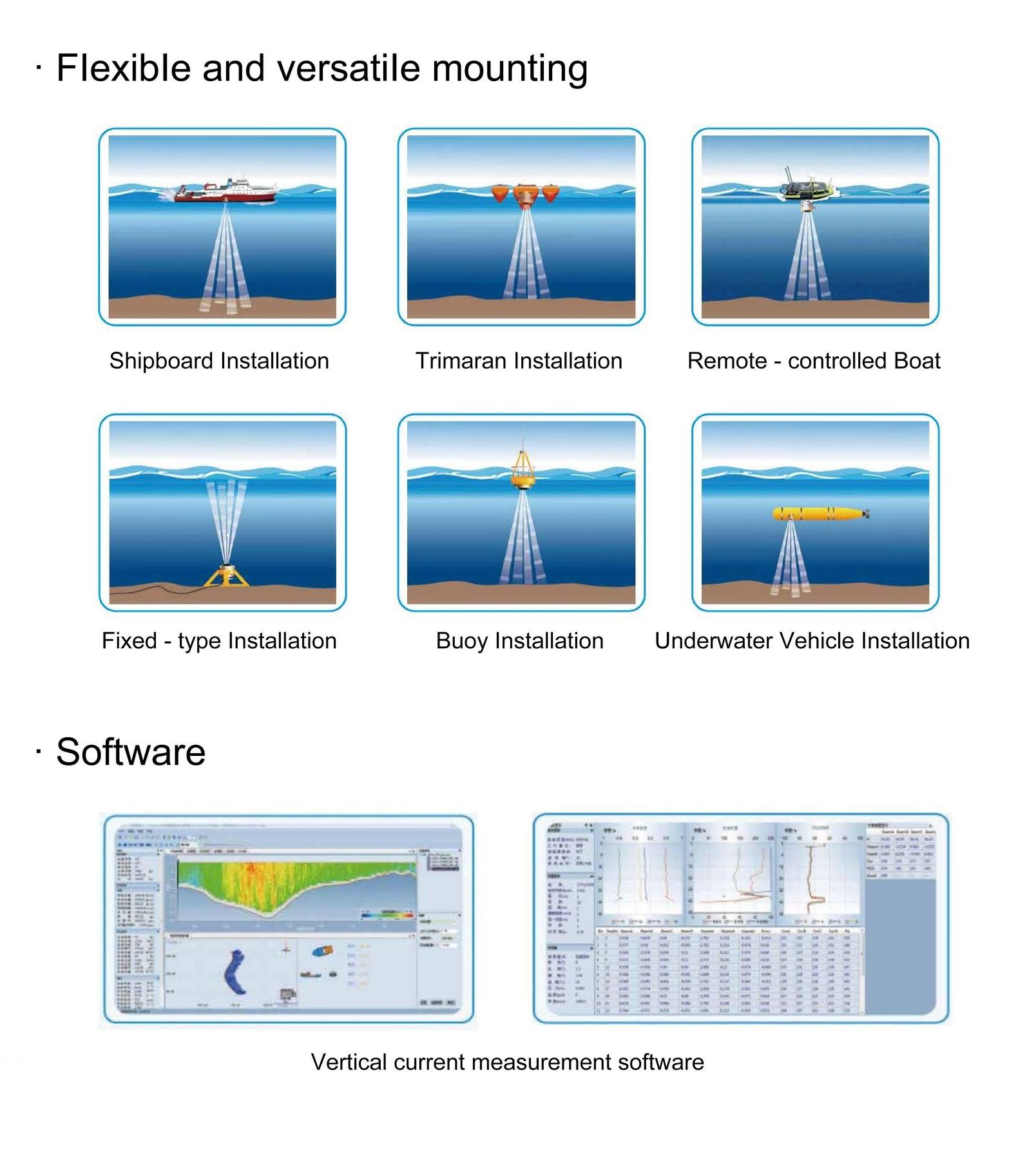

    Installation Methods


    ADCP-300K Installation Methods
