Doppler Velocity Log phased-array

Key Features
  • High-accuracy bottom tracking: ±0.2% ±1 mm/s, resolution down to 0.05 mm/s.
  • Phased-array beam design: 4-beam system, 2.3° beam width, 30° nominal angle.
  • Compact and lightweight: Transducer <0.6 kg; processor module <0.9 kg.
  • Multiple depth ratings: Standard 300 m; optional 3000 m or 6000 m.
  • Low power consumption: ≤15 W average, ideal for battery-powered missions.
  • Easy integration: Standard RS-422 interface, PD6 ASCII data format, INS compatibility.
  • Reliable operation: Wide operating temperature range and customizable pressure resistance.

$ 0.00 0.0 USD $ 0.00 VAT Included

$ 0.00 VAT Included

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: 15-30 Business Days

    System Composition

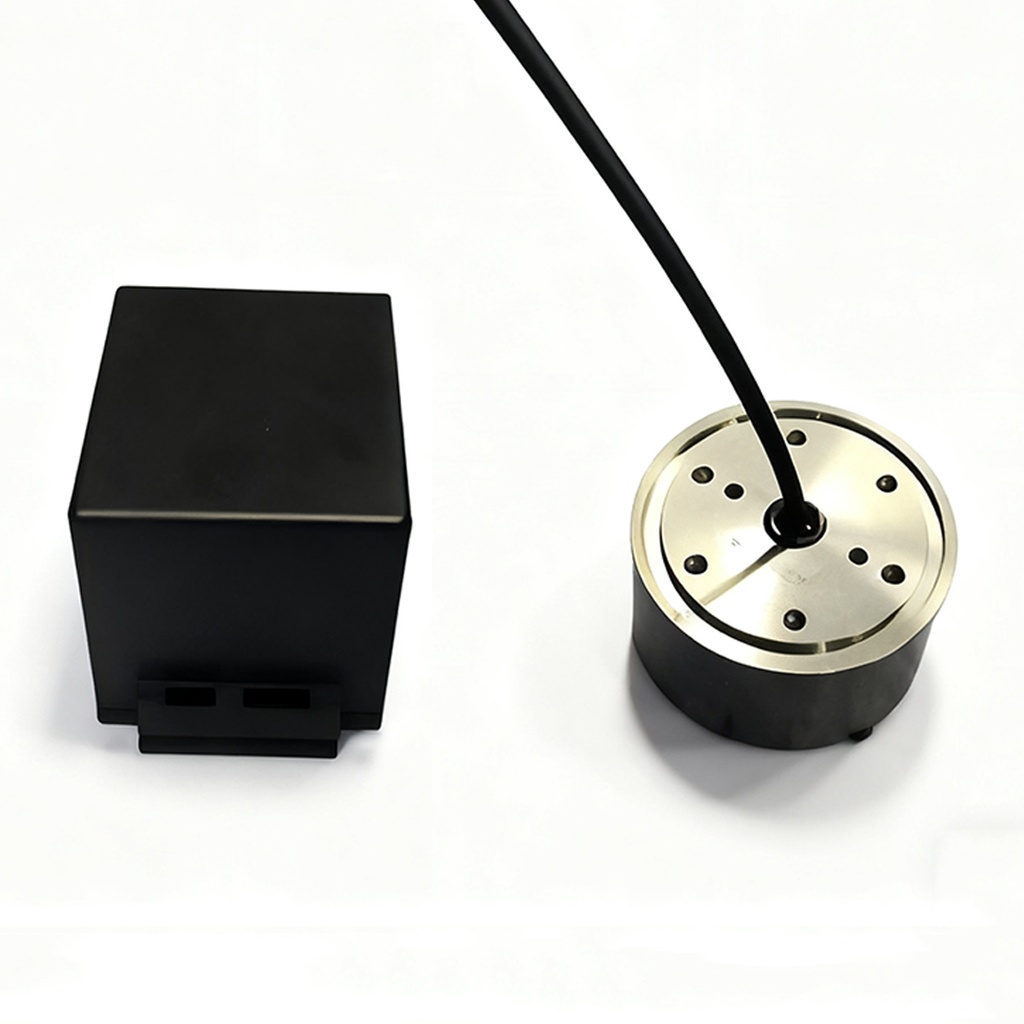

    The DVL-600K-Phased Doppler Velocity Log consists of two main components: the phased array transducer and the electronic chassis.

    • Phased Array Transducer (waterproof): Responsible for receiving velocity-sensitive acoustic signals to achieve precise velocity measurements.
    • Electronic Chassis (non-waterproof): Handles signal preprocessing, acoustic signal analysis, velocity computation, and acoustic transmission.

    In practice, the electronic chassis is typically installed in the dry compartment, while the transducer is mounted in the wet end, implementing a dry/wet separation design for easier system integration and maintenance.

    Specifications

    Specification Parameter
    Working Frequency600 kHz
    Array TypePhased Array (4 beams)
    Bottom Tracking Altitude1 m – 80 m
    Bottom Tracking Velocity Range±7.5 m/s
    Bottom Tracking Accuracy±0.2% ±1 mm/s
    Bottom Tracking Resolution0.05 mm/s
    Water Profiling Range2 m – 50 m
    Water Profiling Velocity Range±7.5 m/s
    Water Profiling Long-Term Accuracy±0.2% ±2 mm/s
    Source Level (re 1 μPa)215 dB @ 1 m
    Beam Width (1-Way)2.3°
    Beam Angle (Nominal)30°
    Maximum Operating Depth300 m (options: 3000 m, 6000 m)
    Current Profiling Capability10 m fixed layer
    Acoustic Array Pressure Resistance1 MPa (customizable per requirement)
    Velocity Measurement ModesBottom Tracking / Auto Current Tracking (automatic switching)
    Sound Speed CorrectionNot required
    Operating Voltage18 – 36 VDC
    Average Power Consumption≤ 15 W
    Operating Temperature−5 °C to +45 °C
    Storage Temperature−30 °C to +60 °C
    Electronic Chassis Dimensions125 × 100 × 100 mm
    Phased Array DimensionsΦ82.5 × 36 mm / Φ75 × 40 mm (excluding cable)
    WeightPhased Array: <0.6 kg; Signal Processing Module: <0.9 kg
    CommunicationsRS-422; Output Data Format: PD6 (ASCII); Frames Transmitted in Bottom Tracking Mode：:BI, :BD Frames Transmitted in Water Layer Tracking Mode：:WI, :WD

    Applications


    The DVL-600K-Phased is a compact, phased-array Doppler Velocity Log designed for precise underwater navigation and bottom tracking. With its lightweight design, low power consumption, and high-accuracy velocity measurement, it is ideal for integration into AUVs, ROVs, and USVs. Supporting multiple depth ratings (300 m / 3000 m / 6000 m), the DVL-600K-Phased provides reliable performance for both shallow-water and deep-sea missions.
