UAC-300S   Underwater Acoustic Camera

250m Wide Swath Side Scan Sonar (300kHz)

The UAC-300S side-scan sonar is a multi-beam side-scan sonar system developed to deliver efficient and high-clarity underwater detection and underwater imaging for applications such as target detection and positioning. Built upon the team’s extensive experience in imaging-sonar system design, low-noise electronic engineering, signal processing, and image processing, the system adopts a modular design philosophy with maturity and stability as its core principles. It integrates technologies such as dynamic focusing, low-noise and low-power electronic circuits, image equalization and enhancement, and real-time mosaicking for high-resolution sonar imaging.

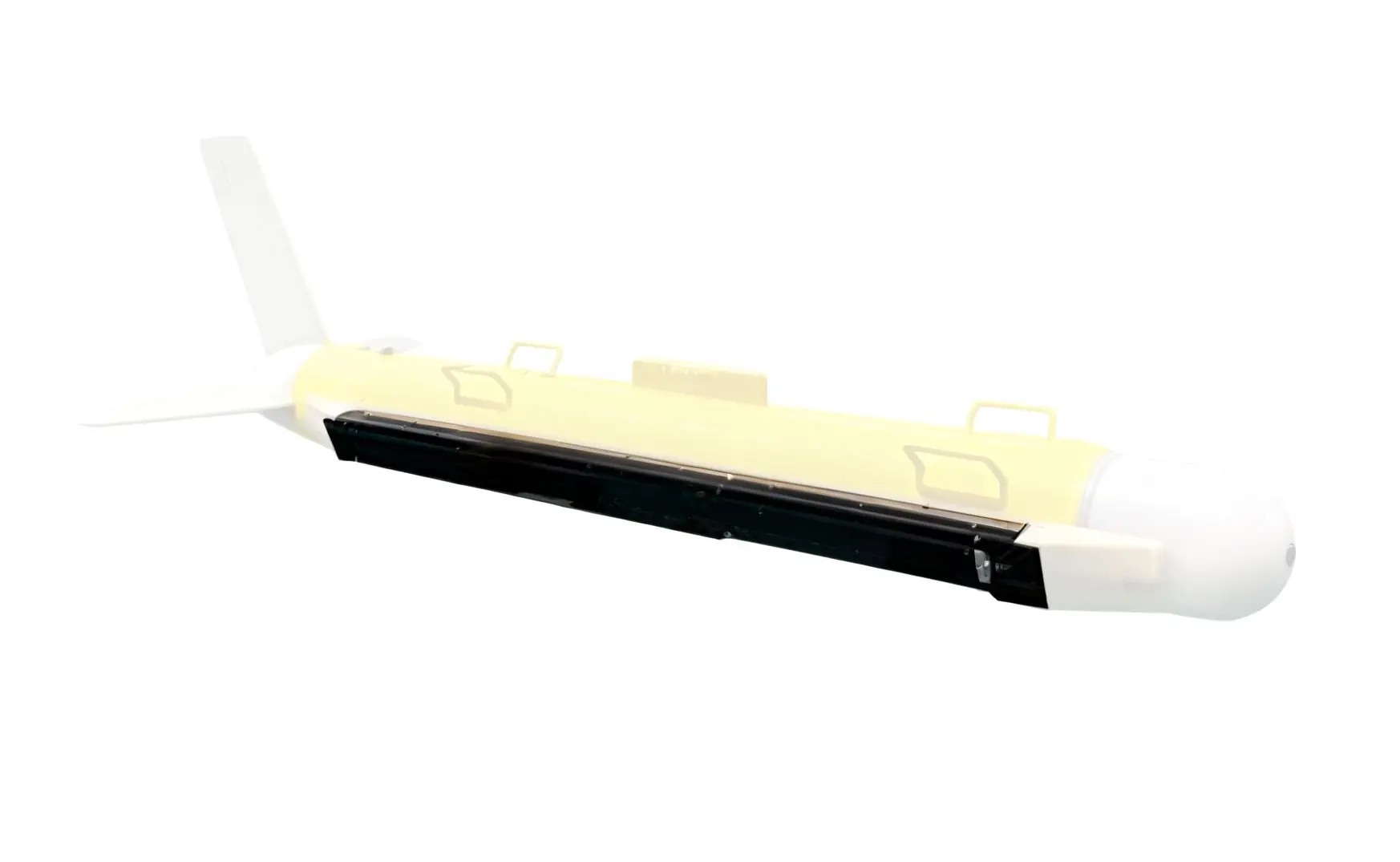

The side-scan sonar can be deployed on towfish, UUVs, and other underwater carrier platforms, offering clear imagery, stable performance, and ease of operation.

UAC-300S

Key Features:

  • Scan Coverage: Wide swath capability, with a maximum range of up to 250 m per side.
  • Imaging Principle: Supports high-speed detection and imaging, with survey speeds up to 9 knots.
  • Flexible Operation: Can be integrated with geographic information systems for convenient operation.
  • Wide Applications: Compatible with multiple carrier platforms, including towfish and UUVs for underwater imaging.​

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating FrequencyCenter frequency 300 kHz, bandwidth 25 kHz
Beam AngleHorizontal 0.22°, vertical 40°
Maximum Detection Range250 m per side, 500 m total (dual-side)
Image Resolution8.0 cm × 2.5 cm
Beam & Speed AdaptationSupports 1–20 beam adjustment at different operating speeds
Communication Interface100 Mbps / 1 Gbps auto-adaptive Ethernet
Power Supply / Consumption18–36 VDC, typical power consumption 35 W
Maximum Operating Depth300 m (customizable)
Maximum Survey Speed10 kn
DimensionsTransducer: 1349 mm × 86 mm × 28 mm (per side)
Electronics pod: Ø150 mm × L550 mm
WeightTransducer: ≤6.5 kg (per side)
Electronics pod: ≤10 kg
Environmental ConditionsOperating temperature −10°C to 50°C
Storage temperature −40°C to 70°C
Software DevelopmentProvides GUI software or SDK; supports secondary development
Data StorageSupports DAT format or standard XTF format; supports long-duration offline data storage

Applications


  • Marine infrastructure and engineering surveys
  • Pipeline and cable route inspection
  • Detection of critical or sensitive underwater targets
  • Search, rescue, and rapid response operations
