UAM-16320X-II2S
3KM Mid-range Underwater Acoustic Modems (UAMs)
Deck Unit with Built-in Battery for Flexible Operation
The UAM-16320X-II2S is a deck-mounted underwater acoustic modem device operating within the 16–32 kHz frequency band, designed to provide reliable mid-range communication up to 3 km. Equipped with a built-in 7Ah@16.8V battery, the device supports approximately 8 hours of continuous operation on a single charge.

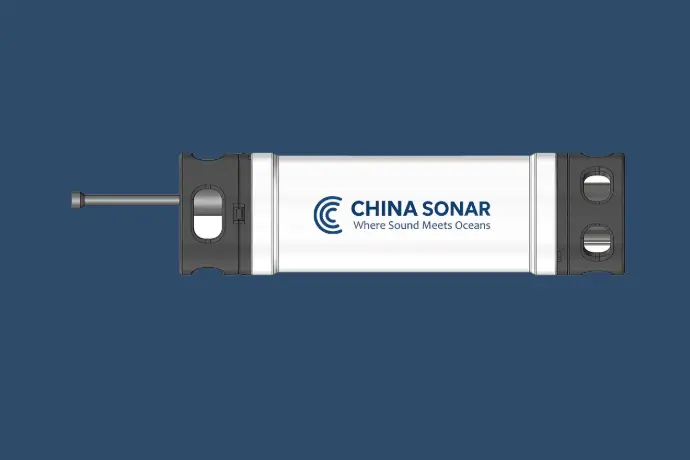

UAM-16320X-II2S
Key Features
- Reliable Mid-range Communication — Supports up to 3 km communication range with data rates from 100 bps to 4 kbps and a bit error rate of 10⁻⁴.
- Built-in Power Supply — Integrated 7Ah@16.8V lithium battery provides approximately 8 hours of continuous operation for field missions.
- Flexible Deployment — Supplied with a 50 m bearing cable (extendable), suitable for operations up to 30 m depth; pressure-resistant up to 4.5 MPa.
- Easy Control and Integration — Compatible with RS485/RS232/RS422 interfaces and operated via user-friendly upper-level software.
- Compact and Robust Design — Lightweight structure (6.1 kg in air / 4.8 kg in water) ensures easy handling and stable offshore deployment.
- Dual-mode Communication — Supports MASS and SC-MPSK modulation for adaptable underwater communication performance.
Overview

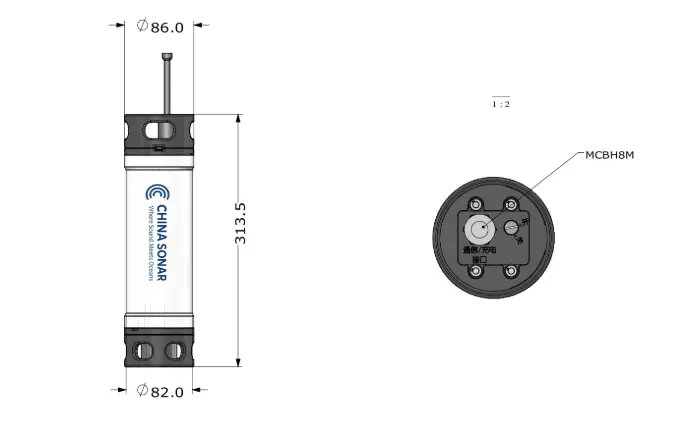

Specifications
Applications
- Offshore monitoring and communication
- Buoy-based observation systems
- Seabed base stations
- Short-range AUV/ROV communication links
- Marine environment data collection

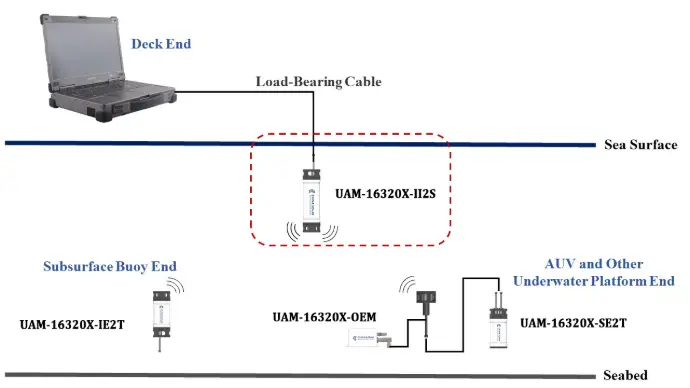

Application Diagram
Related UAM Product series
UAM-16320X Series
Frequency: 16kHz-32kHz
Communication Distance: 3km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300m
UAM-08160X Series
Frequency: 8kHz-16kHz
Communication Distance: 10km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300-6000m
UAM-04080X Series
Frequency: 4kHz-8kHz
Communication Distance: 30km
Communication Rate:100-1kbps
Bit Error Rate:
10⁻⁴
Operating Range: 6000m
AUV Communication & Navigation Kit
DVL-600K / DVL-300K & UAM-08160X Series
To meet the demanding requirements of Autonomous Underwater Vehicles (AUVs) for high-precision navigation and reliable communication, we offer the AUV Communication & Navigation Kit. This solution integrates the Doppler Velocity Log (DVL) with the Underwater Acoustic Modem (UAM) system, providing a comprehensive package for scientific research, underwater inspection, and long-range operations.
Working Principle
The UAM-16320X-II2S underwater acoustic modem operates by converting electrical signals into acoustic waves for data transmission through water. Using advanced digital signal processing and dual-mode modulation (MASS / SC-MPSK), it ensures stable and efficient underwater communication over long distances with a low bit error rate (BER 10⁻⁴).
During operation, the transducer emits precisely coded acoustic pulses that propagate through the water and are received by another modem, where they are demodulated and decoded back into digital data. The system automatically switches between transmit and receive modes under command control, optimizing power consumption while maintaining high communication reliability in complex underwater environments.
