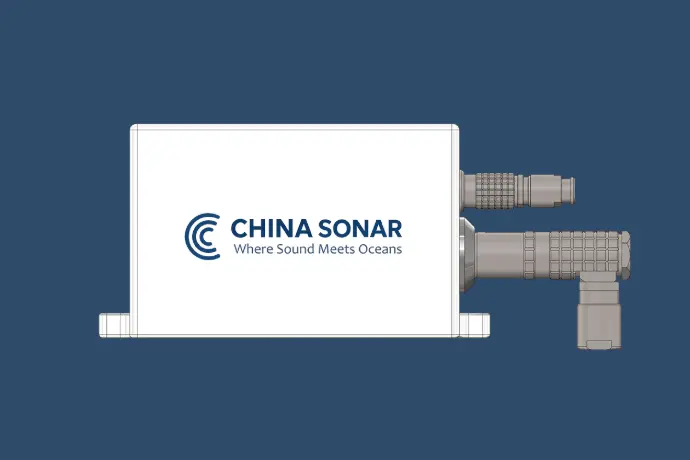

UAM-16320X-OEM
3KM Mid-range Underwater Acoustic Modems (UAMs)
Customized OEM Model for Deep Collaboration
The UAM-16320X-OEM underwater acoustic modem device is a deep-collaboration model, offered in an OEM form, capable of serving large platforms such as moorings, seabed stations, UUVs, gliders, wave gliders, and buoys. With OEM integration and extensive platform adaptation experience, it provides maximum flexibility for customers.
UAM-16320X-OEM
Key Features
- Reliable Shallow-Water Communication — Supports up to 3 km communication range with data rates from 100 bps to 4 kbps and a bit error rate of 10⁻⁴.
- OEM Customization — Designed as a deep-collaboration OEM model, providing maximum flexibility for integration with large platforms such as moorings, seabed stations, UUVs, gliders, wave gliders, and buoys.
- Flexible Deployment — Accompanied by an OEM sensor capable of operating at depths of up to 300 m, suitable for a variety of offshore and nearshore environments.
- Easy Control and Integration — Supports RS232/RS485/RS422 interfaces and standard control protocols, with technical support available for custom protocol development.
- Compact and Robust Design — Lightweight and small form factor (1 kg in air) ensures easy handling and seamless integration into diverse platforms.
Overview
Specifications
Applications
- Large Platform Integration — Suitable for moorings, seabed stations, UUVs, gliders, wave gliders, and buoys.
- Shallow-Water Communication — Reliable data links for coastal and nearshore monitoring.
- OEM Custom Missions — Flexible deployment for customized sensor and communication setups.
- Environmental & Oceanographic Monitoring — Supports scientific research, offshore observation, and real-time data collection.

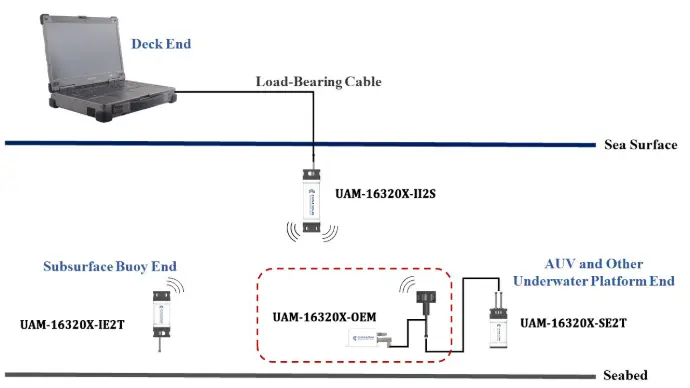

Application Diagram
Related UAM Product series
UAM-16320X Series
Frequency: 16kHz-32kHz
Communication Distance: 3km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300m
UAM-08160X Series
Frequency: 8kHz-16kHz
Communication Distance: 10km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300-6000m
UAM-04080X Series
Frequency: 4kHz-8kHz
Communication Distance: 30km
Communication Rate:100-1kbps
Bit Error Rate:
10⁻⁴
Operating Range: 6000m
AUV Communication & Navigation Kit
Compact Navigator & Underwater Acoustic Modem
Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.
- NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
-
UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.
