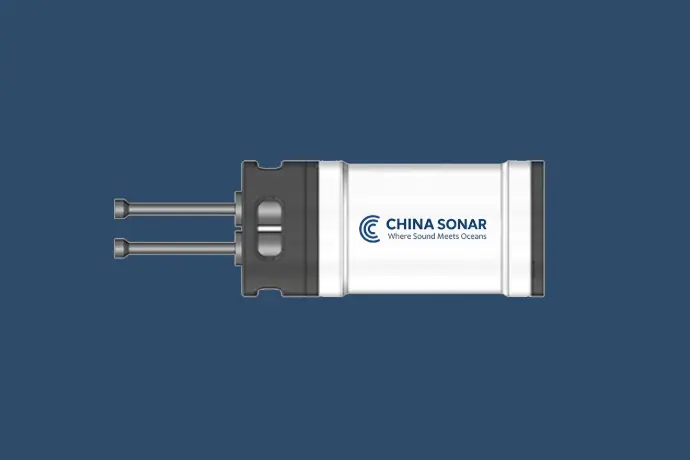

UAM-16320X-SE2T
3KM Mid-range Underwater Acoustic Modems (UAMs)
Externally Powered, Allowing Users to Design Custom Battery Compartments for Mission Requirements
The UAM-16320X-SE2T is a compact underwater acoustic modem device designed for shallow-water operations up to 300 meters, operating within the 16–32 kHz frequency band. Featuring a modular TC4 titanium alloy structure, it combines lightweight durability with excellent corrosion resistance. Externally powered, the device allows flexible integration with custom battery compartments to meet diverse mission requirements.
UAM-16320X-SE2T
Key Features
- Reliable Shallow-Water Communication — Supports up to 3 km communication range with data rates from 100 bps to 4 kbps and a bit error rate of 10⁻⁴.
- Externally Powered — Operates via DC 16.8V external power supply, allowing users to design custom battery compartments, reducing overall size and weight.
- Flexible Deployment — Designed for shallow-water operations up to 300 m, suitable for coastal and nearshore environments.
- Easy Control and Integration — Compatible with RS232/RS485/RS422 interfaces, supporting standard control protocols with optional technical support for custom protocol development.
- Compact and Robust Design — Lightweight and small form factor (2.5 kg in air / 1.67 kg in water) ensures easy handling and deployment.
Overview
Specifications
Applications
- Marine Observation – Coastal and nearshore environmental monitoring.
- AUV/ROV Communication – Reliable shallow-water data links for autonomous or remotely operated vehicles.
- Shallow-Water Surveys – Suitable for hydrographic, ecological, and environmental studies.
- Offshore Monitoring – Supports real-time communication for platforms and buoy systems.

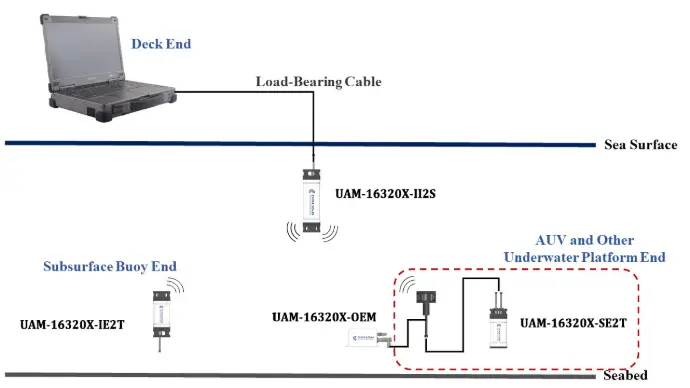

Application Diagram
Related UAM Products series

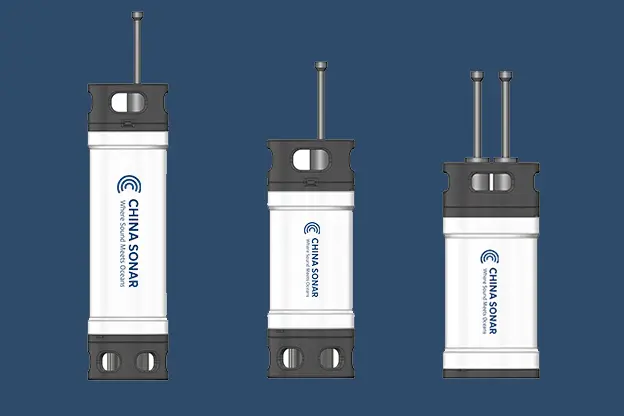

UAM-16320X Series
Frequency: 16kHz-32kHz
Communication Distance: 3km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300m
UAM-08160X Series
Frequency: 8kHz-16kHz
Communication Distance: 10km
Communication Rate:100-4kbps
Bit Error Rate:
10⁻⁴
Operating Range: 300-6000m

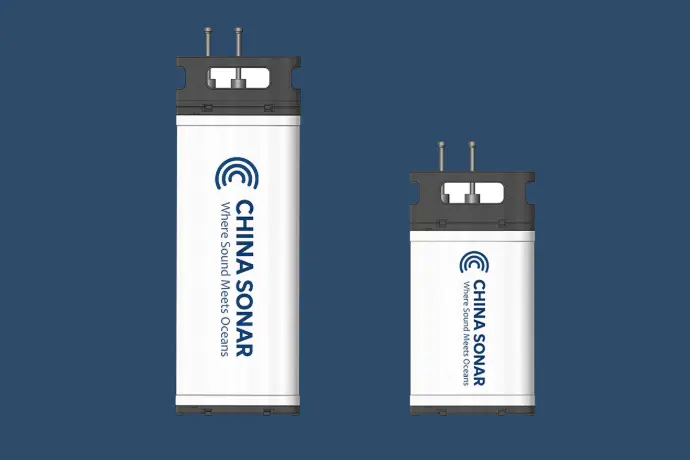

UAM-04080X Series
Frequency: 4kHz-8kHz
Communication Distance: 30km
Communication Rate:100-1kbps
Bit Error Rate:
10⁻⁴
Operating Range: 6000m
AUV Communication & Navigation Kit
Compact Navigator & Underwater Acoustic Modem
Designed for Autonomous Underwater Vehicles (AUVs), the AUV Communication & Navigation Kit delivers high-precision navigation and reliable underwater communication in a unified solution.
- NAVS-3000 Compact Navigator — Provides INS-based positioning, DVL velocity measurements, and depth data for precise real-time navigation.
-
UAC-08160X-OEM Underwater Acoustic Modem — Ensures stable, long-range underwater communication across multiple frequency bands.
Working Principle
The UAM-16320X-IE2T operates as a shallow-water underwater acoustic modem, transmitting and receiving acoustic signals within the 16–32 kHz frequency band. The device supports half-duplex communication, switching between transmit mode and receive mode to ensure reliable mid-range data links up to 3 km.
Equipped with an externally powered compact design, the modem converts electrical signals into sound waves for underwater propagation and decodes incoming acoustic signals back into digital data, providing stable and efficient communication for coastal, nearshore, and shallow-water applications. The TC4 titanium alloy housing ensures durability and corrosion resistance in harsh marine environments.
