MiniUAC-FLS700D Dual-Frequency Forward Looking Sonar
Shallow & Turbid Water Ready | 200m Ultra-Range, Full Coverage Scan
200kHz / 400kHz Imaging Sonar for ROV, AUV & USV
MiniUAC-FLS700P is a broadband high-definition real-time forward-looking target search sonar specially designed for surface and underwater platforms. It delivers centimeter-level high imaging resolution with a 180° panoramic field of view, offering maximum coverage for underwater exploration.
Equipped with state-of-the-art digital broadband image processing and broadband noise reduction technology, it maintains high-quality imaging under low-visibility conditions to perform underwater target detection, collision avoidance and obstacle survey. Featuring compact size, light weight and high integration, it is ideal for platforms with limited installation space. Typical applications include underwater target search, port security and marine construction.
Overview
MiniUAC-FLS700D Imaging Sonar
Key Features:
-
Operating center frequency
Dual-Frequency Switching 200kHz / 400kHz. - Max Detection Range ≥200m
Max detection distance ≥200m, subject to target strength & hydrological conditions - Panoramic Field of View
Max horizontal angle 180°, maximum scanning coverage for underwater survey - Centimeter Level Resolution

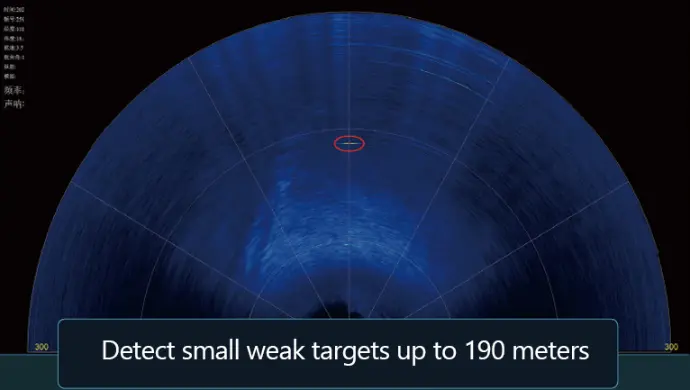

High definition imaging in low visibility, detect small weak underwater targets precisely - Advanced Image Processing
Digital broadband imaging & broadband noise reduction technology
Specification
Applications
- Small Underwater Target Detection: reef, diver, fishing net detection
- Obstacle Avoidance: surface vessel, underwater vehicle, unmanned platform navigation
- Port Security: underwater perimeter monitoring
- Subsea Pipeline Inspection
- Underwater Structure Inspection: dam, pile & substructure survey
- Ocean Engineering & Subsea Survey

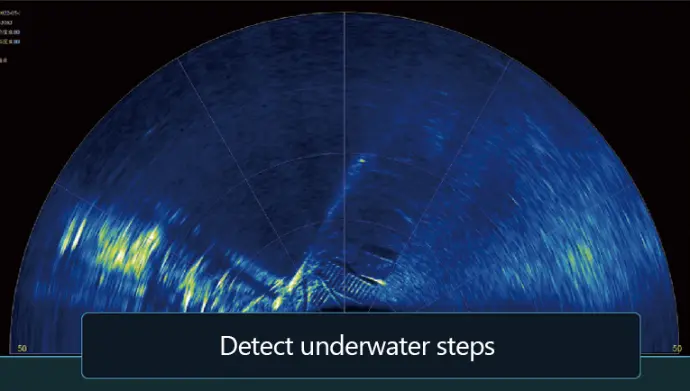

Clear & Precise, Fear No Low-Visibility Environments
FAQ
Standard rated depth is 300m. Housing options: 316 stainless steel or TC4 titanium alloy.
Recommended operating speed: 6 knots. Max support 10 knots. Image quality will slightly degrade at higher speed.
100Mbps Ethernet + RS422/485 sync port. 10-pin underwater connector integrates power, network and sync signal.
Yes. SDK, GUI software and protocol documents are supplied for easy integration with ROV/AUV/USV control system.
Prototype: 4 weeks. Bulk order: 6–12 weeks. Lead time negotiable based on order quantity.
OEM customization supported. Custom logo, interface modification available upon request.
