H-ADCP-600K

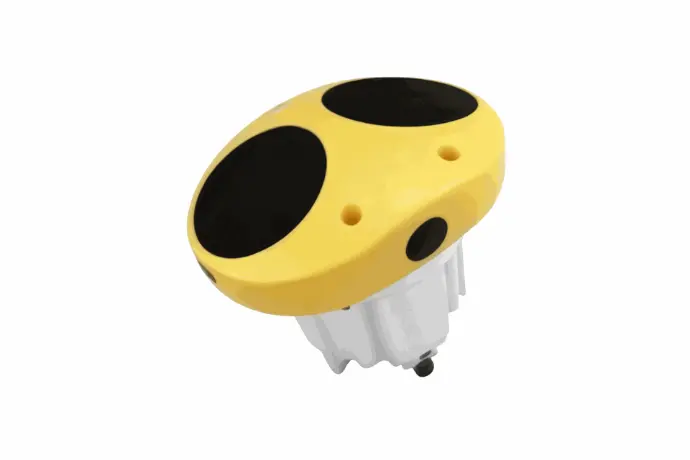

Horizontal Acoustic Doppler Current Profiler 600kHz
The H-ADCP-600K Horizontal Current Profiler is a newly launched online velocity and flow monitoring instrument. It calculates water flow velocity based on the acoustic Doppler principle, featuring compact footprint, lightweight design, superior flow measurement accuracy and long effective profiling range.
Available for shore-based or floating-platform mounting per project requirements, the unit is widely deployed in harbors, waterways, rivers, lakes and bridge pier zones. It performs real-time horizontal velocity profile monitoring and delivers high-precision, high-resolution datasets including profile flow velocity and discharge. Measured data is transmitted to designated platforms via radio transceiver or IP network to enable remote real-time monitoring of hydrological parameters.
The instrument supplies credible, high-quality raw data for flood early warning systems, water diversion projects, aquatic environmental monitoring, smart agriculture and smart water management initiatives.
Overview
H-ADCP 600kHz
Key Features
- Large Range：In broadband working mode, the H-ADCP-600K boasts a maximum horizontal profiling range of up to 120 m, covering diverse shallow and deep water monitoring scenarios.
- High Accuracy：Its velocity measurement accuracy reaches ±0.25% ± 0.2 cm/s, with 1 mm/s high velocity resolution for precise flow field data acquisition.
- Low Power Consumption：Equipped with advanced system power management technology, its sleep power consumption is reduced to the microwatt level, supporting long-term unattended operation.
- High Reliability：The instrument features mature industrial-grade hardware design and integrated multi-sensor structure, ensuring stable and dependable long-term field performance.
- Multiple Transmission Modes：It supports RS232, RS422, RS485, Ethernet and WIFI data transmission methods, enabling flexible wired and wireless connection and real-time data transmission.
Specifications
Applications
- Water Resources & Hydrology
- Environmental Monitoring Systems
- Research Institutes & Laboratories
- Channel and River Measurements
Explore the ADCP Series
The China-Sonar ADCP Series covers the full spectrum of applications from shallow rivers to the deep ocean. With models including the ADCP-1200K, ADCP-600K, and ADCP-300K, the series is tailored for river discharge monitoring, coastal and offshore surveys, and deep-sea research & engineering.
