DH-100 Digital Hydrophone
All-in-One Subsea Acoustic Sensing System with 32-bit ADC, IEEE 1588 Multi-Device Sync, and On-Board Edge Storage.
2. Wideband High-Speed Sampling
3. Sub-Microsecond IEEE 1588 Multi-Device Sync
4. Dual Ethernet Architecture & Edge Storage
5. Auto-Acquisition & Voltage Monitoring
6. Ultra-Low Power Consumption
| Frequency Bandwidth: 10 Hz to 100 kHz (Optional hydrophone up to 120 kHz) |
| Sampling Rate: 128 ksps (Configurable up to 512 ksps) |
| ADC Quantization: 32-bit |
| Configurable Gain: 0 dB, 20 dB, 30 dB, 40 dB, 50 dB |
| Data / Control Interface: 100 Mbps Ethernet (Fast Ethernet) |
| Time Synchronization: IEEE 1588 (PTP) / NTP |
| On-board Storage: MicroSD Card supported, up to 2TB |
| Operating Depth: 80 m (Deeper options available on request) |
| Input voltage: 12 VDC (with real-time voltage monitoring) |
| Power Consumption: 2.1 W (Typical) |
| Dimensions: Φ50 mm x H170mm |
| Weight in Air: 500 g |
| Housing Material: High-strength Nylon (Customizable) |
| Subsea Connector: Factory-standard 8-pin wet-mateable connector |
DH-100
Broadband Digital Hydrophone
The DH-100 Digital Hydrophone is a high-precision, low-power, integrated underwater acoustic acquisition system designed for demanding marine research, environmental monitoring, and industrial ocean sensing applications.
Light to 500 g
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
Competitive warranty coverage within the industry.
7x24 hours Service
We resolve after-sales issues via email, calls, video support and more.
Key Features
-
32-bit High Precision & Flexible Dynamic Range
Equipped with a 32-bit ADC and 5-stage configurable digital gain (0 dB to 50 dB), the DH-100 delivers exceptional dynamic range to capture both faint marine biological sounds and high-amplitude industrial noise without clipping.
- Wideband High-Speed Sampling
Supports sampling rates from 128 ksps up to 512 ksps with a native acoustic bandwidth of 10 Hz – 100 kHz (expandable up to 120 kHz), covering the full spectrum of ambient noise, marine mammal vocalizations, and high-frequency sonar signals.
- Sub-Microsecond IEEE 1588 Multi-Device Sync
Built-in support for IEEE 1588 (PTP) and NTP time synchronization enables seamless multi-hydrophone array positioning (TDOA) and localized sound source tracking.
- Dual Ethernet Architecture & Edge Storage
Features independent 100Mbps Ethernet interfaces for data streaming and system management. Supports up to 2TB local MicroSD card storage for fully autonomous, long-term underwater deployment.
- Auto-Acquisition & Voltage Monitoring
Designed for autonomous systems (AUVs/ROVs/Buoys), the DH-100 automatically starts recording/streaming upon power-on and continuously monitors supply voltage for reliable field deployment.
- Ultra-Low Power Consumption
Consuming only 2.1W at 12VDC, the DH-100 maximizes battery lifetime for autonomous subsea platforms and long-term buoy deployments.
Applications
🐋 Marine Mammal Monitoring & PAM
Tracking, localization, and population assessment of cetaceans (whales, dolphins) across broad frequency bands.
🚢 Ambient & Anthropogenic Underwater Noise Profiling
Real-time monitoring of maritime shipping noise, pile driving, offshore construction, and ocean ambient soundscape.
🌊 Oceanographic Research & Environmental Assessment
Subsea soundscape analysis, hydroacoustic surveys, and baseline acoustic data collection for EIA (Environmental Impact Assessment).
🤖 AUV / ROV / Subsea Glider Integration
Compact dimensions Φ50 mm x H170mm , 80m rating, and low power make it ideal for unmanned underwater vehicles.
🎯 Hydrophone Array & Source Localization
Utilizing IEEE 1588 synchronization to construct hydrophone line arrays, planar arrays, or distributed spatial tracking networks.

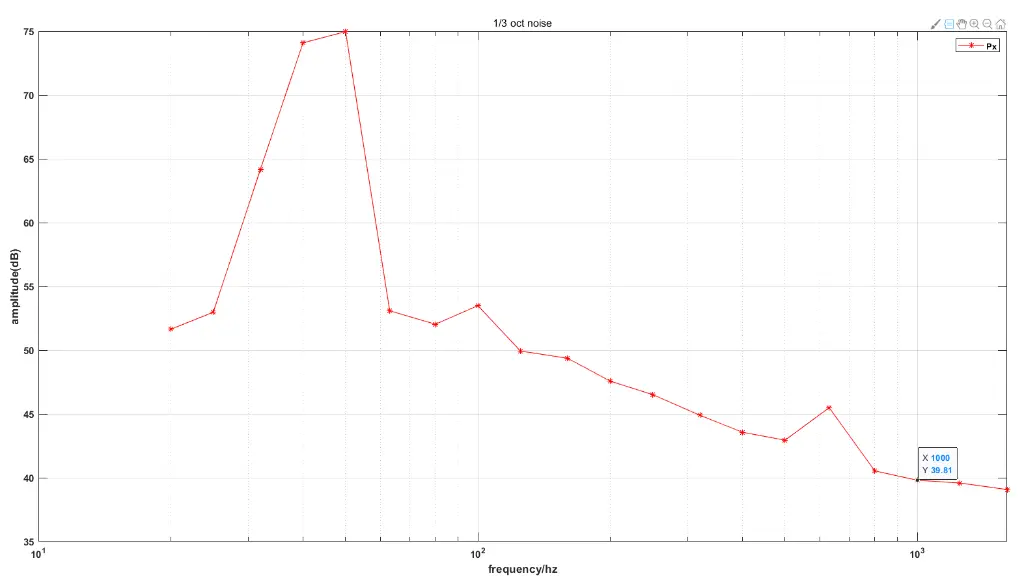

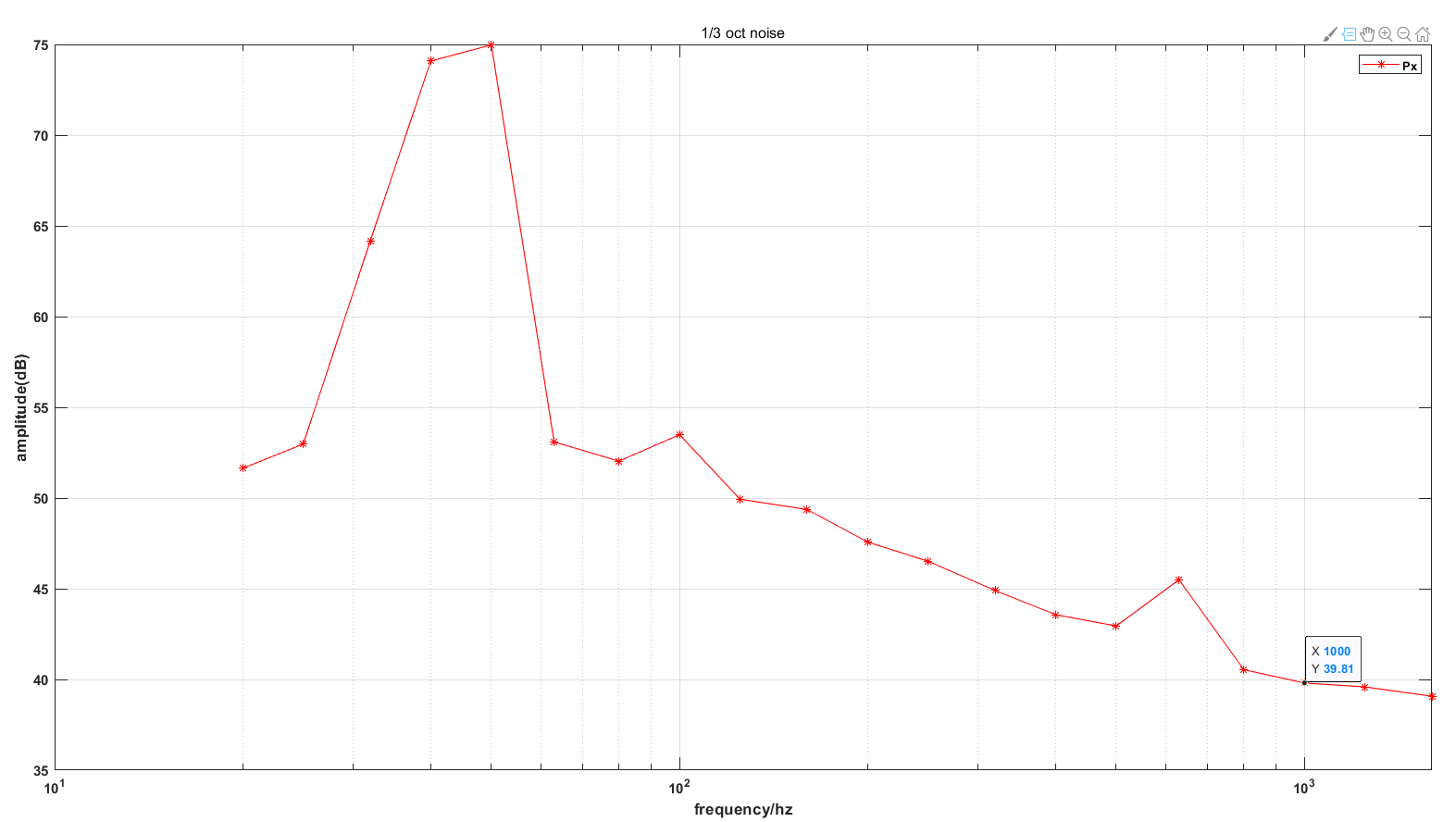

Noise Curve
Noise Curve - 13OCT with 50K Hydrophone
