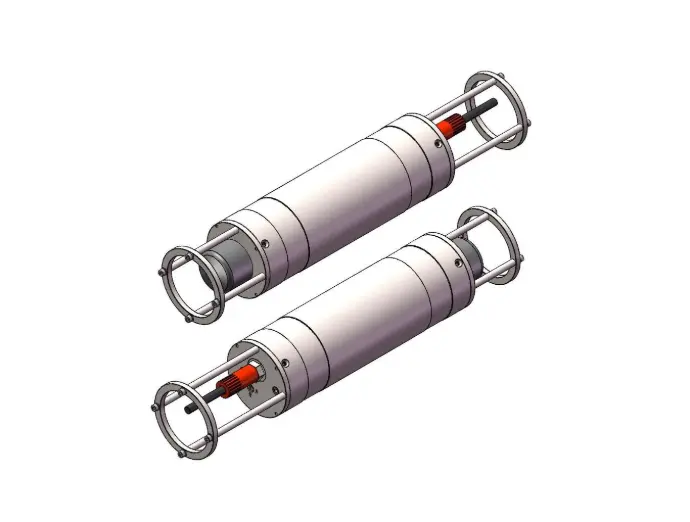

UAL-AT2030-L1500 Acoustic Transponder
1500 m Measurement Range
The UAL-AT2030-L1500 Acoustic Transponder Beacon is an acoustic device installed on underwater targets. It receives interrogation signals from underwater positioning systems or deck units and transmits acoustic responses.
It features compact size, portability, high integration, and high receiving sensitivity.
It can operate with UAL series positioning systems or deck units to achieve high-precision underwater acoustic ranging.
The beacon also supports underwater target status monitoring, battery voltage measurement, and target depth measurement. These parameters can be transmitted to the UAL series positioning system or deck unit via acoustic commands, enabling underwater acoustic remote control and diagnostic functions.
UAL-AT2030-L1500
Key Features:
- After deployment underwater, the transponder automatically enters listening mode, monitoring interrogation signals and responding to qualified signals.
- Supports interrogation-response operation and acoustic command reception.
- Supports multiple address coding.
- Supports depth encoding function.
- Built-in battery enables long-duration underwater standby operation.
Overview
Specifications
Transfer Parameters

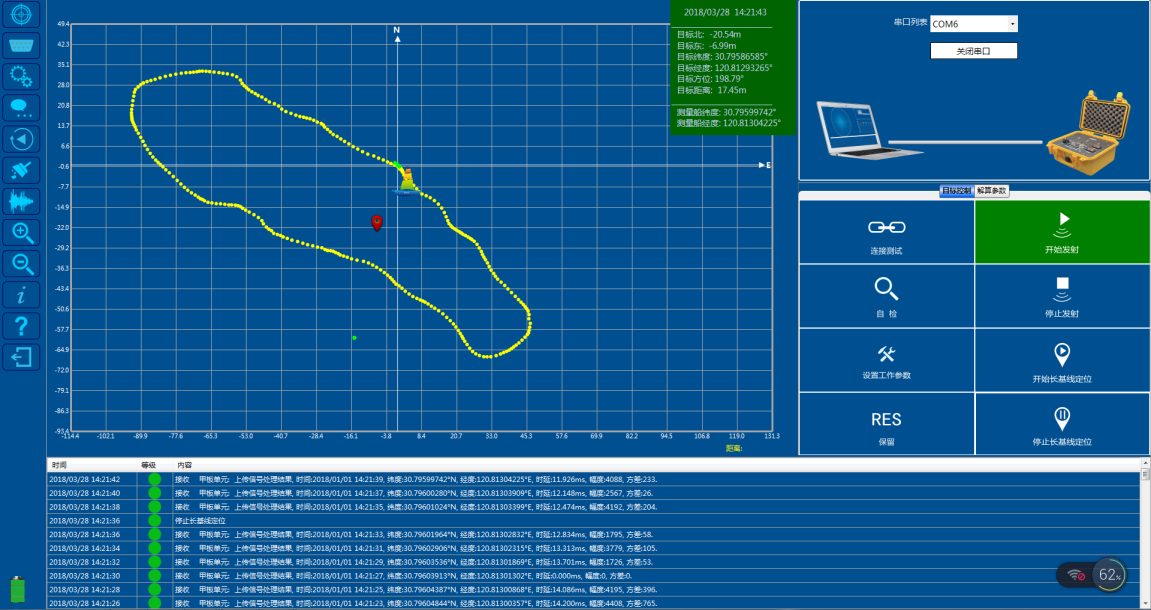

The system is equipped with the latest control software, allowing configuration of beacon transmission parameters including:
- Signal transmission mode (single frequency, frequency modulation, etc.)
- Pulse width
- Transmission delay
- Beacon address
- Beacon status monitoring
The UAL-AT2030-L1500 has undergone extensive field testing and operational deployment. Its reliability and stability have been thoroughly verified and widely trusted by users.
Applications
- Underwater target tracking
- Underwater target status monitoring
- Offshore engineering construction
- Marine geological surveys
- Subsea engineering positioning
Acoustic Transponder Working Principle
An Acoustic Transponder is a core component of underwater acoustic positioning systems, widely used in LBL (Long Baseline) and USBL positioning systems for precise subsea tracking and navigation.
The system operates based on a reliable interrogation-response mechanism:
- A vessel-mounted or subsea system transmits an acoustic interrogation signal.
- The underwater acoustic transponder receives and identifies the signal using a high-sensitivity hydrophone.
- Upon recognition, it automatically emits a coded reply signal at a predefined frequency.
- By measuring the signal travel time, the system accurately determines distance, enabling real-time underwater positioning and tracking.
In addition to standard transponder mode, the device can function as a subsea beacon, periodically transmitting signals for continuous detection in ROV operations, AUV navigation, and offshore survey applications.
The UAL-AT2030-L1500 Acoustic Transponder is engineered for long-range acoustic ranging, fast response, and stable performance in harsh marine environments, making it an ideal solution for offshore engineering, hydrographic survey, and subsea positioning systems.
