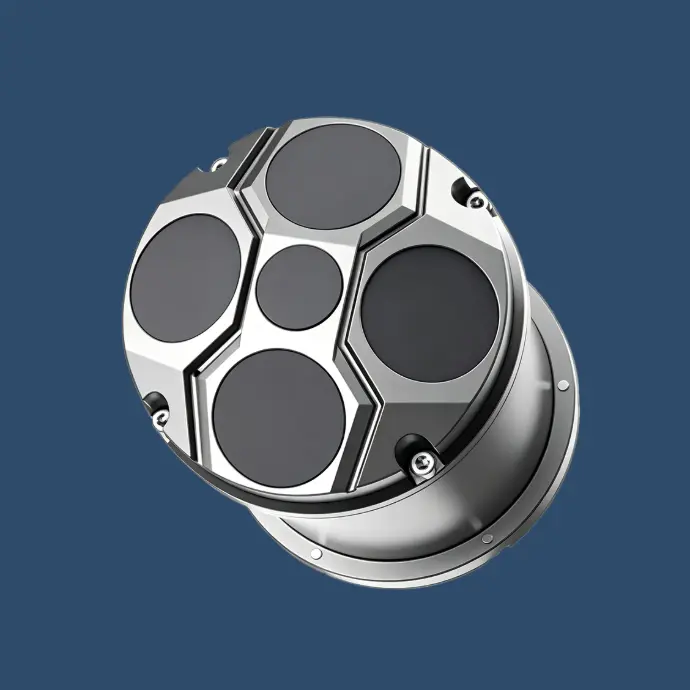

ADCP-1200K-DR Acoustic Doppler Current Profiler
The ADCP-1200K Acoustic Doppler Current Profiler (ADCP) adopts piston array technology and operates based on the acoustic Doppler principle. Equipped with an additional central echo-sounding beam, it provides real-time online output of accurate data including flow velocity, discharge, water level, and water temperature.It delivers excellent performance especially in shallow river channels and low-flow velocity measurement environments, making it a high-quality, high-performance and cost-effective ADCP solution.
It provides accurate and reliable data support services for hydrological surveys, flood warning systems, water regulation projects, water environment monitoring, smart agriculture, smart water maagement and other fields.
| Operating Frequence: 1200kHz |
| Beam Configuration: 4 Beams / 5 Beams |
| Center Beam Frequency: 400kHz |
| Current velocity range: ±10m/s (default); ±20m/s (Max.) |
| Current Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Current velocity resolution: 1mm/s |
| Depth Cell Range: 0.04~2m |
| Number of Depth Cells: 1~255 |
| Pulse frequency: 1~2Hz |
| High-Precision Mode Range: 22m |
| Max. Range: 30m |
| Other configurable function: Bottom tracking |
| Bottom Tracking Depth Range: 0.2~45m |
| Bottom Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Input voltage: 12~36V |
| Average Power Consumption: 8W |
| Communication Protocol (selectable): Ethernet, RS485, RS232 |
| Internal Storage Capacity: Standard 16GB |
| Dimensions: Φ160mm × 200mm |
| Weight: 5kg |
| Optional: Wave Measurement Function (5‑beam) |
ADCP-1200k-DR
Quietly brilliant,
Better Price
Our mission is to create a shared plan for exploring and
safeguarding every corner of the waters.
Light to 5 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Flood early warning
Reservoir & dam
Pollutant discharge
Agricultural irrigation
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample Laboratory Verification
Sufficient Maritime Tests
High-quality Software Development
Explore the ADCP Series
The China-Sonar ADCP Series covers the full spectrum of applications from shallow rivers to the deep ocean. With models including the ADCP-1200K, ADCP-600K, ADCP-300K,ADCP-150K,ADCP-75K,ADCP-38K,H-ADCP-600K,H-ADCP-300K,and H-ADCP-150K, the series is tailored for river discharge monitoring, coastal and offshore surveys, and deep-sea research & engineering.
