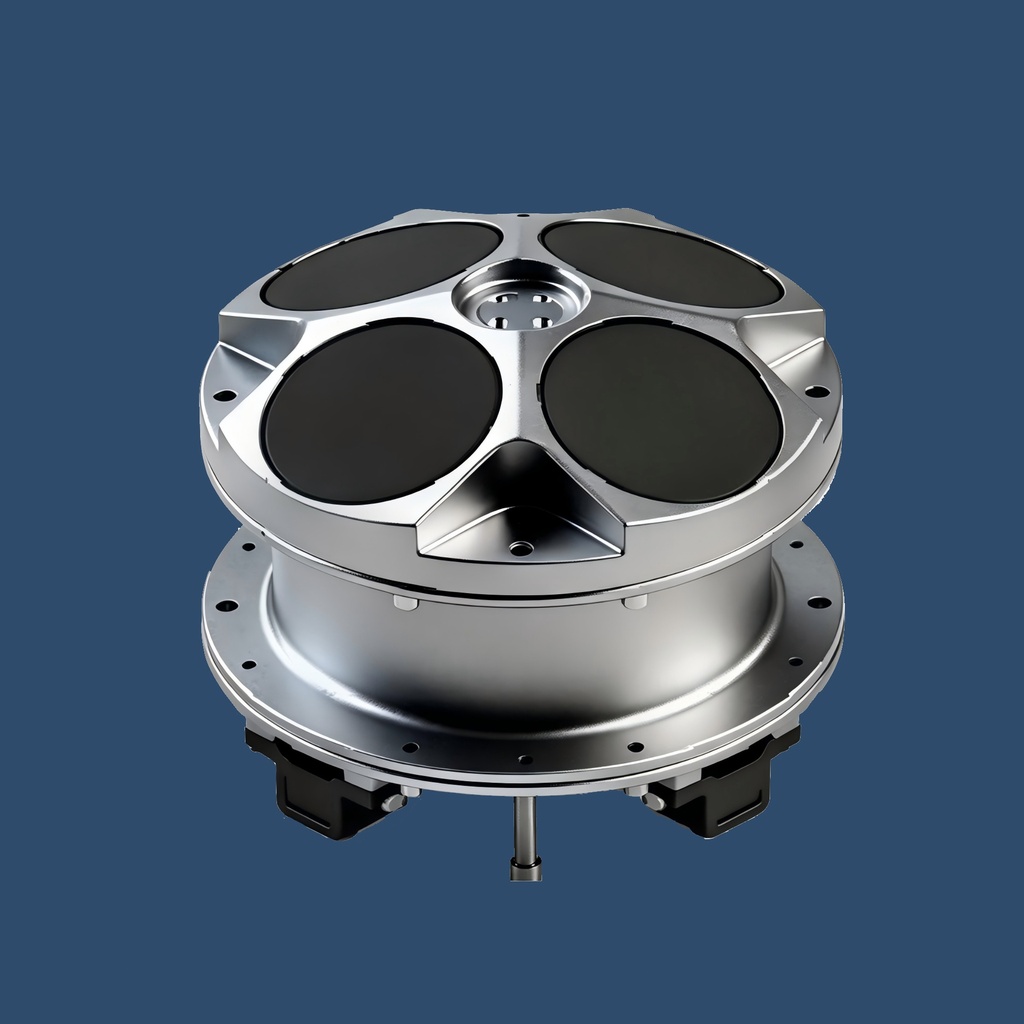

ADCP-300K-DR Acoustic Doppler Current Profiler
The ADCP-300K Acoustic Doppler Current Profiler (ADCP) adopts piston array technology. It can measure current velocity profiles, water depth and cross-section discharge within a maximum depth of 150 meters. The unit can be quickly installed on survey vessels and trimarans for underway observation.
It supports connection to various auxiliary devices such as compasses, GNSS receivers and radio stations to realize remote telemetry and data transmission. Based on the acoustic Doppler principle, the instrument outputs real-time and accurate data including current velocity, discharge, water level and water temperature. It provides reliable data support for hydrological surveys, flood early warning systems, water diversion projects, water environment monitoring, smart agriculture, smart water services and other fields.
| Operating Mode: 300kHz |
| Beam Configuration: 4 Beams / 5 Beams |
| Center Beam Frequency: phased 400kHz |
| Current velocity range: ±10m/s (default); ±20m/s (Max.) |
| Current Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Current velocity resolution: 1mm/s |
| Depth Cell Range: 1~8m |
| Number of Depth Cells: 1~255 |
| Pulse frequency: 1Hz |
| High-Precision Mode Range: 120m |
| Max. Range: 150m |
| Other configurable function: Bottom tracking |
| Bottom Tracking Depth Range: 2~300m |
| Bottom Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Input voltage: 18~36V |
| Average Power Consumption: 7W |
| Communication Protocol (selectable): Ethernet, RS422, RS232 |
| Internal Storage Capacity: Standard 16GB |
| Dimensions: Φ250mm × 170mm |
| Weight: 15kg |
ADCP-300k-SC
Quietly brilliant,
Better Price
Our mission is to create a shared plan for exploring and
safeguarding every corner of the waters.
Light to 15 kg
Original Manufactor
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Ocean Observations
Oceanographic Research Vessels
Autonomous Underwater Vehicles(AUV)
Deep and Mid-Water Depth Moorings
Deepwater oil and gas
Renewable Energy
Cable and Pipe Laying Vessel
Fisheries andAquaculture
Coastal and Ocean Engineering
Navigation Safety Management
Academic Oceanography Research
Environmental Management
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample Laboratory Verification
Sufficient Maritime Tests
High-quality Software Development
Explore the ADCP Series
The China-Sonar ADCP Series covers the full spectrum of applications from shallow rivers to the deep ocean. With models including the ADCP-1200K, ADCP-600K, ADCP-300K,ADCP-150K,ADCP-75K,ADCP-38K,H-ADCP-600K,H-ADCP-300K,and H-ADCP-150K, the series is tailored for river discharge monitoring, coastal and offshore surveys, and deep-sea research & engineering.
