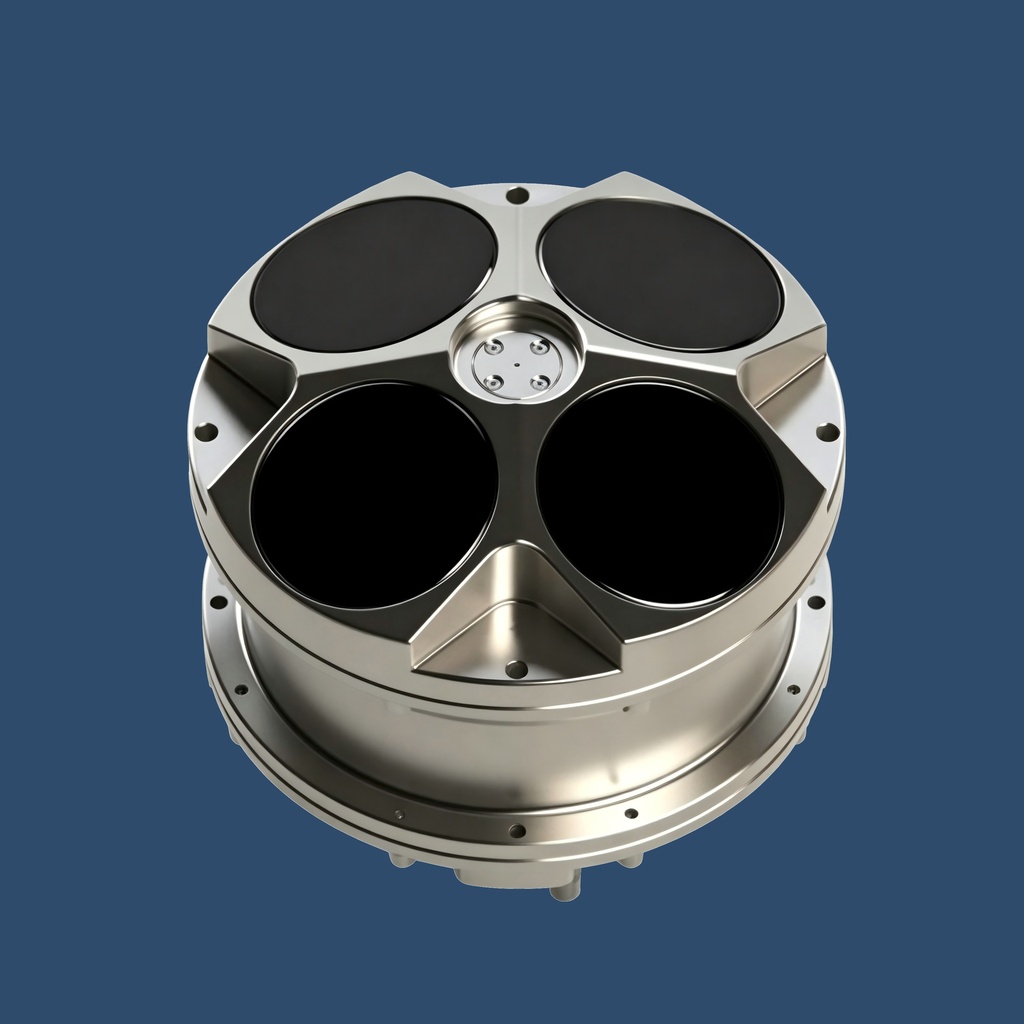

ADCP-300K-SC Acoustic Doppler Current Profiler
The ADCP-300K-SC Acoustic Doppler Current Profiler (ADCP) adopts a compact design integrating the electronics and acoustic transducer array. All standard hardware modules utilize the latest miniaturized, low-power electronic technologies. The core stack is directly connected and fixed within the electronics housing. The acoustic transducer array features a conventional circular piston configuration, available in 4-beam or 5-beam variants.
| Transducer frequency: 300kHz |
| Beam Configuration: Phased 4 beams |
| pressure-resistant depth: 1000m (standard), customizable |
| Current velocity range: ±10m/s (default); ±20m/s (Max.) |
| Current velocity precision: ±0.25%V ±0.2cm/s |
| Current velocity resolution: 1mm/s |
| Layer size: 1~8m |
| Number of layers: 1~255 |
| Pulse frequency: 1Hz |
| High precision mode range: 120m |
| Maximum Range: 150m |
| Input voltage: 18 ~ 36V |
| Average Power Consumption: 7W |
| Dormant state power consumption: 1mW |
| Electronics (Battery capacity): 1600Wh by default, customizable |
| Communication interface (selectable): Ethernet, RS485, RS232 |
| Storage capacity: Standard 16GB |
| Dimensions: Φ250mm × 170mm |
| Weight: 19kg |
ADCP-300k-SC
Quietly brilliant,
Better Price
Our mission is to create a shared plan
for saving the planet’s most exceptional wild places.
Light to 19 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Ocean Observations
Oceanographic Research Vessels![]()
Autonomous Underwater Vehicles(AUV)
Deep and Mid-Water Depth Moorings
Deepwater oil and gas
Re![]()
newable Energy
Ca![]()
ble and Pipe Laying Vessel
Fisheries andAquaculture
Coastal and Ocean Engineering
Navigation Safety Management
Academic Oceanography Research
En![]()
vironmental Management
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample
Labo![]()
ratory Verification
Sufficient
Maritime Tests
High-quality Software Development
Explore the ADCP Series
The China-Sonar ADCP Series covers the full spectrum of applications from shallow rivers to the deep ocean. With models including the ADCP-1200K, ADCP-600K, ADCP-300K,ADCP-150K,ADCP-75K,ADCP-38K,H-ADCP-600K,H-ADCP-300K,and H-ADCP-150K, the series is tailored for river discharge monitoring, coastal and offshore surveys, and deep-sea research & engineering.
