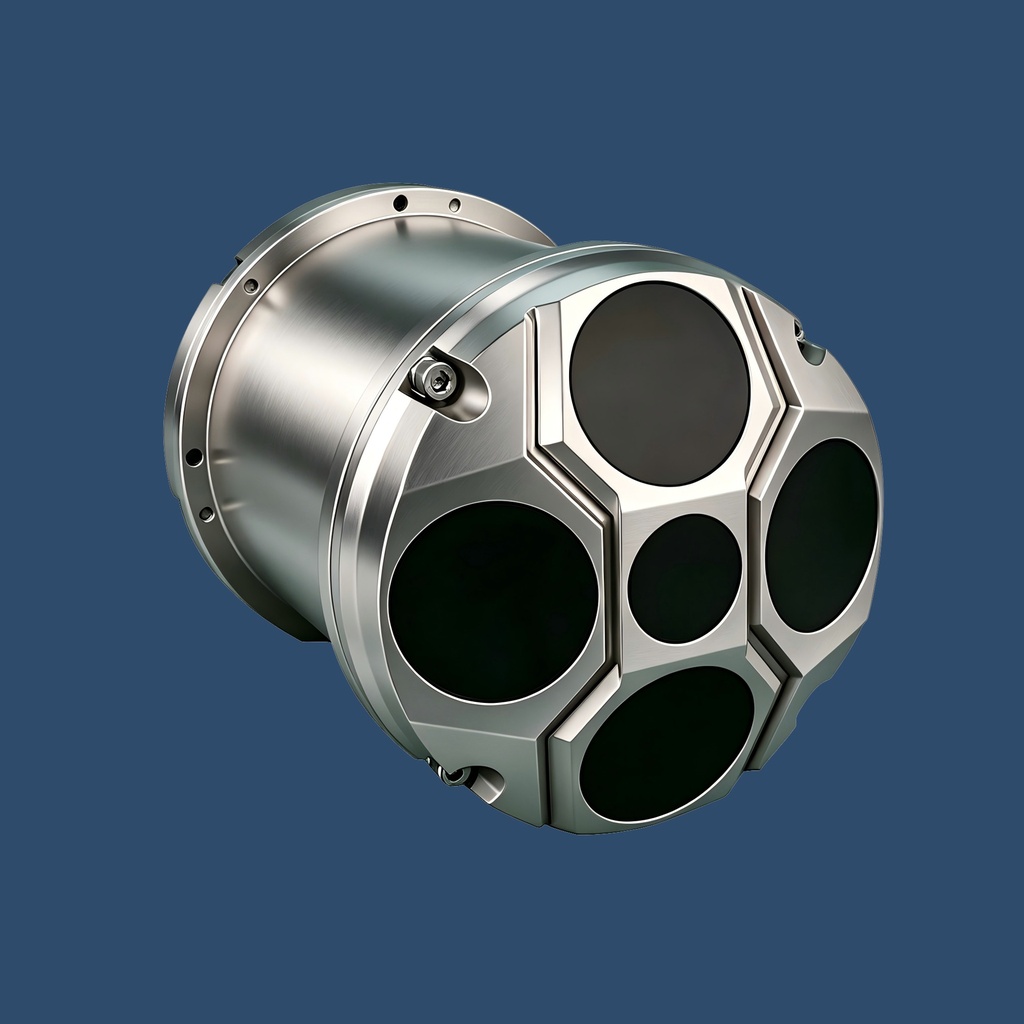

ADCP-600K-DR Acoustic Doppler Current Profiler
ADCP-600K-DR Acoustic Doppler Current Profiler(ADCP) uses piston type transducer array and has a maximum performance range of 75m in current profiling, depth and discharge measurement.
It can be fast installed on survey vessels or catamarans for moving-boat measurement. It has interfaces for third party compass, GNSS and radio station for remote measurement and transmission. This product provides accurate and stable data support for flood warning systems, water transfer projects, water environment monitoring, smart agriculture, smart water services, etc.
| Transducer frequency: 600KHz |
| Beam Configuration: 4 Beams / 5 Beams |
| Center Beam Frequency: 400kHz |
| Current velocity range: ±10m/s (default); ±20m/s (Max.) |
| Current Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Current velocity resolution: 1mm/s |
| Depth Cell Range: 0.08~4m |
| Number of Depth Cells: 1~255 |
| Pulse frequency: 1~2Hz |
| High-Precision Mode Range: 65m |
| Max. Range: 75m |
| Other configurable function: Bottom tracking |
| Bottom Tracking Depth Range: 0.2~120m |
| Bottom Velocity Accuracy: ±0.25%V ±0.2cm/s |
| Depth Sounding Beam Range: 0.2~160m |
| Input voltage: 12~36V |
| Average Power Consumption: 8W |
| Communication Protocol (selectable): Ethernet, RS485, RS232 |
| Internal Storage Capacity: Standard 16GB |
| Dimensions: Φ160mm × 200mm |
| Weight: 5kg |
| Optional: Wave Measurement Function (5‑beam) |
ADCP-600k-DR
Quietly brilliant,
Better Price
Our mission is to create a shared plan for exploring and
safeguarding every corner of the waters.
Light to 5 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Ocean Observations
Oceanographic Research Vessels
Autonomous Underwater Vehicles(AUV)
Deep and Mid-Water Depth Moorings
Deepwater oil and gas
Renewable Energy
Cable and Pipe Laying Vessel
Fisheries andAquaculture
Coastal and Ocean Engineering
Navigation Safety Management
Academic Oceanography Research
Environmental Management
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample Laboratory Verification
Sufficient
Maritime Tests
High-quality Software Development
Explore the ADCP Series
The China-Sonar ADCP Series covers the full spectrum of applications from shallow rivers to the deep ocean. With models including the ADCP-1200K, ADCP-600K, ADCP-300K,ADCP-150K,ADCP-75K,ADCP-38K,H-ADCP-600K,H-ADCP-300K,and H-ADCP-150K, the series is tailored for river discharge monitoring, coastal and offshore surveys, and deep-sea research & engineering.
