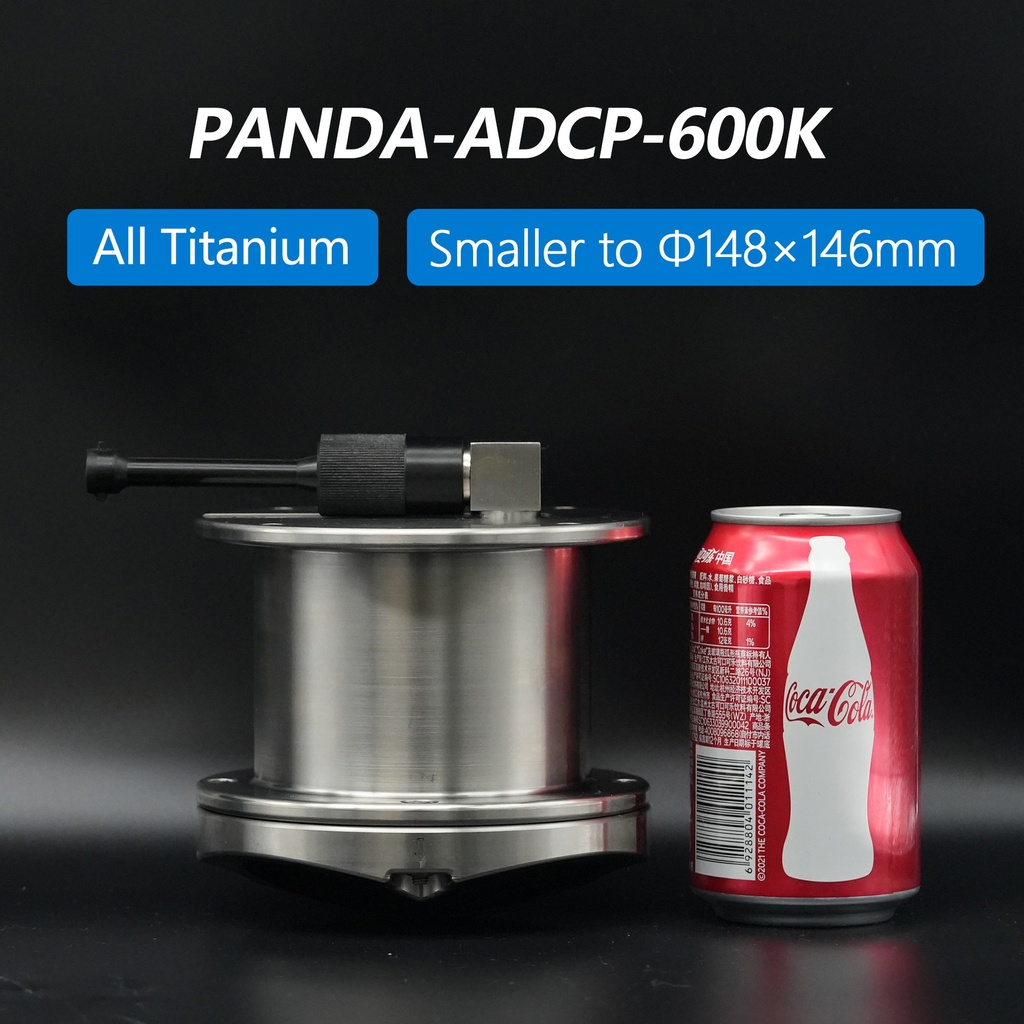

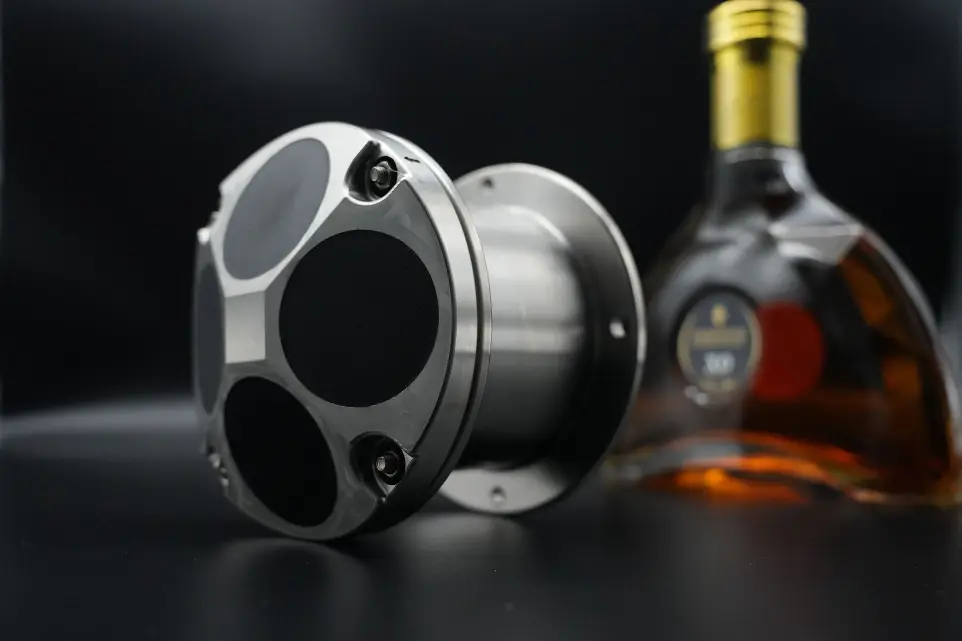

PandaADCP-DR-600K
The PandaADCP-DR-600K series ADCPs are specifically designed for applications of real-time current profiling with measurement range up to 70m.
Smaller,lighter and more reliable.
| Brand: PandaADCP |
| Batteries: No Batteries |
| Working Frequence: 600kHz |
| Operating Mode: Direct-Reading |
| Water Profiling Range (Broadband / Narrowband ): 55m/70m |
| Bottom Track Range: 110m |
| Velocity Accuracy: ±0.3%±3mm/s |
| Velocity Resolution: 1mm/s |
| Velocity Range: ±5.0 m/s (Default); ±20.0 m/s (Maximum) |
| Number of Depth Cells: 1-255 |
| Depth Cell Size(High Pricision Mode): 0.5-4m |
| Depth Cell Size(Long Range Mode): 4m |
| Ping Rate: 2Hz(typical) |
| Echo Intensity Dynamic Range: 100dB |
| Echo Intensity Precision: ±1.5dB |
| Standard Profiling Modes: High resolution water profiling,Fast sampling |
| Beam Angle: 20° |
| Beam Width: 3.5° |
| Beam Configuration: 4-beams,convex |
| Communications: RS-232 or RS-422 |
| Sensor（Water Temperature ）: Range: -5° - 45°C, Accuracy: ±0.1°C |
| Sensor (Pressure): Range: acording to depth rate, Accuracy: ±0.25% Range |
| Sensor (Tilt）: Range: Roll ±180° | Pitch ±90°, Accuracy: < 0.1° RMS, Resolution: 0.01° |
| Sensor (Compass ): Range: 0°-360°, Accuracy: 2° RMS, Resolution: 0.01° |
| Operating Temperature: -5° to 45° C |
| Storage Temperature (without batteries): -30° to 60° C |
PandaADCP 600k series
Quietly brilliant,
Better Price
Our mission is to create a shared plan
for saving the planet’s most exceptional wild places.
Light to 1.8 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are ADCPs Used?
Ocean Observations
Oceanographic Research Vessels![]()
Autonomous Underwater Vehicles(AUV)

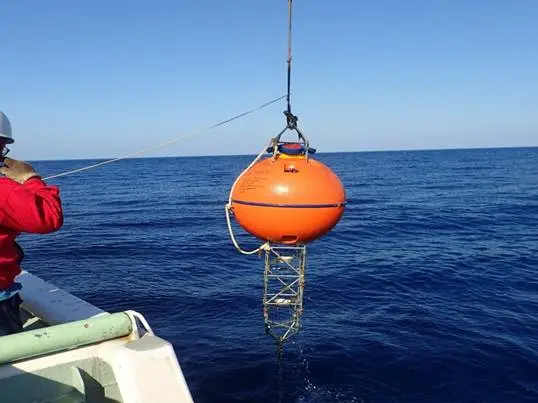

Deep and Mid-Water Depth Moorings
Deepwater oil and gas
Re![]()
newable Energy
Ca![]()
ble and Pipe Laying Vessel
Fisheries andAquaculture
Coastal and Ocean Engineering
Navigation Safety Management
Academic Oceanography Research
En![]()
vironmental Management
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample
Labo![]()
ratory Verification
Sufficient
Maritime Tests
High-quality Software Development
Pick your Perfect ADCP Lightly
Less is More, Turn complexity into simplicity.
PandaADCP-DR-600KHz
$ 16800 .00
The price is as low as-
Max Profiling Range: 55m/70m
-
Max Bottom Track Range: 110m
-
Velocity Accuracy: ±0.3%±3mm/s
-
Velocity Range: ±5.0 m/s to ±20.0 m/s
- Ping Rate: 2Hz(typical)
- Depth Rating: 200m (optional 1000m, 3000m 6000 m)
- Standard Sensors: Temperature, Tilt, Compass
- Communications: RS-232 or RS-422
- Weight(In air):light to 1.8 kg
PandaADCP-DR-300K
$ 21800 .00
The price is as low as- Max Profiling Range: 120m/160m
-
Max Bottom Track Range: 220m
-
Velocity Accuracy: ±0.5%±5mm/s
-
Velocity Range: ±5.0 m/s to ±20.0 m/s
- Ping Rate: 2Hz(typical)
- Depth Rating: 200m (optional 1000m, 3000m 6000 m)
- Standard Sensors: Temperature, Tilt, Compass
- Communications: RS-232 or RS-422
- Weight(In air):light to 3.8 kg
PandaADCP-DR-75K
$ 58800 .00
The price is as low as- Max Profiling Range: 550m/650m
-
Max Bottom Track Range: 1000m
-
Velocity Accuracy: ±1.0%±5mm/s
-
Velocity Range: ±5.0 m/s to ±20.0 m/s
- Ping Rate: 2Hz(typical)
- Depth Rating: 200m (optional 1000m, 3000m 6000 m)
- Standard Sensors: Temperature, Tilt, Compass
- Communications: RS-232 or RS-422
- Weight(In air):light to 52 kg

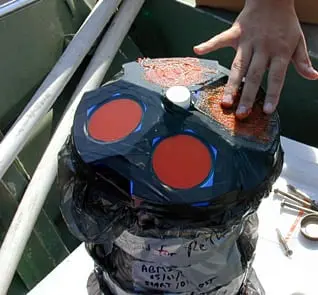

Give your old ADCP a second chance.
Do you still have an old ADCP staying in a corner of the warehouse for reasons such as damage, scrapping or others?Why not reduce the waste? It’s worth it.
